Ferromatik Maxima MM 1000-4880 Injection Moulding Machine

Show in original language

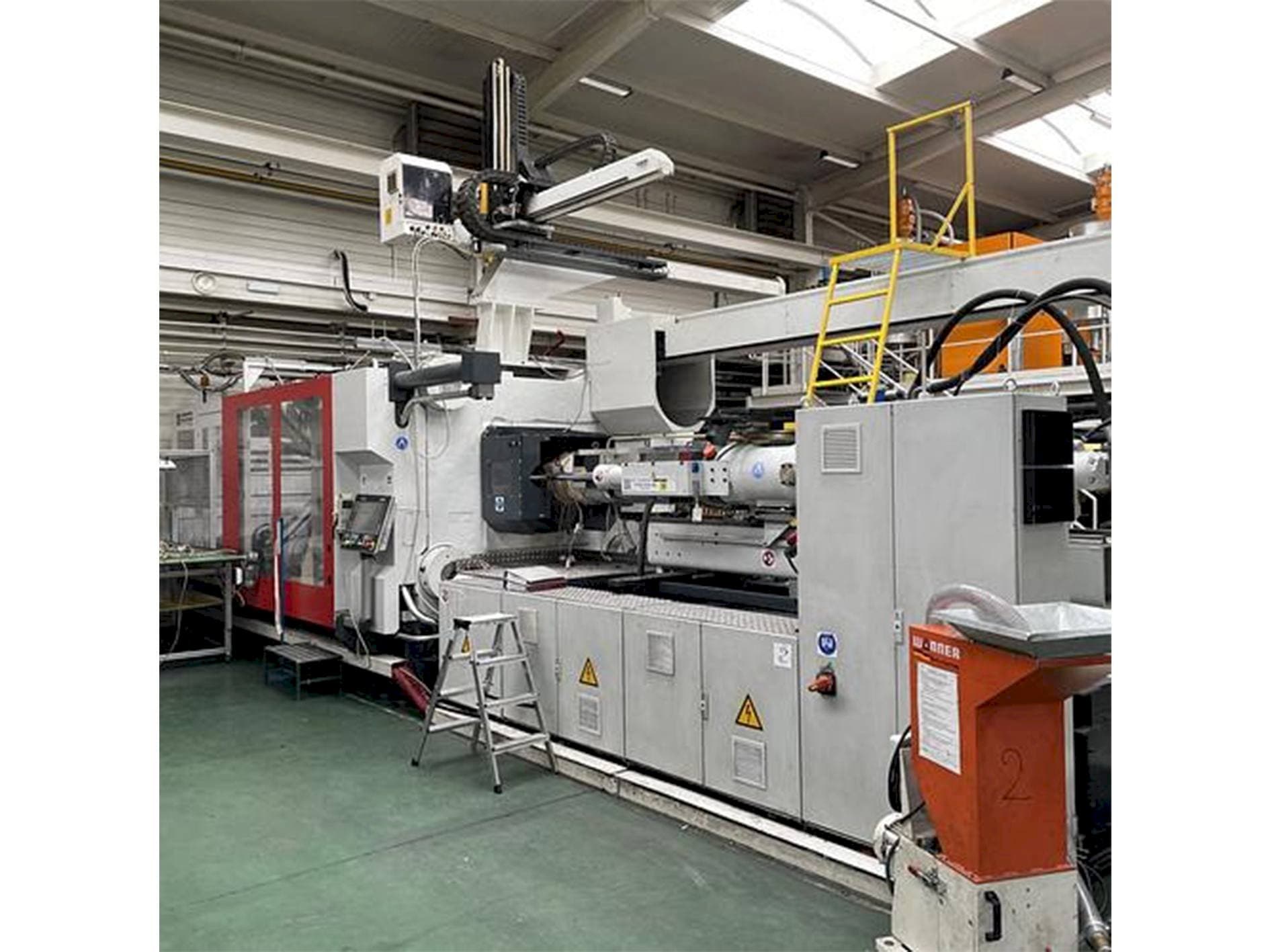

This Ferromatik Maxima MM 1000-4880 Injection Moulding Machine was manufactured in the year 2011 in Germany. This machine has been working for 69000 hours. It incorporates a screw diameter 90 mm, an injection pressure 2300 bar and a clamping force 10000 kN. Machine in very good condition and regularly maintained.

Overview

brand: FERROMATIK
year: 2011
MODEL: Maxima MM 1000-4880
production hours: 69000
application type: Injection Moulding
Location: Slovakia
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK Maxima MM 1000-4880

General Data

Measurements width: 11800 mm
Measurements depth: 3300 mm
Measurements height: 2600 mm
Machine weight: 57000 kg

Injection Unit

Screw diameter: 90 mm
Shot weight: 2407 g/PS
Stroke volume: 2799 cm3 CM³
Injection pressure: 2300 bar

Clamping unit

Clamping force: 10000 kN
Max open daylight: 1900 mm
Distance between bars: 1550 x 1200 mm
Size of mold platens: 2000x1605 mm
Ejector stroke: 300 mm
Ejector force for / back: 200 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Opening force 40 ton
- - Mosaic control
- - Core pulls 2 + 2 ng10
- - Removable tie bar - extra option
- - Water circuits: 12+12
- - 16 hotrunner
- - Apex robot
Qualitative Machine Benefits:
- - Very good condition, regularly maintained
- - Only pp material used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
