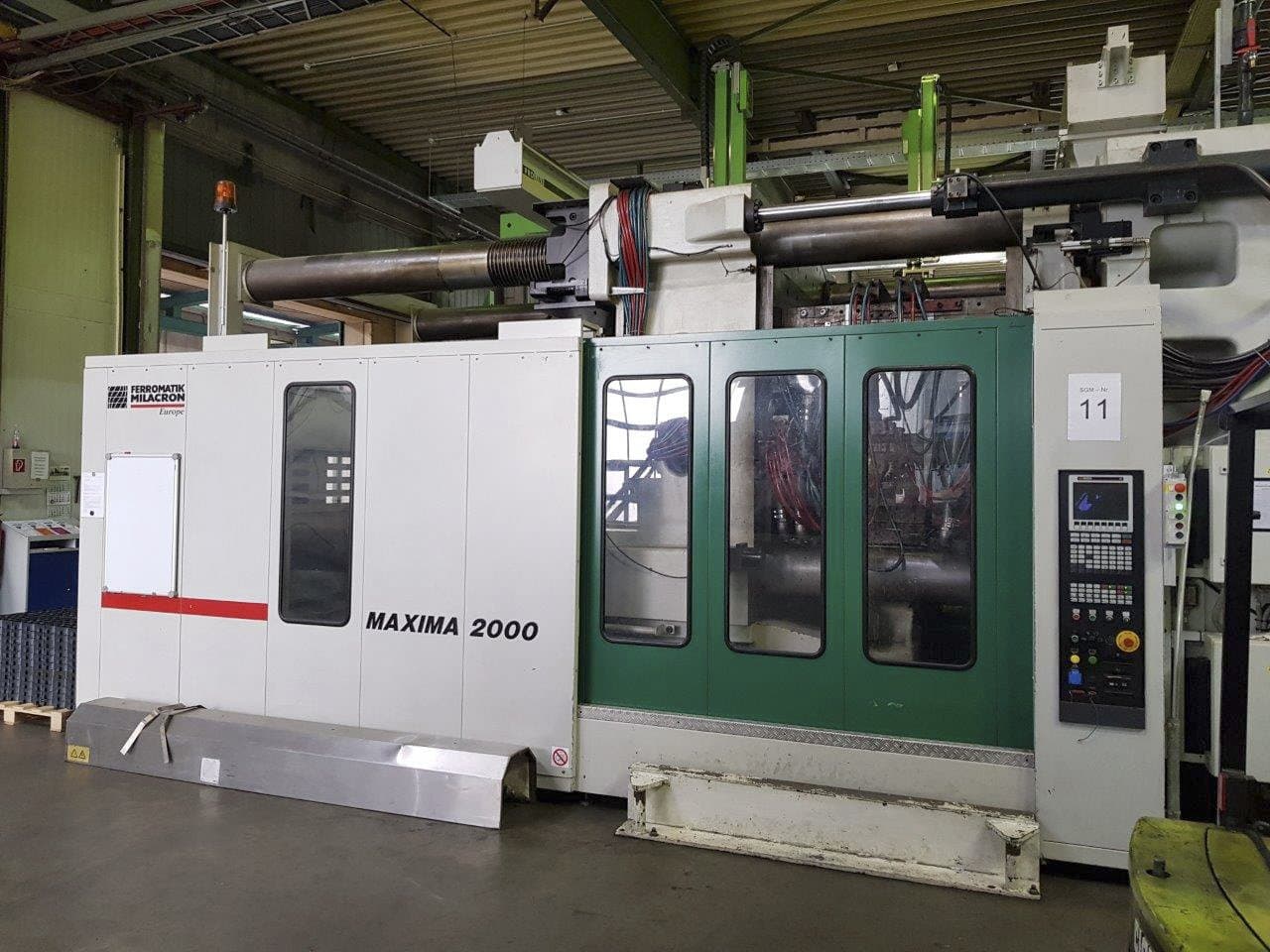

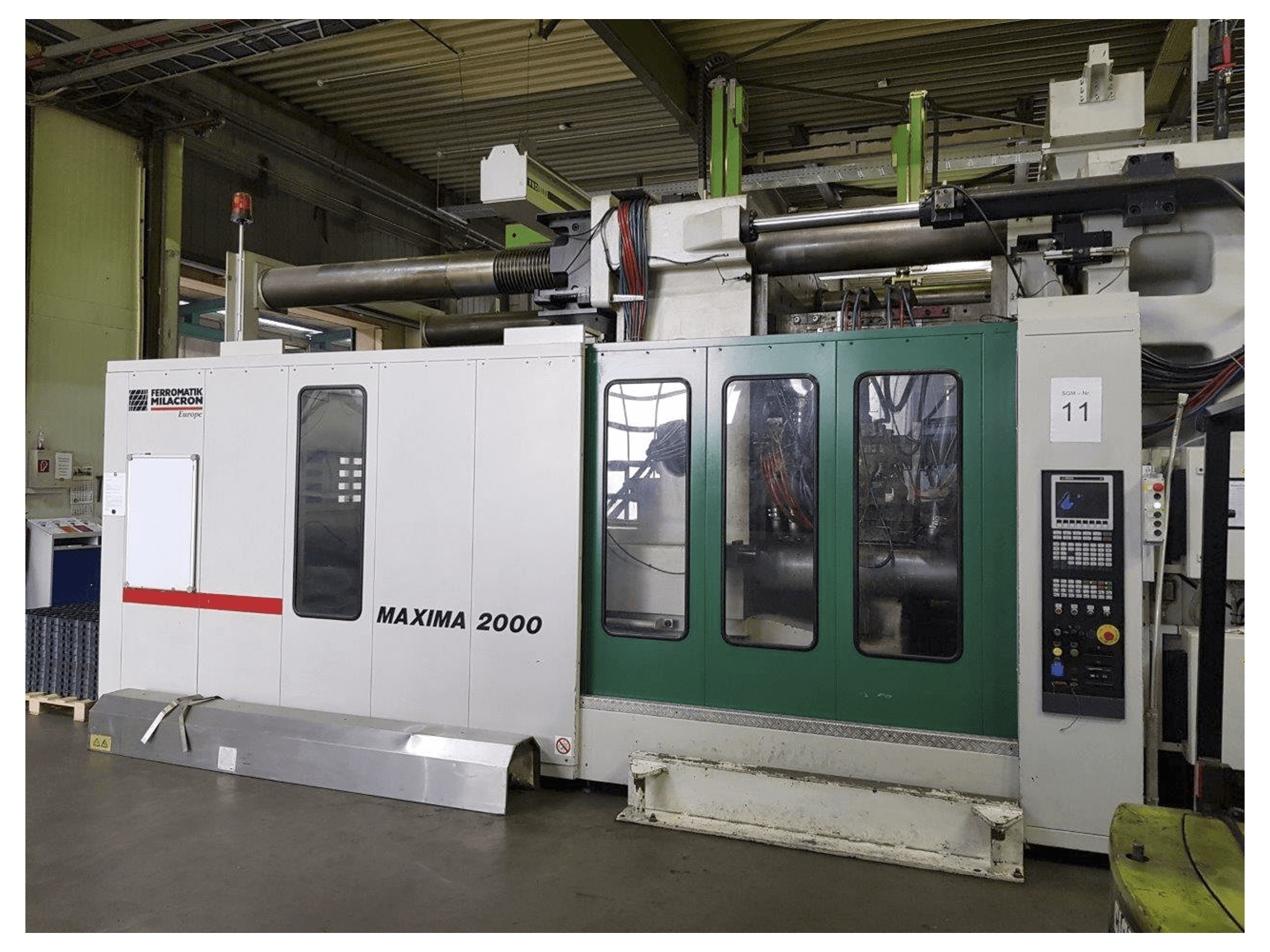

FERROMATIK MILACRON MM 2000 Injection Moulding Machine

Show in original language

This FERROMATIK MM 2000 Injection Moulding Machine was manufactured in 2001 in Germany and has a working record of 101381 production hours ever since. Operated through an IQT model of control unit (by FERROMATIK MILACRON), this solid-built machine stands out for its high clamping force and allows to work with bigger mold platens. In the past, it has worked mainly with polypropylene and polyethylene. As additional equipment, two Cramer handling units are included.

Overview

brand: FERROMATIK
year: 2001
MODEL: MM 2000
production hours: 101381
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK MM 2000

General Data

Measurements width: 13900 mm
Measurements depth: 4400 mm
Measurements height: 3600 mm
Machine weight: 134000 kg
Type of drive: Hydraulic
Closure: Hydraulic

Injection Unit

Screw diameter: 160 mm
Shot weight: 13832 g/PS
Stroke volume: 16085 cm³
Injection pressure: 1455 bar
Screw speed: 120 1/min
Heating capacity: 91 kW
Adjustable heating zones: 5
Nozzle pressure: 120 kN

Clamping unit

Clamping force: 19600 kN
Opening stroke: 881 mm
Max open daylight: 3600 mm
Distance between bars: 1830 x 1600 mm
Size of mold platens: 2600 x 2400 mm
Ejector stroke: 400 mm
Ejector force for / back: 355 kN

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 450 kVA
Oil tank: 2660 L
Internal cooling: Yes

Additional equipment

- Cramer part handling system (1 armed)
- Cramer part handling system (2 armed)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
