- FFZ 30-60 Milling Machine
Show in original language

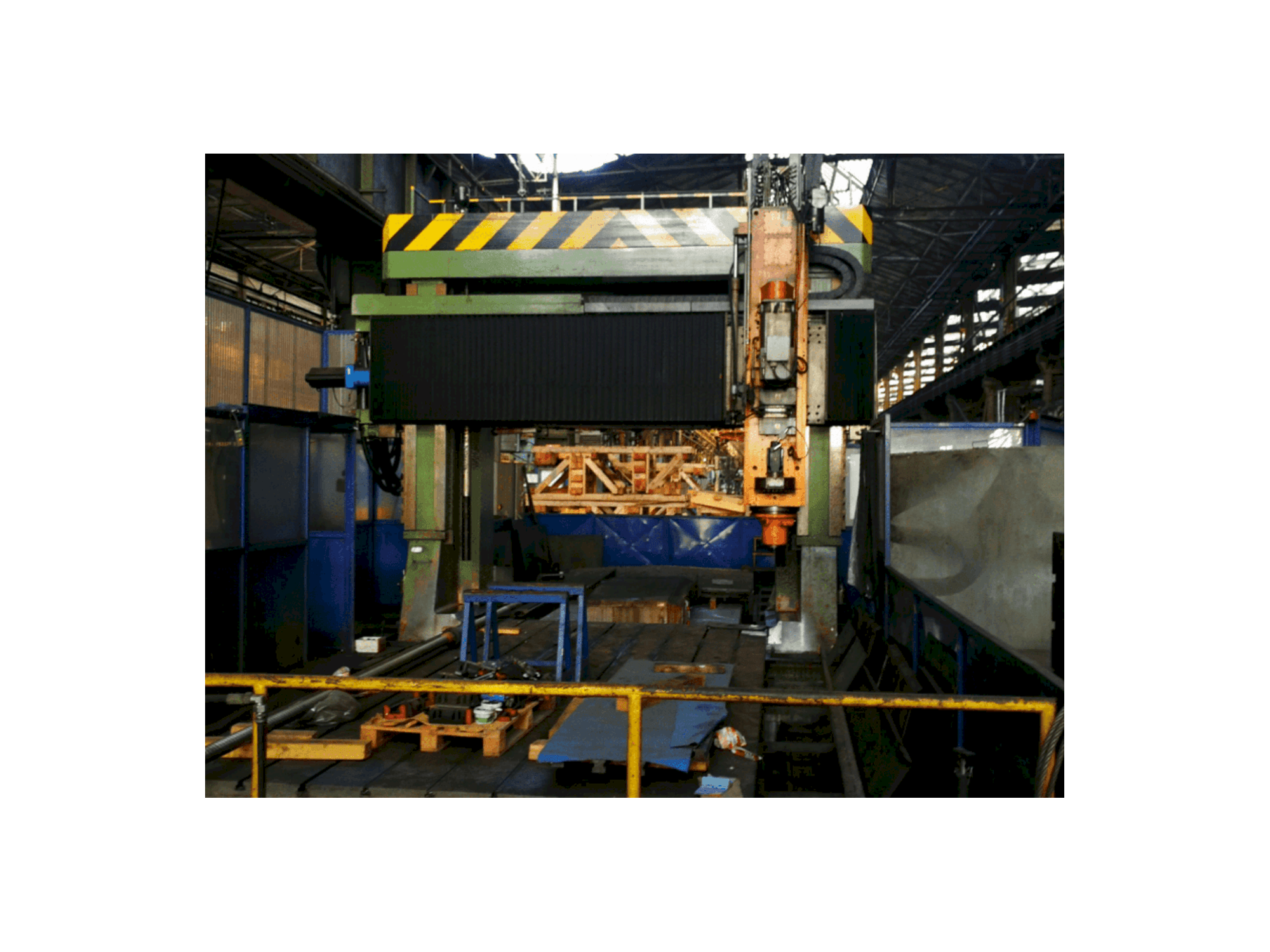

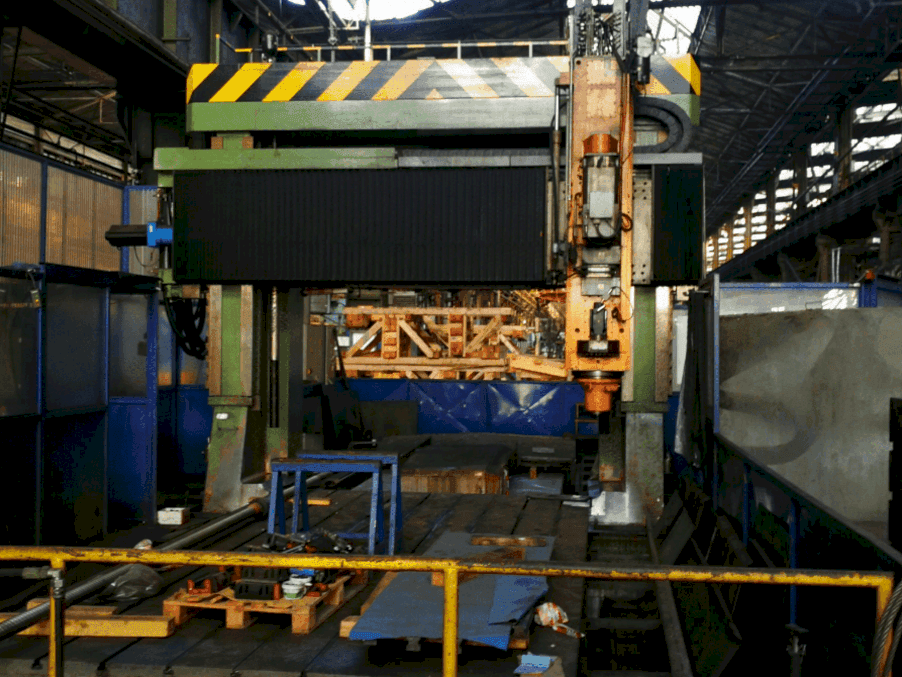

This FFZ 30-60 Milling Machine was manufactured in 2005. This 5 axis machine is operated through a Heidenhain 430 control unit. Its spindle speed goes up to 5000 rpm. It has a hinge belt conveyor with integrated overload protection along with many essential features.
Overview
- brand: FFZ
- year: 2005
- MODEL: 30-60
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - FFZ 30-60
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 430
Dimensions
- Machine Depth: 13200 mm
- Machine Height: 9800 mm
- Table Length: 6000 mm
- Table Width: 3000 mm
Movement
- X-axis Travel: 6000 mm
- Z-axis Travel: 2000 mm
Technical Specification
- Spindle Power: 50 kW
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Paint RAL-7035
Machine Benefits
Qualitative Machine Benefits
- Tool changer, number of tools [pc] 30
- Fork milling head, c-axis, a-axis 2 axes controlled
- Electrical equipment 3x400 v, 50 hz
- Main motor for milling spindle, siemens [kw] 50
- Servomotors x-,y-,z-axis, siemens
- Servo motors for tool changers, siemens
- Electric cabinet air-conditioned
- Coolant device
- Belt filter system with high-pressure pump
- Hinge belt conveyor [stk] 2
Technical Machine Benefits
- Portal passage: height x width 3200 x 3370 mm
- Distance between clamping surface and bottom edge of milling head min. /max. [mm] 0000 / 2500
- X-axis travel machine table [mm] +/-6000
- Y-axis travel milling unit [mm] 4 100
- Z-axis pestle [mm] 1 500
- Cross beam adjustment [mm] 1 500
- Machine bed: total length approx. [mm] 13,000
- Machine frame 2 stands, beams, traverse
- Cross beams height-adjustable
- Machine bed 1
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
