Finn-Power E5

Photo Gallery

Finn-Power - E5EE-PUN-FIN-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

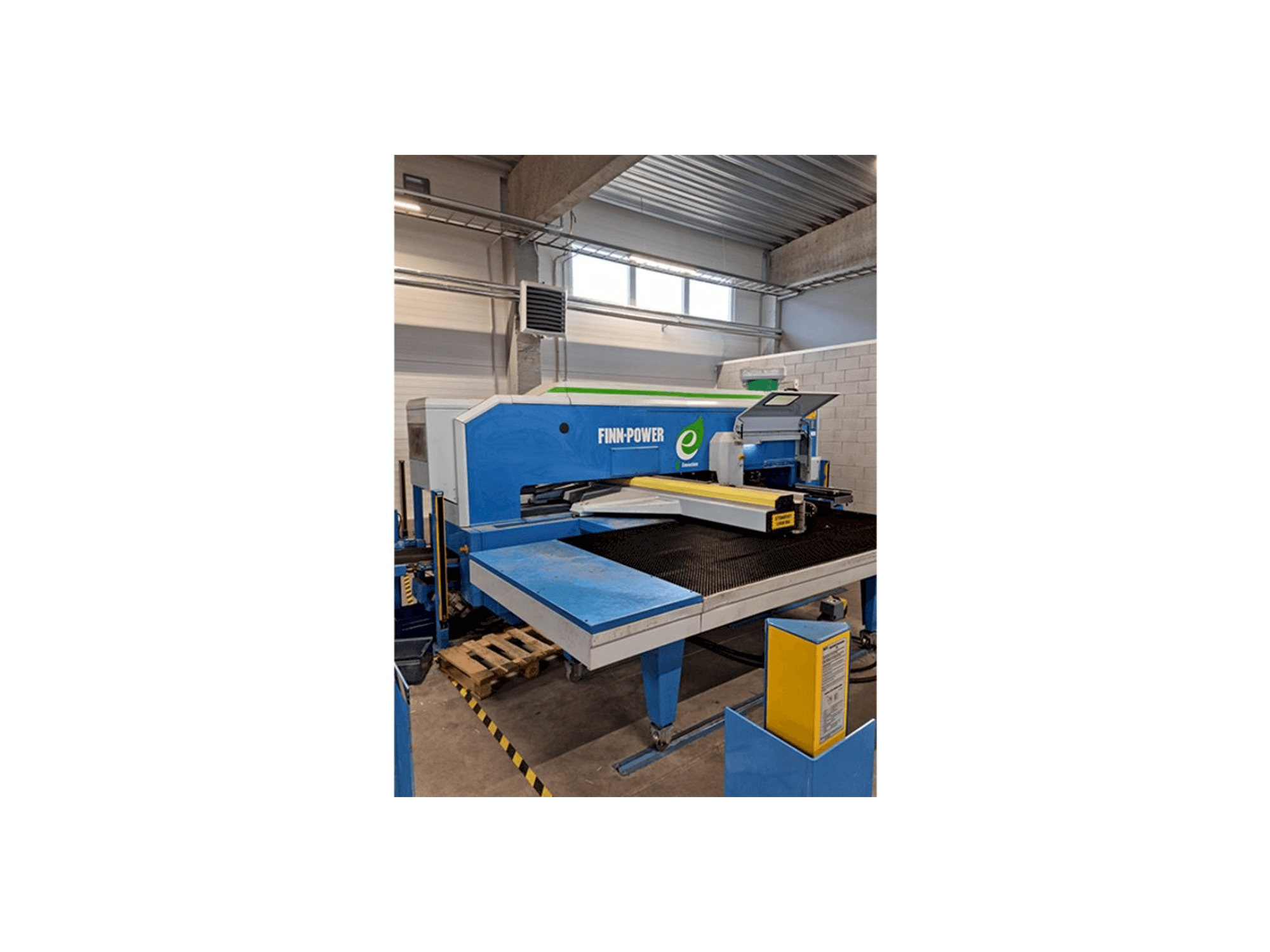

Finn-Power E5 Punching Machine

Show in original language

This Finn-Power E5 Punching Machine was manufactured in the year 2007. It has been working for approximately 36000 hours. It is operated through a Siemens Sinumeric 840D control unit. This punching machine can work with a punching force 200 kN and a punching diameter 89 mm.

Overview

brand: Finn-Power
year: 2007
MODEL: E5
production hours: 36000
application type: Punching
Location: Estonia
machine type: CNC Punch Press
control unit brand: SIEMENS

Technical Information - Finn-Power E5

General Data

Machine weight: 14000 kg

Control Unit

Model: Sinumeric 840D
Brand: SIEMENS

Main drive

Punching force: 200 kN

Movement

X-AXIS Movement: 2584 mm
X-AXIS Rapid traverse: 90 m/min
Y-AXIS Movement: 1317 mm
Y-AXIS Rapid traverse: 60 m/min

Table

Outer length: 2530 mm
Outer width: 1270 mm
Table load: 200 kg

Media

Power consumption: 11 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max punching diameter: 89 mm
- - Max tool rotation: 166 r/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
