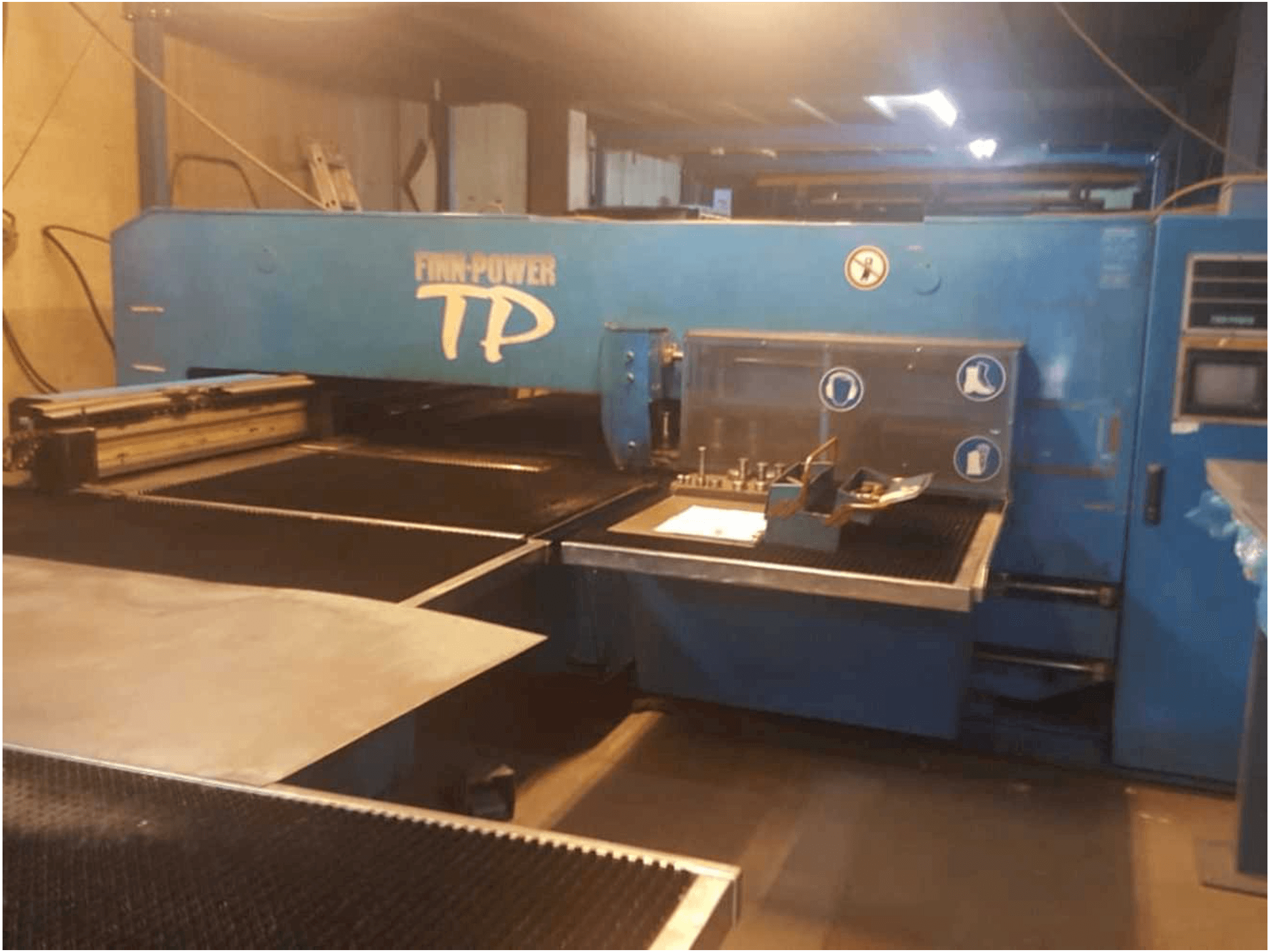

Front view of Finn-Power TP2520B1/AM machine
Front view of Finn-Power TP2520B1/AM machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Finn-Power - TP2520B1/AMES-PUN-FIN-1996-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Finn-Power TP2520B1/AM Punching Machine from Finland was manufactured in 1996. It is equipped with a Siemens Sinumerik 3N control unit. This machine can work with a punching force of 300 kN. During the past, it has mainly worked with steel up to 8 mm of thickness. This machine includes different tools of punches and dies.

Overview

  • brand: Finn-Power
  • year: 1996
  • MODEL: TP2520B1/AM
  • application type: Punching
  • Location: Spain
  • machine type: Turret Punch Press
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - Finn-Power TP2520B1/AM

General Data

  • Measurements width: 4900 mm
  • Measurements depth: 5100 mm
  • Measurements height: 200 mm
  • Machine weight: 10300 kg

Control Unit

  • Model: Sinumerik 3N
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: SIEMENS

Main drive

  • Punching force: 300 kN
  • Maximum sheet thickness: 8 mm

Movement

  • X-AXIS Movement: 2084 mm
  • Y-AXIS Movement: 1317 mm

Workpiece

  • Workpiece x: 2084 mm
  • Workpiece y: 1317 mm

Tools

  • Number of index: 10
  • Number of stations: 21

Max Material thickness

  • Steel: 8 mm

Media

  • Main electronic connection: 380 V
  • Power consumption: 20 kVA

    Additional equipment

    • - Includes different tools of punches and dies

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
