Fladder - AUT-1000 VACDE-DEB-FLA-1998-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Fladder AUT-1000 VAC Deburring machine

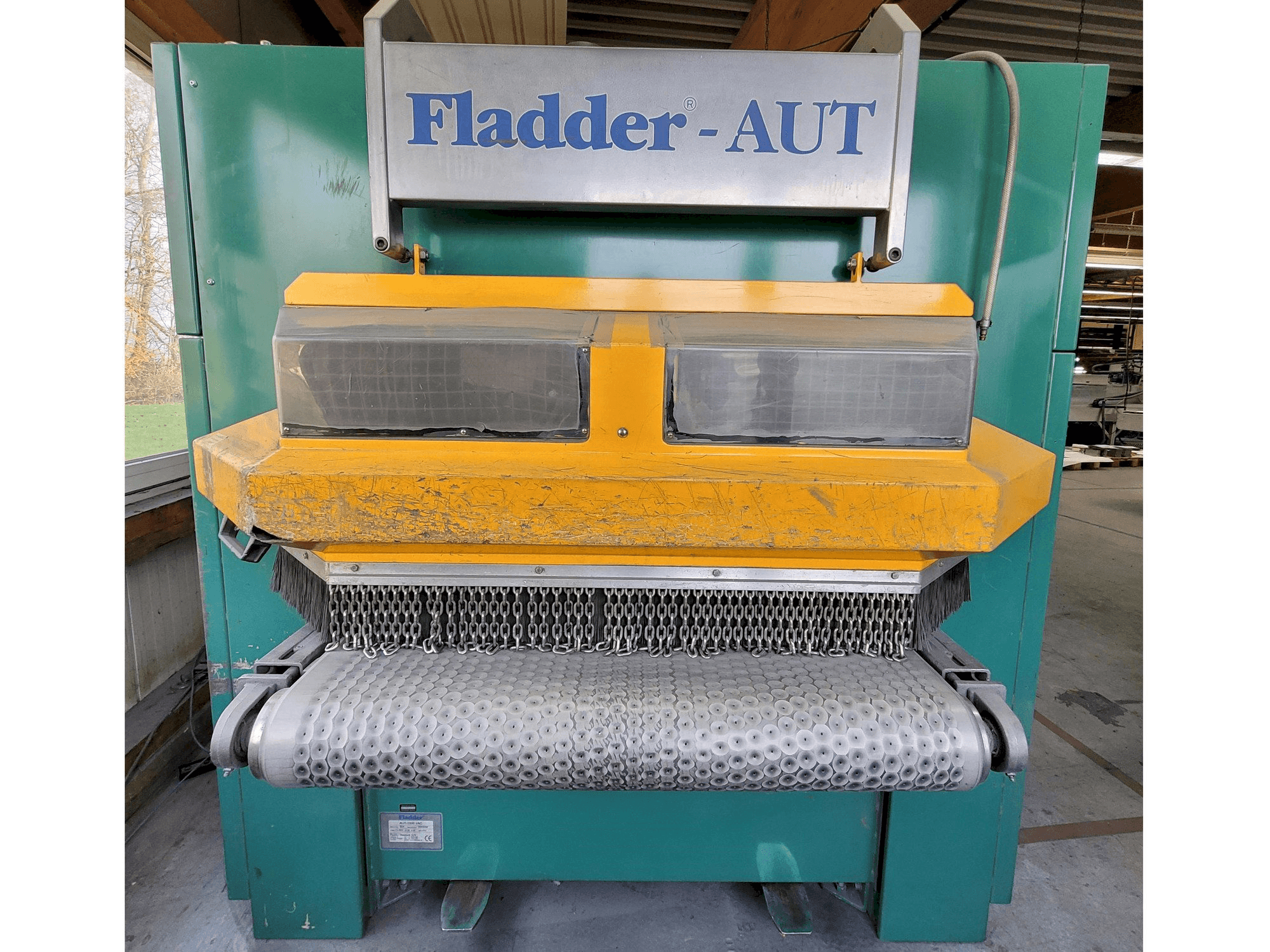

This Fladder AUT-1000 VAC Deburring machine was manufactured in the year 1998 in Denmark. The machine has 6 spindles and a spindle length of 350 mm.
Overview
- brand: Fladder
- year: 1998
- MODEL: AUT-1000 VAC
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Deburring Machine
Technical Information - Fladder AUT-1000 VAC
General Data
- Measurements width: 1800 mm
- Measurements depth: 1710 mm
- Measurements height: 2110 mm
- Machine weight: 1500 kg
Main drive
- Number of spindles: 6
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Compressed air: 1/4”, 6 atm
- Extraction: 2500 m3/h
- Suction nozzle: 1 x Ø200 mm
- Fuse max. 63 a , fuse min. 50 a
Technical Machine Benefits
- Face height: 850 mm
- Vacuum plan width: 1000 mm
- Max. Workpiece height :100 mm
- Max. Workpiece width: 1000-1200 mm
- Throughput speed : 0,3 - 10 m/min.
- Spindle length: 350 mm
- Number of fladder® abrasive sheets: 144 - 220 st.
- Rotary motor : 0,37 kw
- Oscillation motor : 0,55 kw
- Feed motor : 1,5 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
