Flow Mach 3-4020B Waterjet Cutting Machine

Show in original language

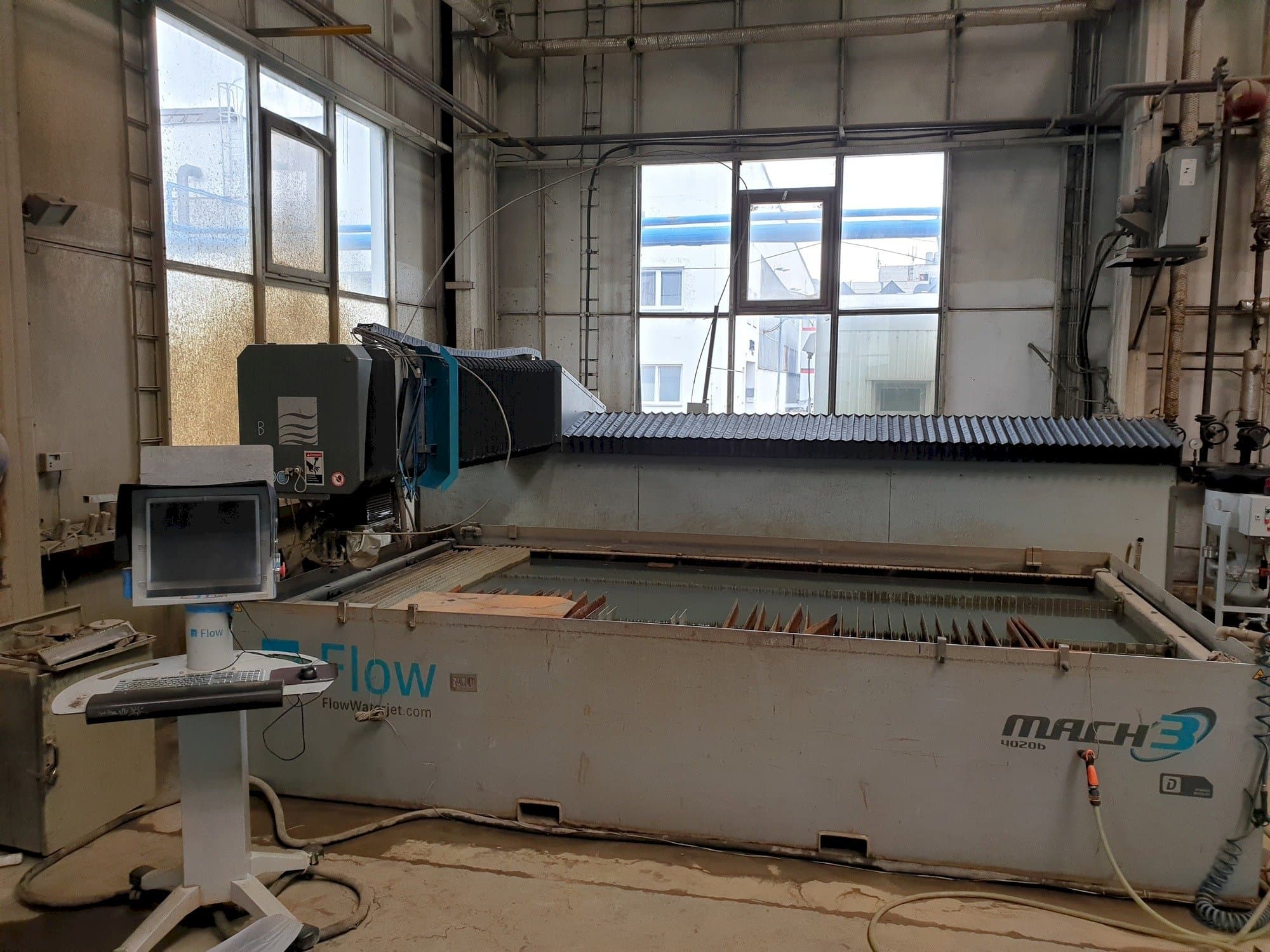

This Flow Mach 3-4020B Waterjet Cutting Machine was manufactured in 2011 in the United States and has been working for 11500 hours. It is equipped with a FlowMaster PC based Controller with professional software. It counts with a speed range up to 12700 mm/min, capable of cutting steel sheets up to 200 mm of thickness.

Overview

brand: Flow
year: 2011
MODEL: Mach 3-4020B
production hours: 11500
application type: Cutting
Location: Czech Republic
machine type: Waterjet Cutting Machine
availability: Sold

Technical Information - Flow Mach 3-4020B

General Data

Measurements width: 5400 mm
Measurements depth: 4500 mm
Measurements height: 2300 mm

Controller

Brand: Flow Master

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 190 mm

Workpiece

Workpiece x: 4100 mm
Workpiece y: 2100 mm

Max Material thickness

Steel: 200 mm

Media

Pump drive power: 6500 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Speed range: from 0 up to 12,700 mm/min
- - Rapid traverse maximum: up to 12,700 mm/min
- - Contouring maximum: up to 7,620 mm/min
- - Dynamic waterjet
- - Laserpointer, clamping system
- - Premium catcher tank – stainless steel
- - Flow 6,500 bar hyperpressure technology
- - Cooling system for flow intensifier pumps
- - Flow abrasivejet cutting system paser®

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
