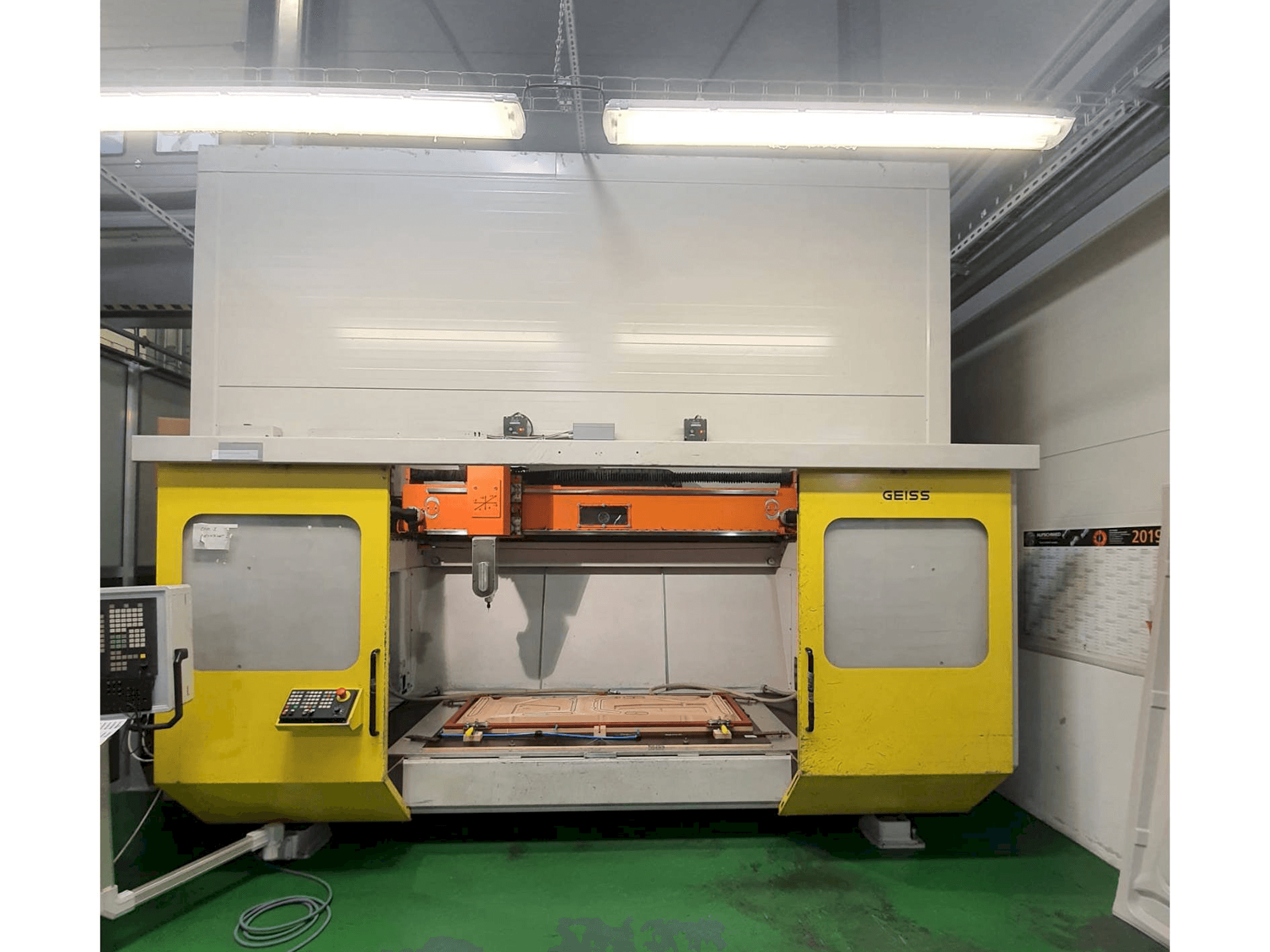

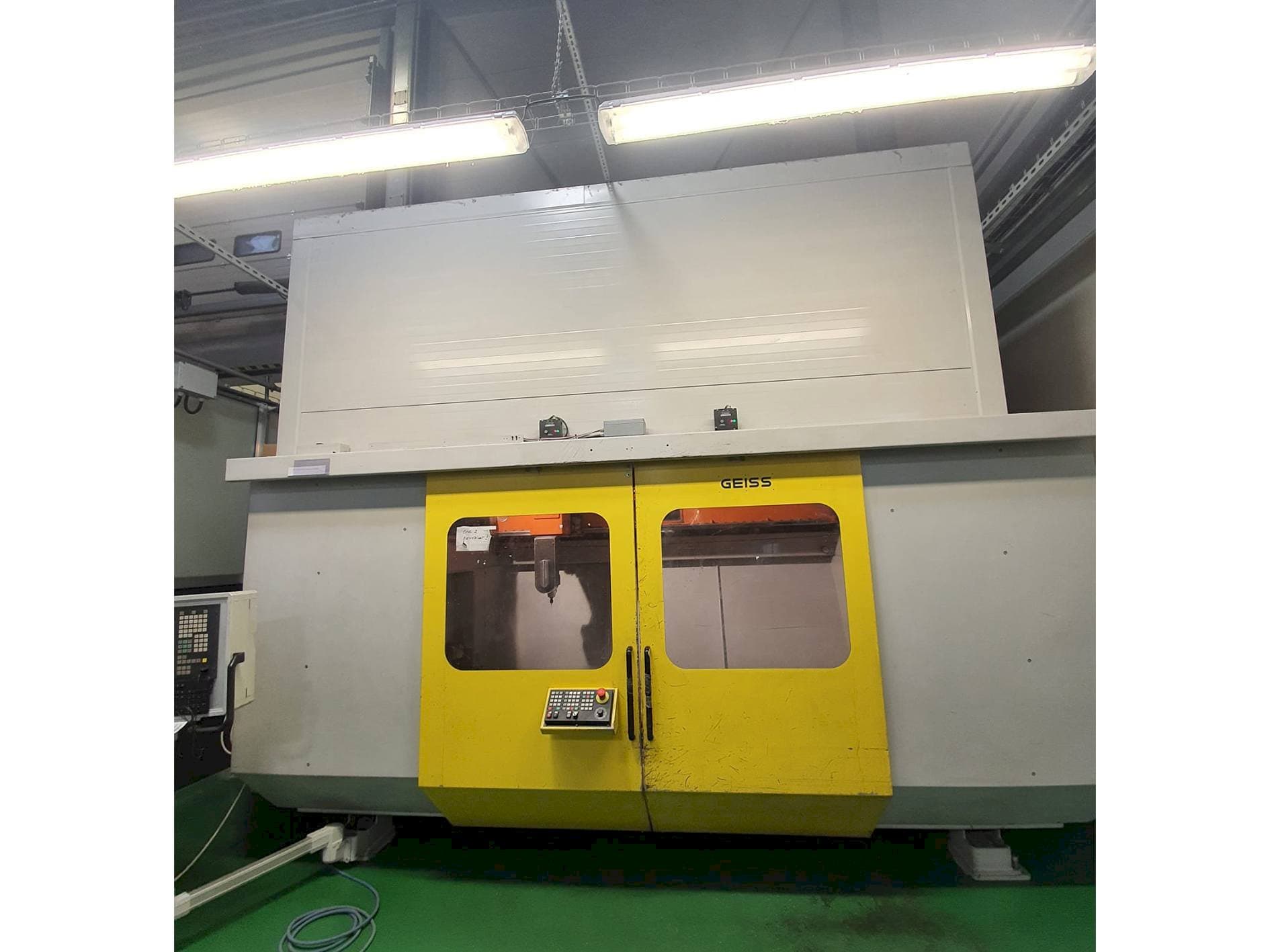

GEISS FZ 2000x1000 ECO Vertical machine center

Show in original language

This GEISS FZ 2000x1000 ECO Vertical machine center was made in Germany in 2004. It has been working for 62403 production hours of which 17316 are spindle hours. This 5 axis machine is operated through a SIEMENS Sinumerik 840Di control unit, it works with a spindle speed up to 30000 rpm. Machine in very good condition, coolant pump and vacuum pump included.

Overview

brand: GEISS
year: 2004
MODEL: FZ 2000x1000 ECO
production hours: 62403
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - GEISS FZ 2000x1000 ECO

General Data

Measurements width: 4505 mm
Measurements depth: 2467 mm
Measurements height: 2456 mm
Machine weight: 2900 kg

Control Unit

Model: Sinumerik 840Di
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 30000 1/MIN

Movement

X-AXIS Movement: 2400 mm
Y-AXIS Movement: 1400 mm
Z-AXIS Movement: 760 mm

Table

Outer length: 2000 mm
Outer width: 1000 mm

Additional equipment

- Coolant pump + vacuum pump included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 520 degrees
- - B axis 285 degrees
- - Spindle motor power 6 kw
- - Rapid feerates x/y/z 7500/7500/7000 mm/min
Qualitative Machine Benefits:
- - Good condition, regulary service
- - 2021 - new spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
