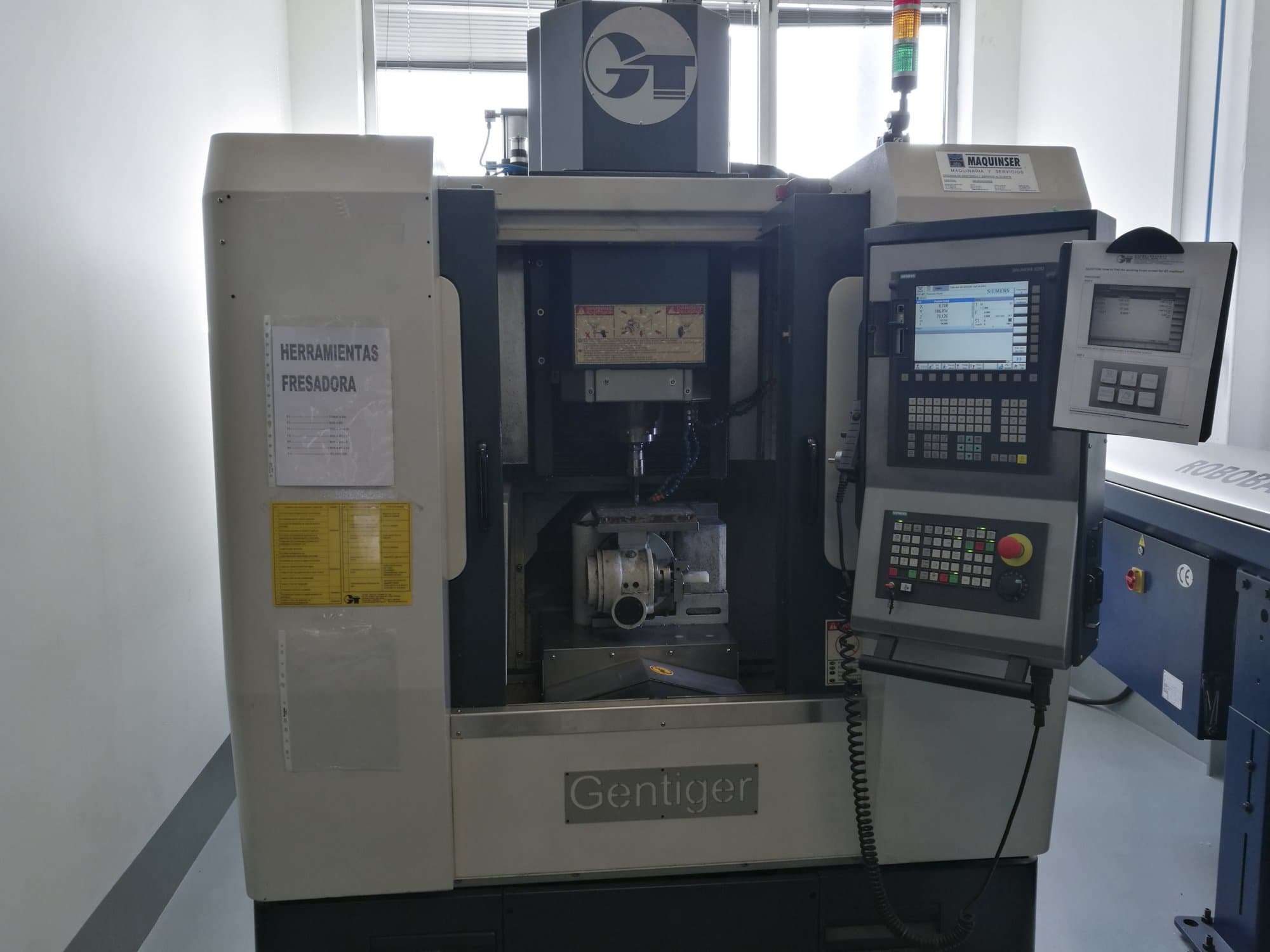

Front view of GENTIGER GT-45-5AX Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

GENTIGER GT-45-5AX

Photo Gallery

GENTIGER - GT-45-5AXES-MIL-GEN-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
GENTIGER GT-45-5AX Vertical Machining Center

Show in original language

This GENTIGER GT-45-5AX Vertical Machining Center from 2011 was made in Taiwan and has been operative for only 800 production hours since then. Equipped with a SIEMENS SINUMERIK 828D Control unit, this robust and well maintained 3+2 axis machining center can be considered as good as new.

Overview

brand: GENTIGER
year: 2011
MODEL: GT-45-5AX
production hours: 800
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - GENTIGER GT-45-5AX

General Data

Measurements width: 1870 mm
Measurements depth: 2500 mm
Measurements height: 2500 mm
Machine weight: 6010 kg

Control Unit

Model: SINUMERIK 828D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 50000 1/min
Spindle motor power: 7.8 kW
Tool taper: BT-30

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece x: 450 mm
Workpiece y: 350 mm
Workpiece z: 300 mm
Workpiece weight: 200 kg

Table

Outer length: 500 mm
Outer width: 400 mm
Height adjustment: 300 mm
TSlots size: 100 mm
Number of tslots: 4
Distance between: 14 mm

Tools

Max weight: 4 kg
Max tool length: 200 mm

Media

Main electronic connection: 380 V / 50 Hz
Internal cooling: Yes

Additional equipment

- Software Work NC 22 and Work NC Dental

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
