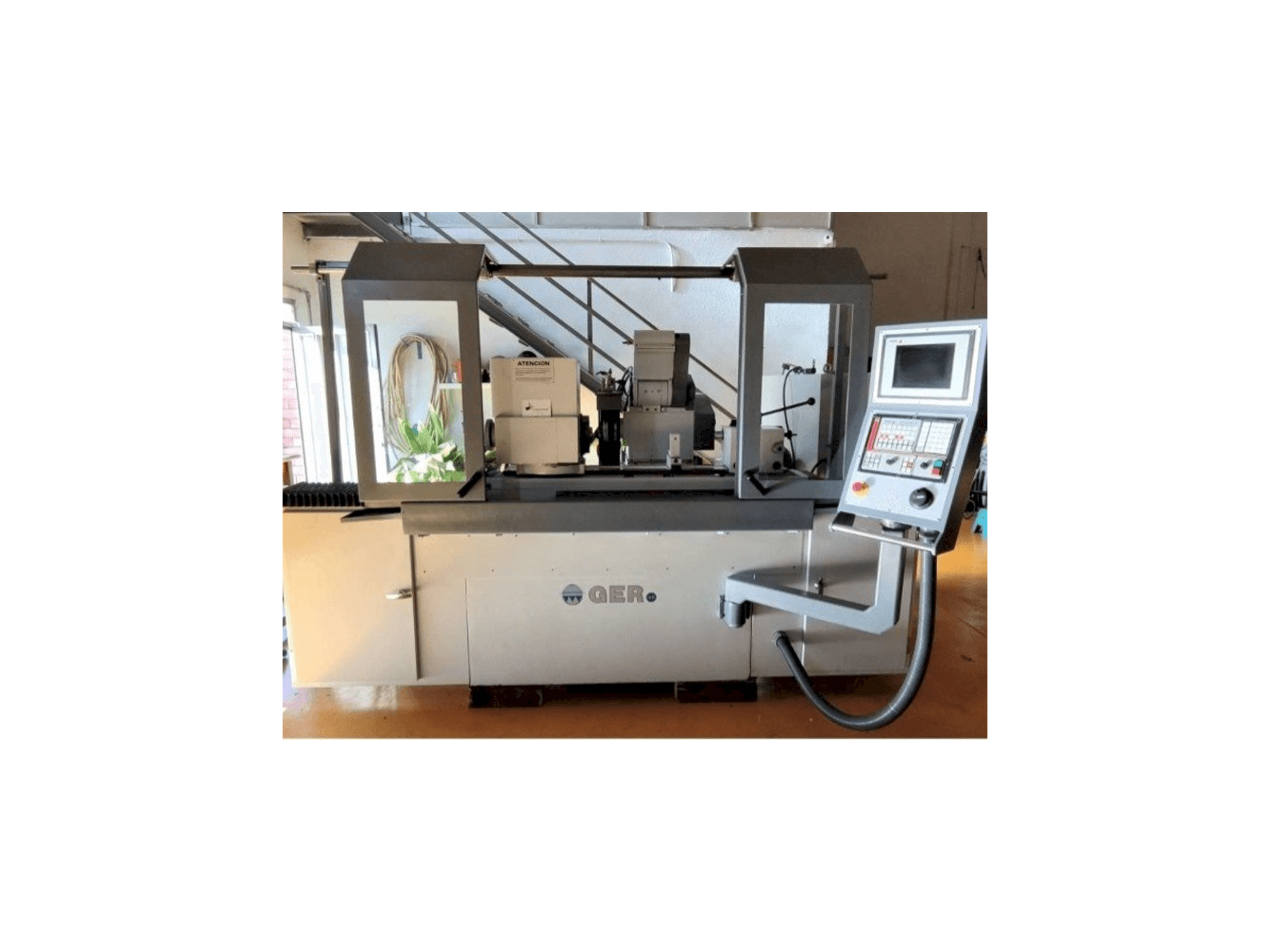

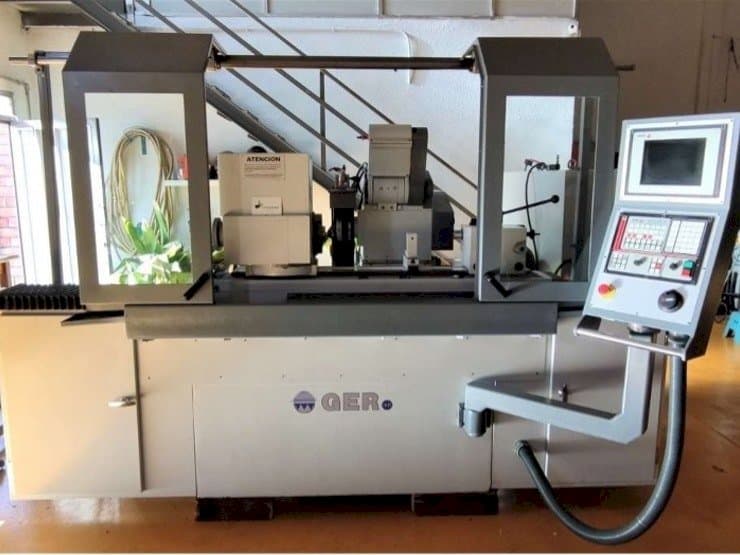

GER - C-500 CNCES-GRI-GER-2000-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Diameter to be ground: 275 mm
  • - Height of points: 140 mm
  • - Distance between points: 500 mm
  • - Speed variator on work holding head work holding head cone: mt 5
  • - Turning of workpiece holder head: 30º
  • - Grinding wheel motor power: 5. 5 hp
  • - Grinding wheel dimensions: φ350x30(50)xφ127 mm
  • - Variable speed drive for external grinding wheel
  • - Automatic dressing of the grinding wheel with dressing compensation
  • - Hydraulic hinged inside device, speed variator for internal grinding wheel, tailstock, cone
• Qualitative Machine Benefits:
  • - Completely mechanically rebuilt 2022
  • - Reconditioning of ball screws at the manufacturer's premises
  • - Replacement of antifriction material of the slides
  • - Restoration of flatness, parallelism and perpendicularity of the sliding guides by hand scraping
  • - Tailstock adjustment
  • - Replacement of high precision bearings
  • - Overhaul of lubrication circuit
  • - 2-component epoxy painting
  • - Overhaul of electronic equipment by fagor
