Products
Machine Tools

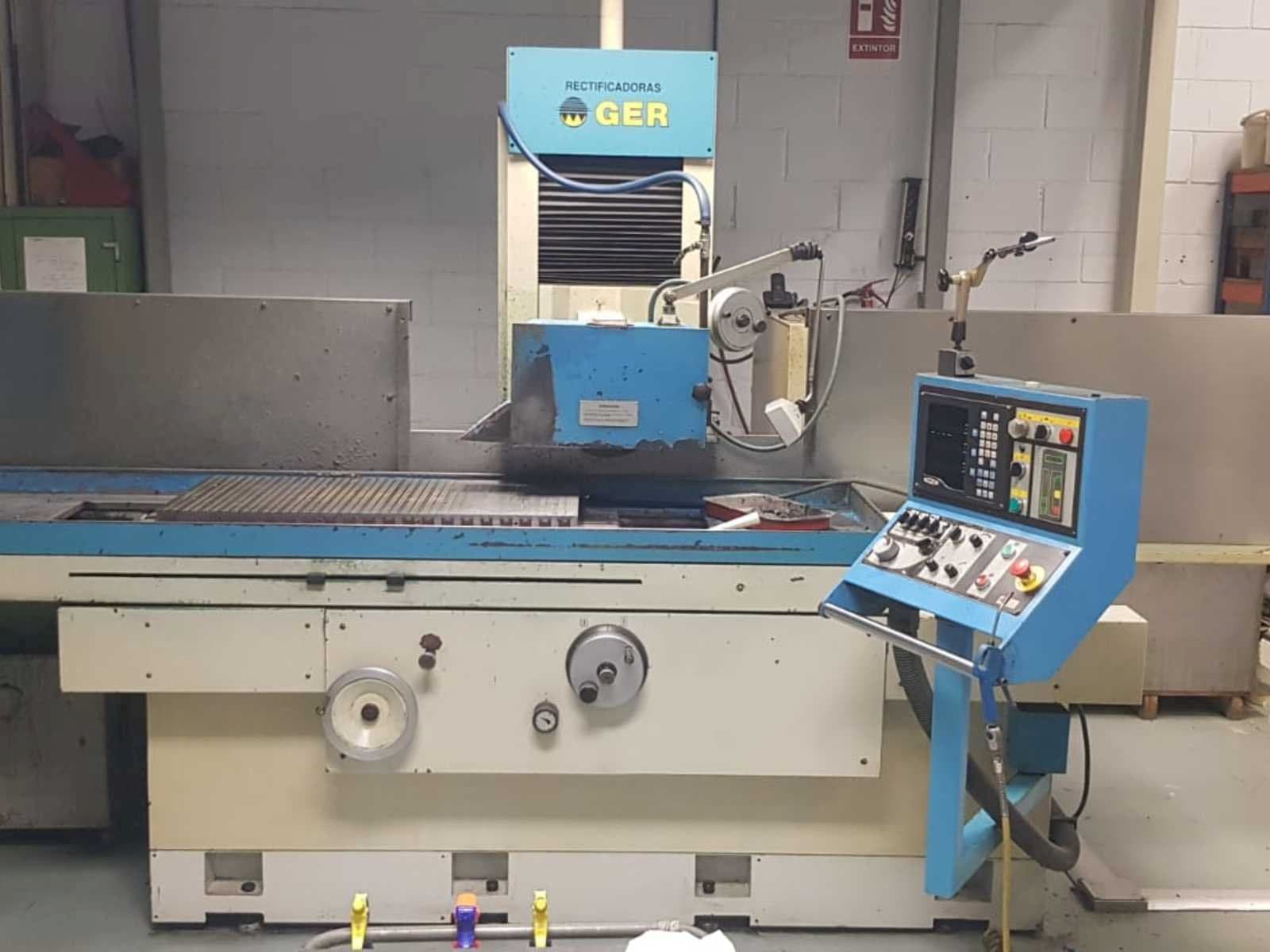

GER S-100/50 Grinding machine

Show in original language

This GER S-100/50 Grinding machine was manufactured in the year 2000. It is equipped with a Fanuc control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.

Overview

brand: GER
year: 2000
MODEL: S-100/50
application type: Grinding
Location: Spain
machine type: Surface Grinding Machine
availability: Sold
control unit brand: FAGOR

Technical Information - GER S-100/50

General Data

Measurements width: 4600 mm
Measurements depth: 2700 mm
Measurements height: 2600 mm
Machine weight: 7600 kg

Control Unit

Brand: FAGOR

Main drive

Spindle speed range: 1500 1/MIN

Movement

X-AXIS Movement: 1160 mm
Y-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1000 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distancia máxima de la mesa a la muela: 800 mm
- - Dimensiones de la muela: 400x100x127 mm
- - Precisión 0,005 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
