Gildemeister CTX 310 V3

Show in original language

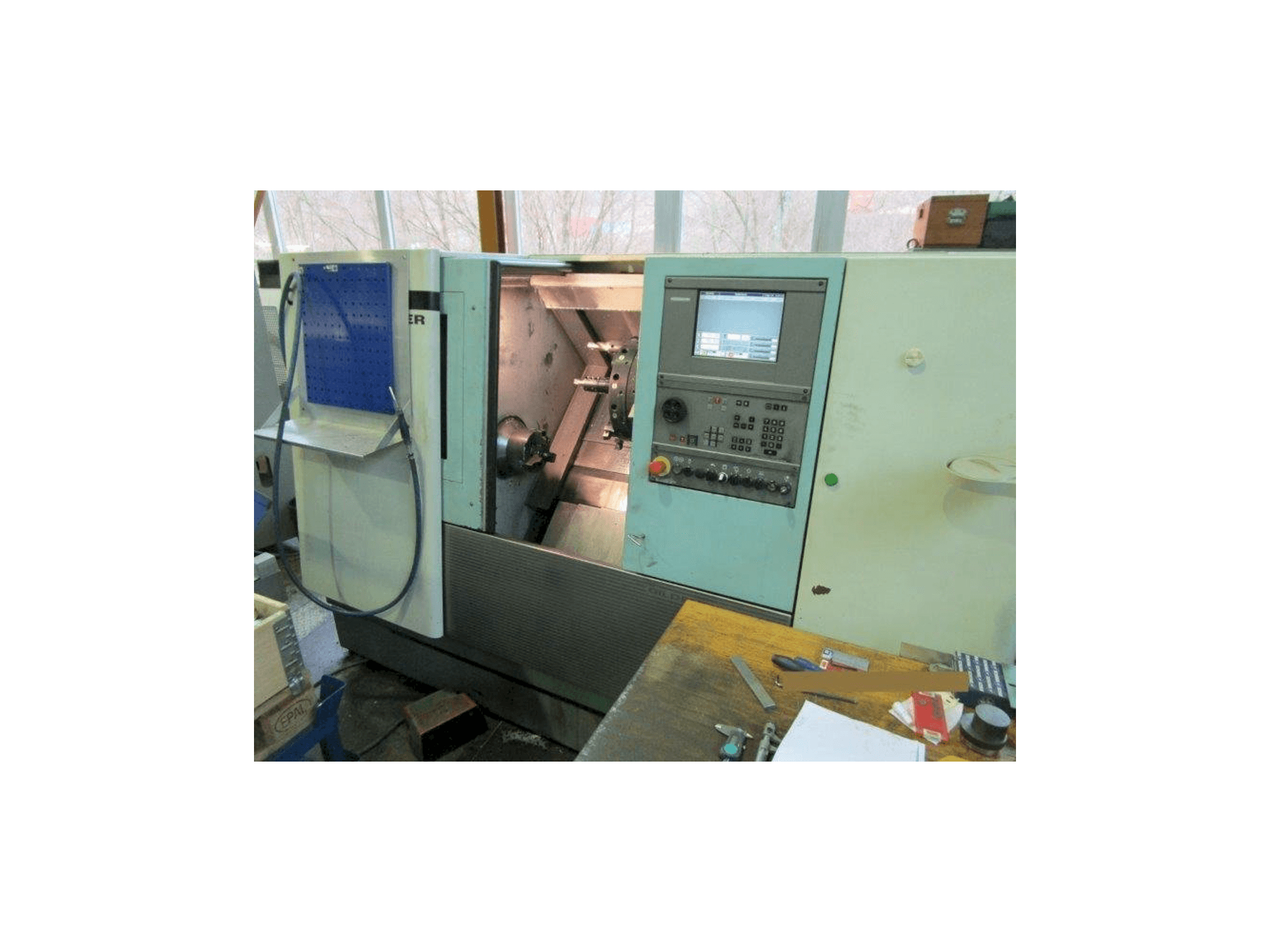

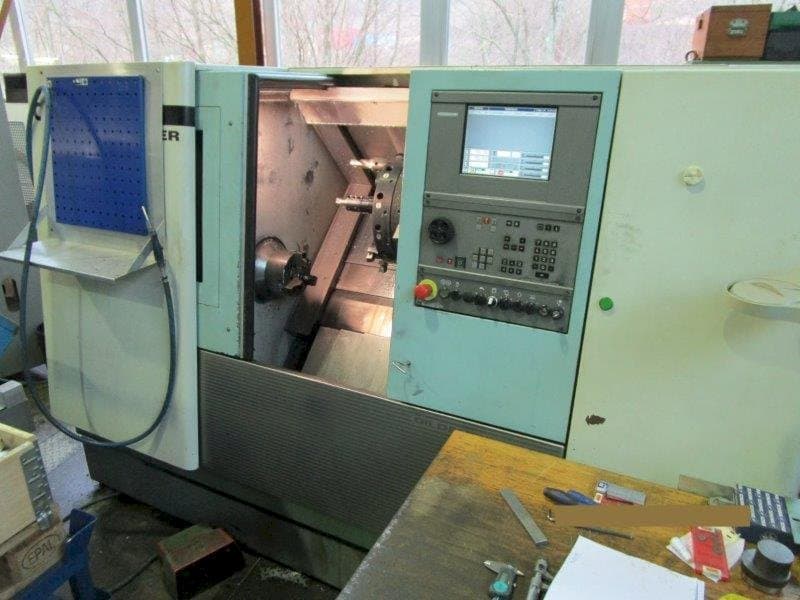

This Gildemeister CTX 310 V3 lathe machine was made in 2003 in Germany. This machine has 25237 working hours, of which 9240 are spindle hours. It is operated through a HEIDENHAIN CNC Pilot 4290 control unit. This 3 axis machine has a spindle speed up to 5000 rpm. It includes its documentation.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX 310 V3
production hours: 25237
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 310 V3

General Data

Measurements width: 5000 mm
Measurements depth: 2500 mm
Measurements height: 2000 mm
Machine weight: 3500 kg

Control Unit

Brand: HEIDENHAIN
Model: CNC Pilot 4290

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 3

Turret

Number of turrets: 12

Tools

Type of tool holder: VDI 30

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working diameter: Ø 330 / 260 / 200 x 450 mm
- - Main spindle with c-axis
- - 3-jaw power chuck - smw autoblock 170 bb-gz
- - Automatic door
- - Tailstock (currently without pinole)
- - Speed range driven tool up to 4200 rpm
Qualitative Machine Benefits:
- - Documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
