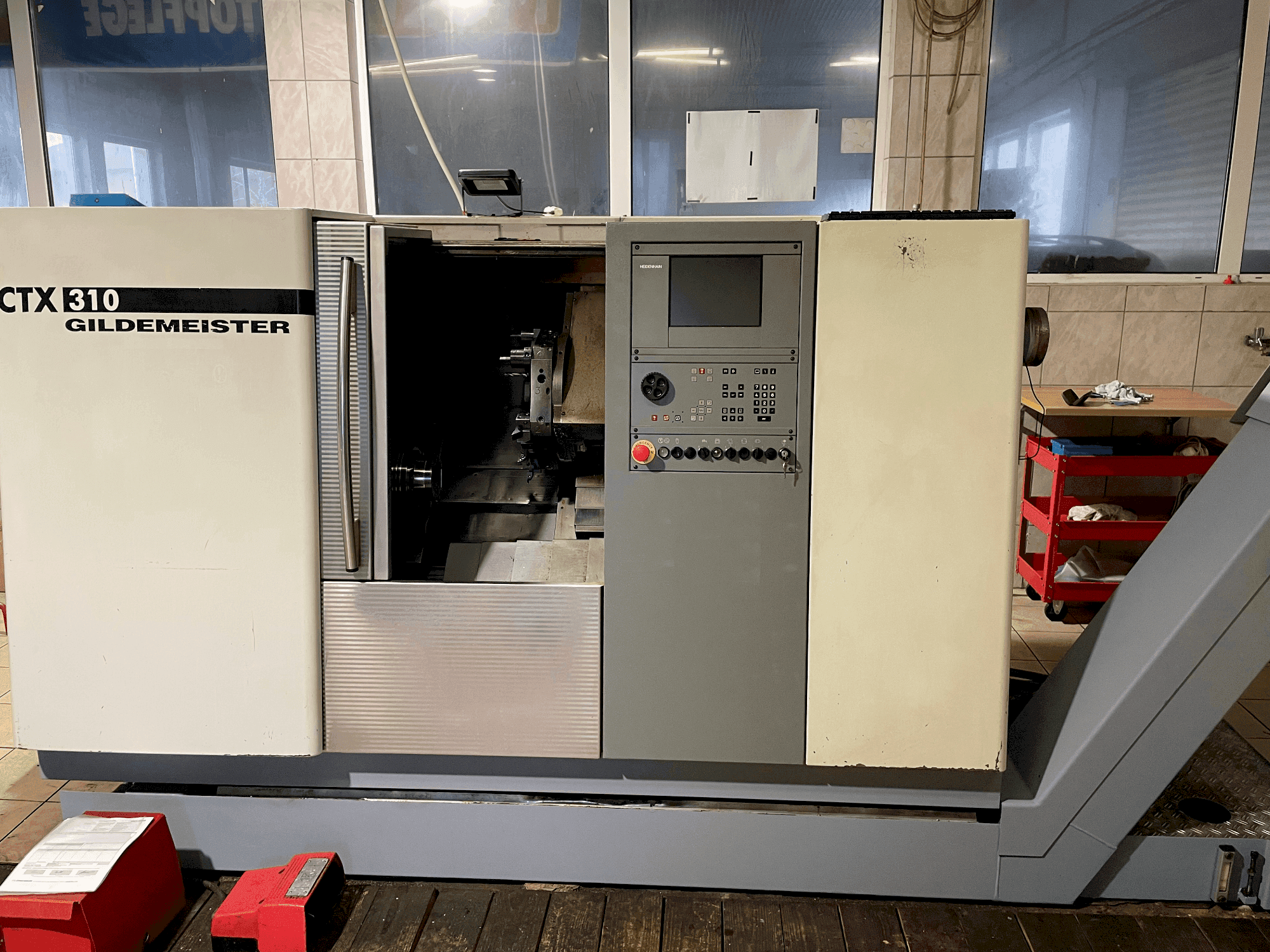

Front view of Gildemeister CTX 310 V3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 310 V3

Photo Gallery

Gildemeister - CTX 310 V3HU-TUR-GIL-2003-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ For Sale: Gildemeister CTX 310 Lathe

Show in original language

This GILDEMEISTER CTX 310 Lathe was made in 2003. It is equipped with a HEIDENHAIN DataPilot 4290 control unit. The machine has a spindle speed of 5000 rpm. Its technical condition is normal with an accuracy of 0.01 mm. Throughout the years it was continuously maintained. In 2022, the main drive card and main engine were replaced. In December 2022, the main spindle bearings were exchanged. The replacement was made with new parts. The basic machine is equipped with a hydraulic chuck. Full documentation is available.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX 310 V3
production hours: 55779
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 310 V3

General Data

Measurements width: 3200 mm
Measurements depth: 1715 mm
Measurements height: 1770 mm

Control Unit

Model: DataPilot 4290
Brand: HEIDENHAIN

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 21 kW
Spindle bore: 65 mm
Number of axis: 2

Movement

X-AXIS Movement: 250 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 110 kg

Turret

Number of turrets: 1
Number of tool slots: 12
Rotating tools: Yes
Tool taper: VDI 30

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Its technical condition is normal, continuously maintained. Its accuracy is 0. 01 mm.
- - In 2022, the main drive card and main engine were replaced in the machine.
- - In december 2022, the main spindle bearings were replaced in the machine. The replacement was made with new parts.

Extra information

- Machine On 55,779h // Spindle Hours 22,367h // Full documentation available // The basic machine is equipped with a hydraulic chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
