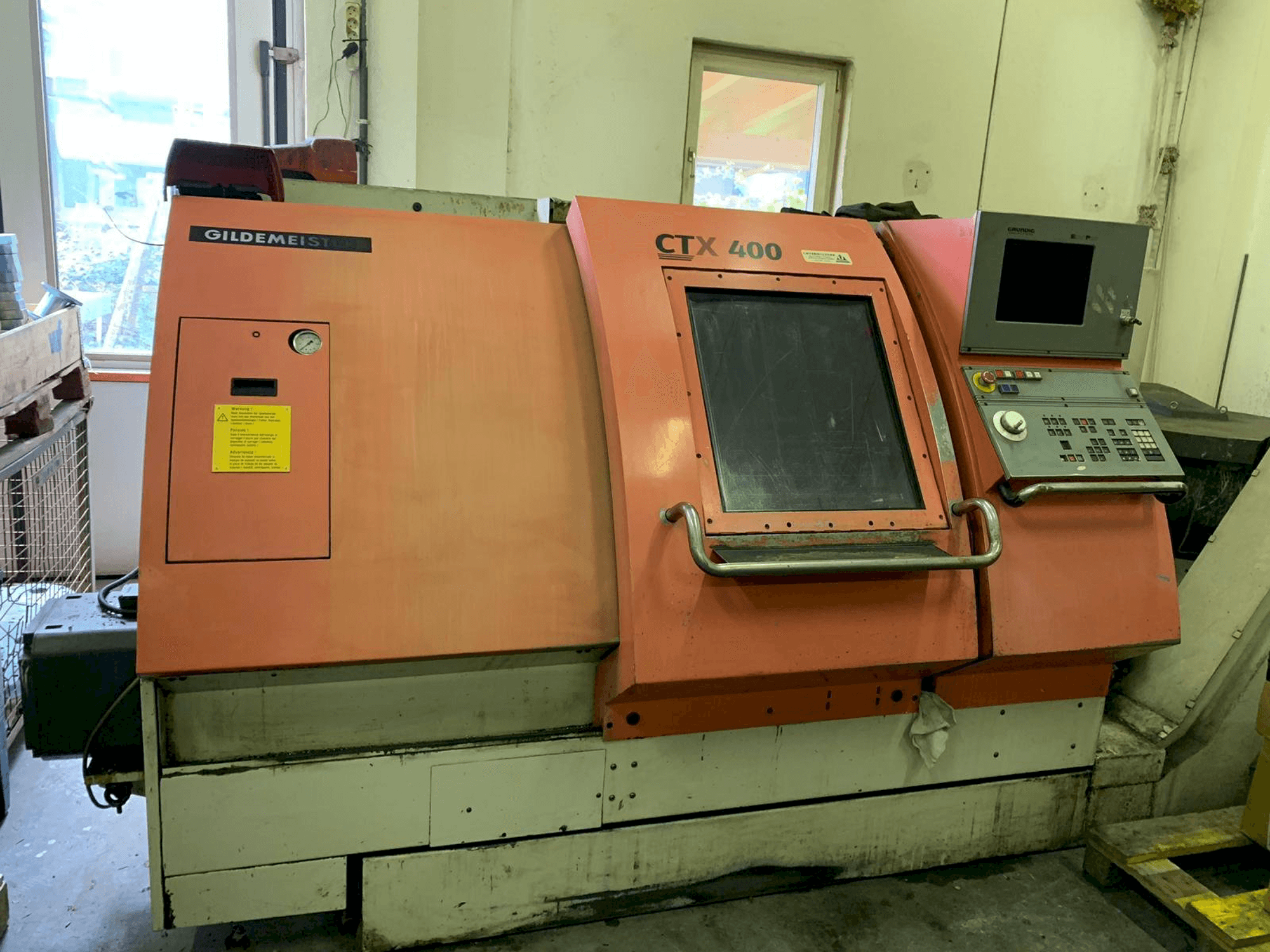

Front view of Gildemeister CTX 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 400

Photo Gallery

Gildemeister - CTX 400IT-TUR-GIL-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ For Sale: Gildemeister CTX 400 Lathe

Show in original language

This Gildemeister CTX 400 Lathe was manufactured in Germany in 1995 and has been working for 21500 hours since then. Equipped with a GRUNDIG Control unit, this machine performs with a spindle speed range of 25 to 5000 rpm.

Overview

brand: Gildemeister
year: 1995
MODEL: CTX 400
production hours: 21500
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Gildemeister CTX 400

General Data

Measurements width: 4727 mm
Measurements depth: 1940 mm
Measurements height: 1730 mm
Machine weight: 5140 kg

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 10 m/min MM
Z-AXIS Movement: 15 min/min MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Circunferencial diameter over : 500mm
- - Circumference diameter above 290mm
- - Longitudinal path: 650mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
