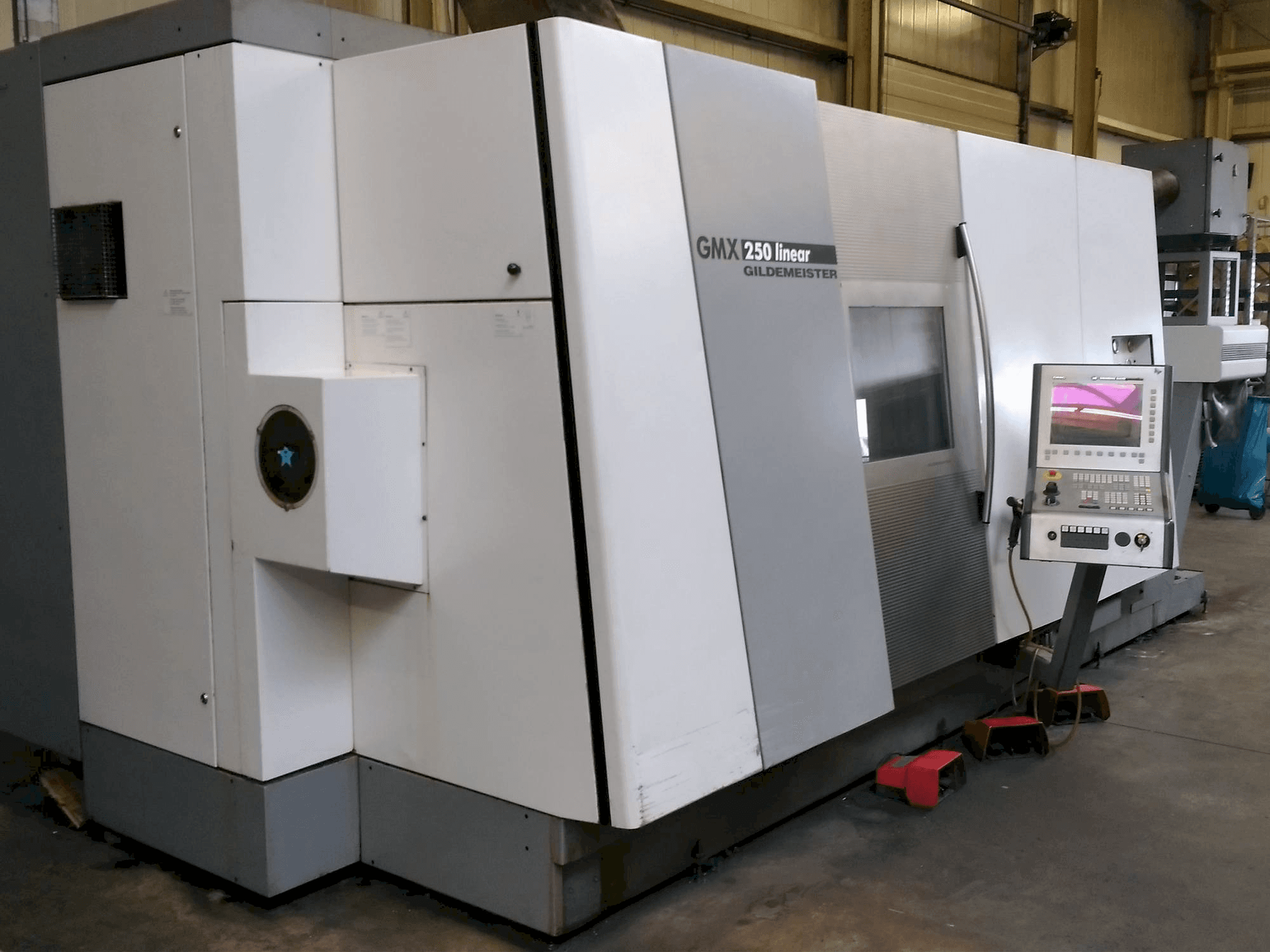

Front view of Gildemeister GMX 250 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister GMX 250 linear

Photo Gallery

Gildemeister - GMX 250 linearDE-TUR-GIL-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister GMX 250 linear

Show in original language

This Gildemeister GMX 250 linear lathe machine was built in 2008 in Germany. The machine has a record of 65758 hours, of which 42358 are operating hours. It is operated through a SIEMENS 840D powerline control unit. This 4 axis machine has a spindle speed up to 5000 rpm and a turning lenght 1185 mm.

Overview

brand: Gildemeister
year: 2008
MODEL: GMX 250 linear
production hours: 65758
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - Gildemeister GMX 250 linear

General Data

Measurements width: 7800 mm
Measurements depth: 4100 mm
Measurements height: 3040 mm
Machine weight: 15000 kg

Control Unit

Model: 840D powerline
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN
Spindle motor power: 28 kw
Number of axis: 4

Turret

Number of tool slots: 12

Tools

Max weight: 6/10 KG
Max tool diameter: 120 MM
Max tool length: 200(17) / MAX. 350(29) MM
Type of tool holder: HSK63-A

Media

Main electronic connection: 400 v 50 hz
Power consumption: 75 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel axis: x1/y1 - 550/ 180 mm
- - Travel axis: z1 - 1185 mm
- - Travel axis: b1 - 240 grad.
- - Travel axis: x2 - 180 mm
- - Travel axis: z2 - 1050 mm
- - Travel axis: z3 - 1150 mm
- - Chuck diameter: 200 - 315 mm
- - Maximum rod diameter: 65 mm
- - Spindle head diameter: 170h5 mm
- - Maximum torque: 320 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
