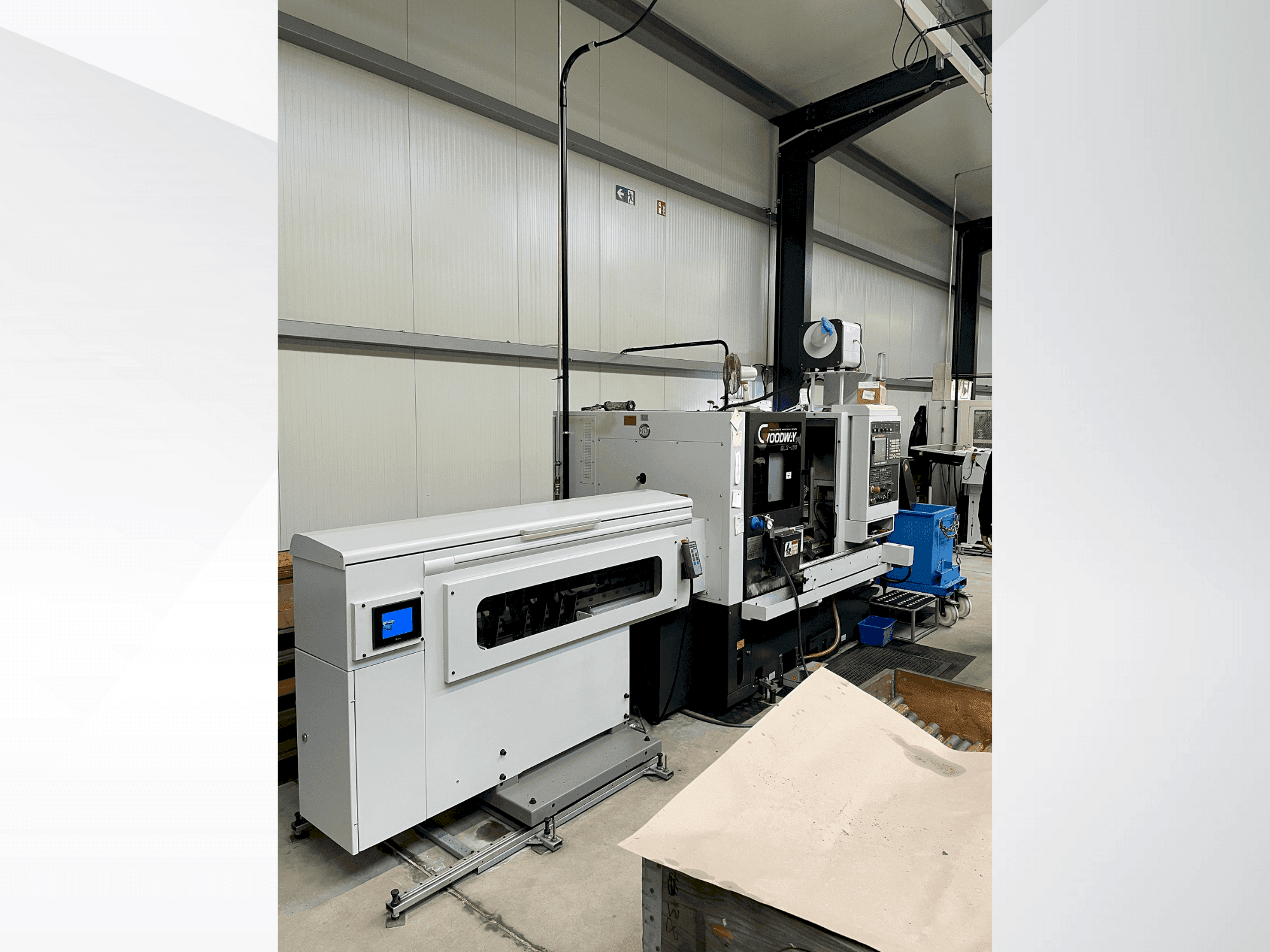

This Goodway GLS-150 was manufactured in 2018. A robust horizontal turning machine featuring a FANUC 01-T control system with a 10.4" LCD and Manual Guide functionality. It boasts a spindle speed of 60-6000 RPM and a maximum bar capacity of 51 mm. Equipped with a high-precision linear guide on all axes, a 12-station turret, and a reinforced coolant pump for enhanced performance. If you are looking to get high-quality turning capabilities consider the Goodway GLS-150 machine we have for sale. Contact us for more information.
Overview
- brand: Goodway
- year: 2018
- MODEL: GLS-150
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Goodway GLS-150
Main drive
- Spindle speed range: 60–6000 1/MIN
- Spindle motor power: 11/15 kW
- Tool taper: A2-5
Media
- Oil water separator: Yes
- Chip conveyor: Yes
Additional equipment
- - Turret with Direct Mount (12 stations)
- - High-Precision Linear Guides on All Axes
- - Coolant System
- - Hydraulic System
- - Full Enclosure
- - Automatic Lubrication System
- - Signal Lamp (3-color)
- - Work Area Lighting
- - Automatic Machine Shutdown (via M-Code)
- - Automatic Chuck Operation
Additional Information
- Technical Machine Benefits:
- - Max turning length: 500 mm
- - Pinole diameter: 70 mm
- - Programmable quill travel: 150 mm
- - Tailstock travel: 290 mm
- - Reinforced coolant pump (pressure: 20 bar)
- - Parts catcher for main spindle
- - Transport conveyor for finished parts
- - 8 additional m-functions
- - Interface for bar loader
- - Bar loader: barload bk105
- Qualitative Machine Benefits:
- - Prepared for a live center with mk4 mount
- - Tool monitoring system: load monitoring
- - Control cabinet with heat exchanger
- - Foundation and leveling accessories
- - Set of auxiliary tools
- - Machine documentation
- - Ce certification
- - Renishaw-hpra measuring arm
- - Stable 30° slant bed design for versatile, precise, and cost-effective machining solutions.
- - Machine connection data: compatible with clamping device 2703 / 0007, chuck connection to standard spindle, spindle standard: din 55026, short taper size 5/6
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
