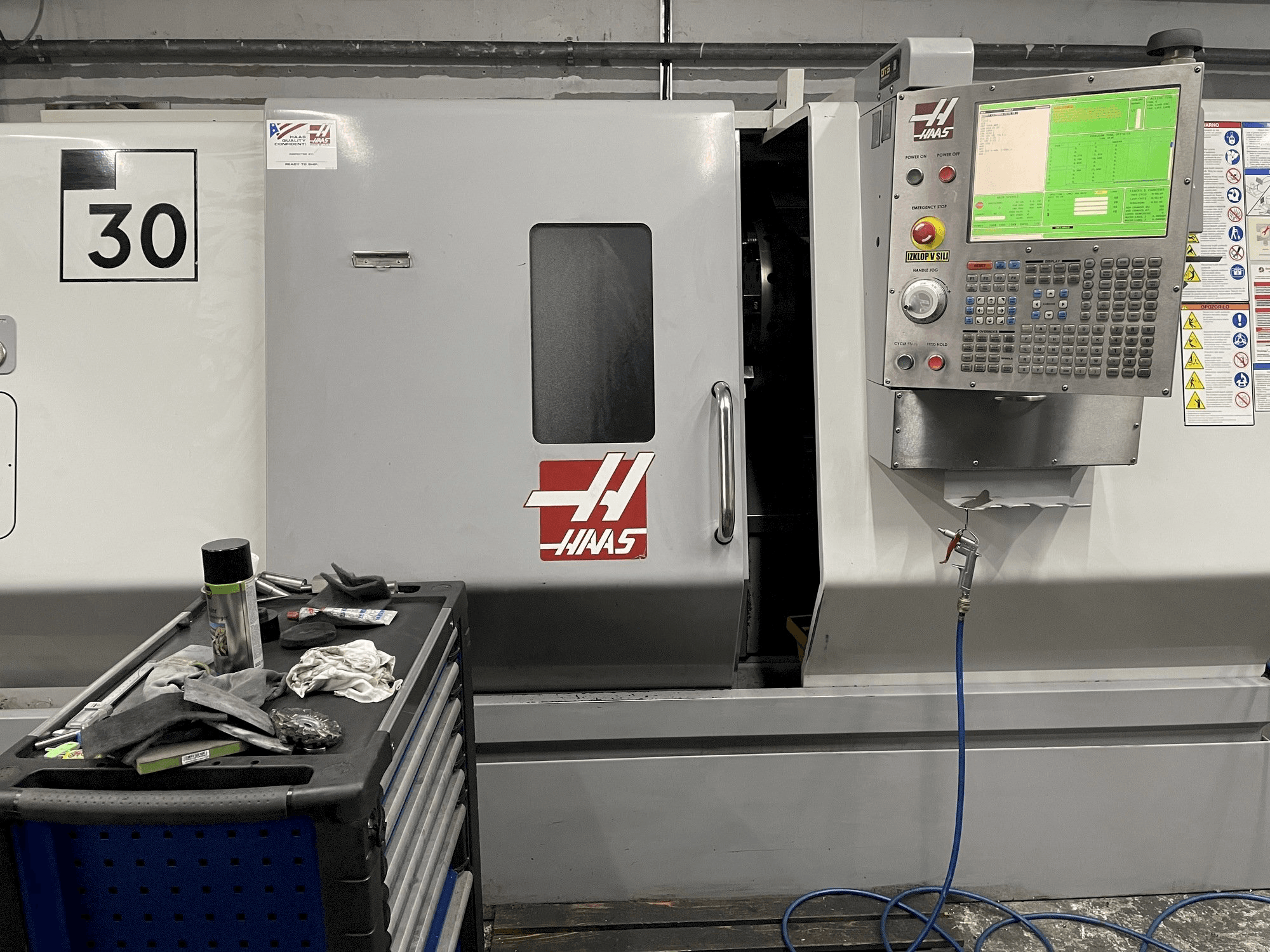

This HAAS SL-30 Lathe was manufactured in the year 2008 in the United States and has 22206 production hours, of which 3460 are cutting hours. It is equipped with a HAAS control unit. The machine has a spindle speed of 3400 rpm, is in good condition and well maintained.

Overview

brand: HAAS
year: 2008
MODEL: SL-30
production hours: 22206
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-30

General Data

Machine weight: 7258 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3400 1/MIN

Movement

X-AXIS Movement: 287 mm
Z-AXIS Movement: 864 mm

Media

Power consumption: 28 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Over front apron: 762 mm
- - Over cross slide: 368 mm
- - Chuck size: 254 mm
- - Maximum bar capacity: 76 mm
- - Between centers: 991 mm
- - Maximum cutting diameter: 432 mm
- - Maximum cutting length: 864 mm
- - Max cutting length w/ std workholding: 813 mm
- - Torque: 407 nm
- - Number of tools: 12
Qualitative Machine Benefits:
- - Cutting time 3460

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

SL-30 specification.pdf
