HAAS - SL-40GB-TUR-HAA-2007-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- HAAS SL-40
Show in original language

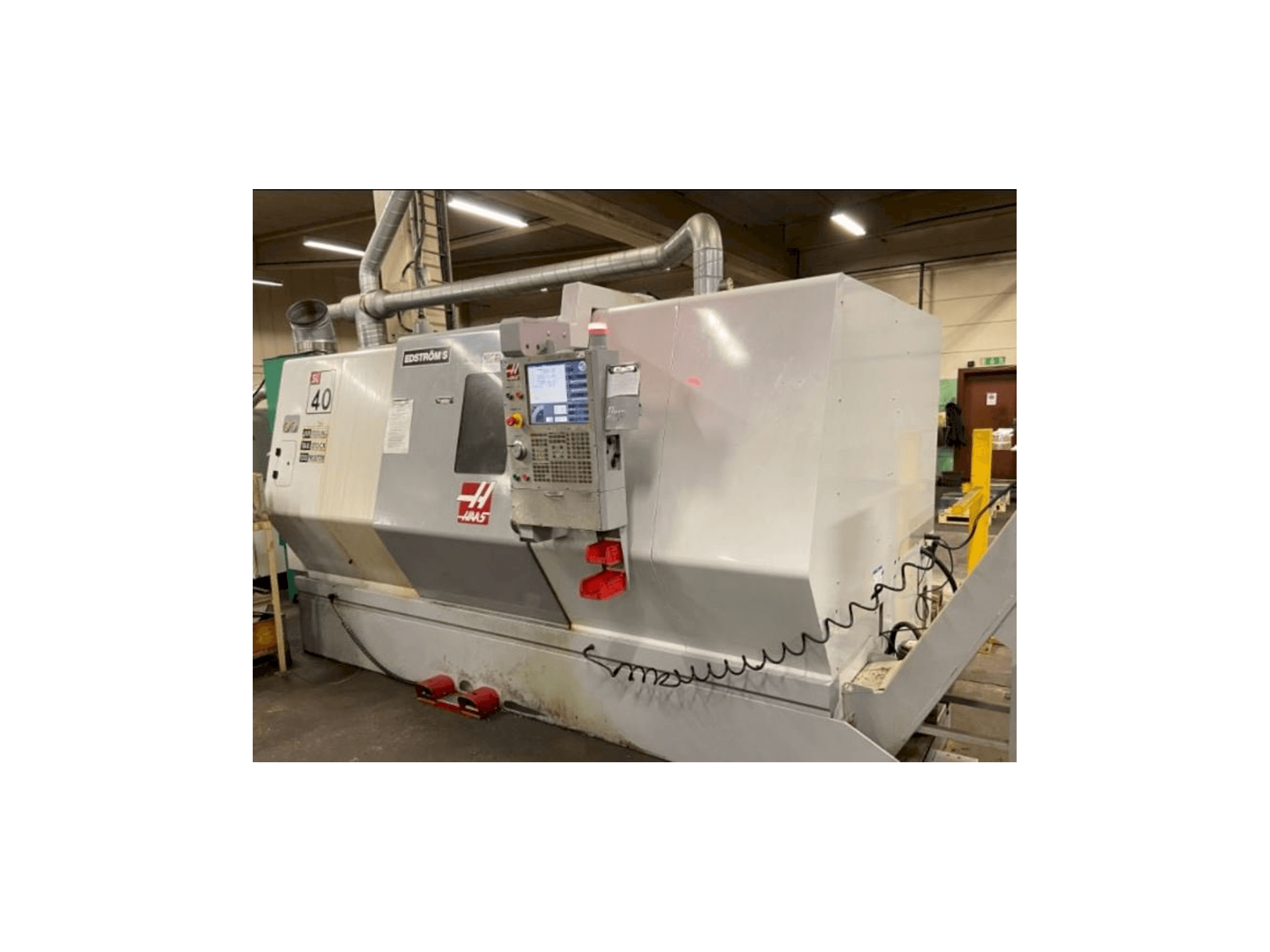

This HAAS SL-40 Lathe was built in the year 2007 in United States. This 3 axis machine is equipped with a control unit of the same brand. It performs with a spindle speed up to 2400 rpm. This machine is in good conditions.
Overview
- brand: HAAS
- year: 2007
- MODEL: SL-40
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: HAAS
Technical Information - HAAS SL-40
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2337 mm
- Machine Height: 2261 mm
- Machine Weight: 11340 kg
Movement
- Number of Axes: 3
- X-axis Travel: 432 mm
- Y-axis Travel: 1118 mm
Technical Specification
- Spindle Power: 29.42 kW
- Spindle Speed: 2400 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine in good condition
Technical Machine Benefits
- Swing over bed 1016 mm
- Swing over cross-slide 635 mm
- Maximum cutting diameter 648 mm
- Distance between centres 1295 mm
- Maximum cutting length 1118 mm
- Bar capacity 102 mm
- Turret 10 positions 3 jaw chuck 15'', tool setter, coolant, tailstock, swarf conveyor
- 3 jaw chuck 15'', tool setter, coolant, tailstock, swarf conveyor
- Milling rpm 3000, c axis 0. 01 degrees
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
