➤ HAAS SL-40 | Lathe For Sale

Show in original language

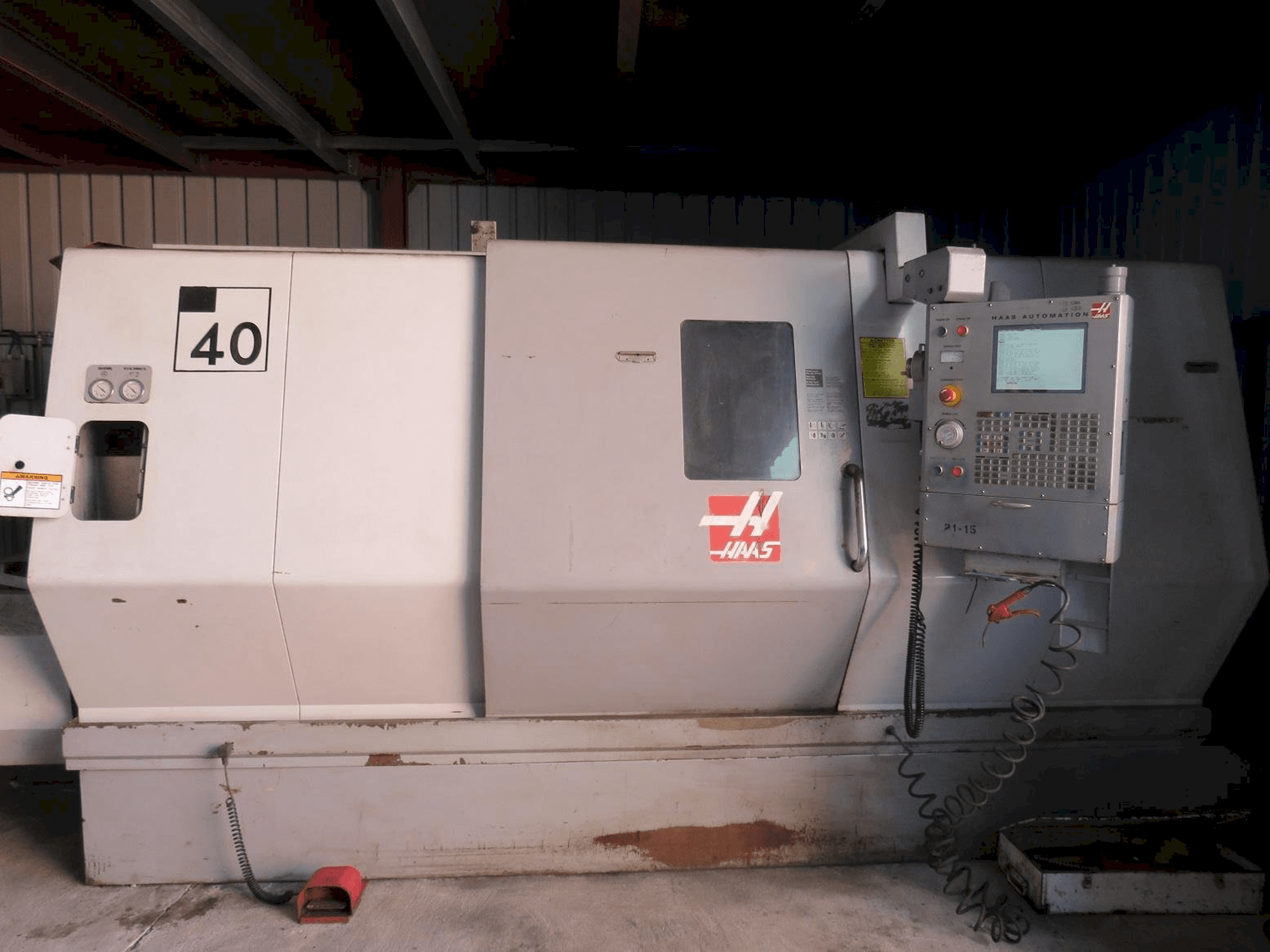

This HAAS SL-40 Lathe was built in 2006. It has been on for 14285 hours of which 7990 are spindle hours. The 2 axis machine is operated through a same brand control unit. It can work with a spindle speed range between 24 - 2400 rpm. It includes a programmable counterpoint and a measuring arm.

Overview

brand: HAAS
year: 2006
MODEL: SL-40
production hours: 7990
application type: Turning
Location: Portugal
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-40

General Data

Measurements width: 4572 mm
Measurements depth: 2286 mm
Measurements height: 2286 mm
Machine weight: 11340 KG

Control Unit

Model: AUTOMATION
Brand: HAAS

Main drive

Spindle speed range: 24 - 2400 1/MIN
Spindle motor power: 29.8 kW
Number of axis: 2

Turret

Number of tool slots: 10

Media

Power consumption: 45 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum cutting diameter: 648 mm
- - Maximum length of cut: 1118 mm
- - Maximum bar capacity: 116 mm
- - Allowable diameter on the busbar: 1118 mm
- - Xz axis strokes: 432 x 864 mm
- - Xz axes rapid feedrate: 18 m/min
- - Nose: a2-8
- - Diameter: 117. 3 mm
- - Tailstock taper: mt-4
- - Tailstock body/travel: 1117. 6 mm
Qualitative Machine Benefits:
- - Machine dimensions with chip conveyor: 5334 x 2286 x 2286 mm
- - Programmable counterpoint
- - Measuring arm
- - Hard disk
- - Usb port

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
