➤ Used HAAS ST-20Y - 2023 - Lathe For Sale

Show in original language

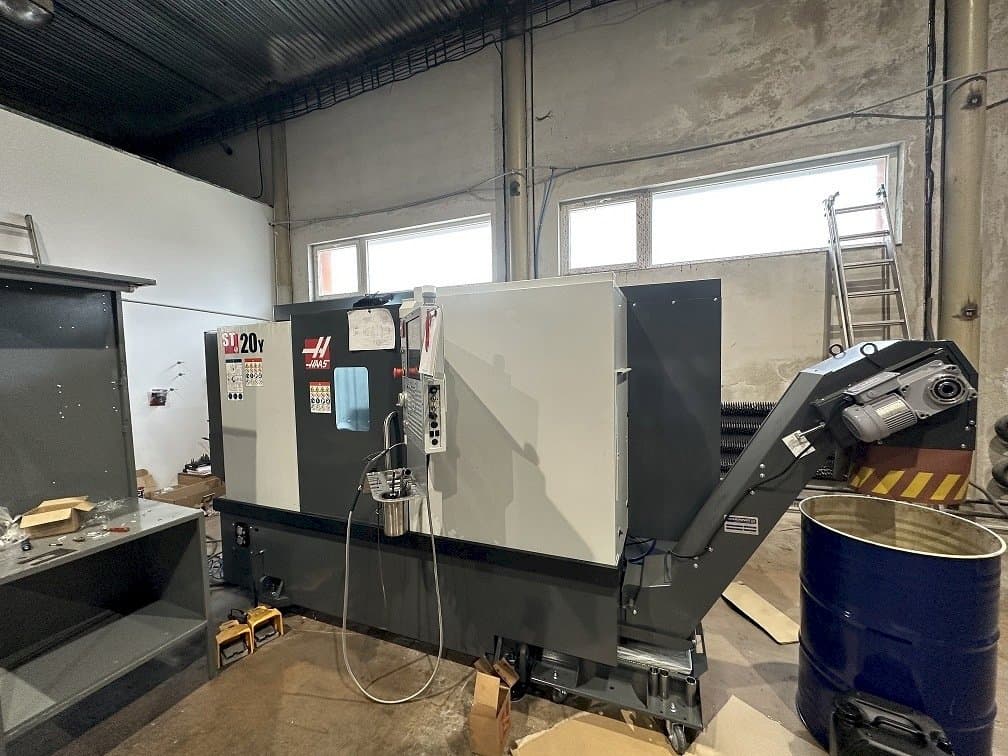

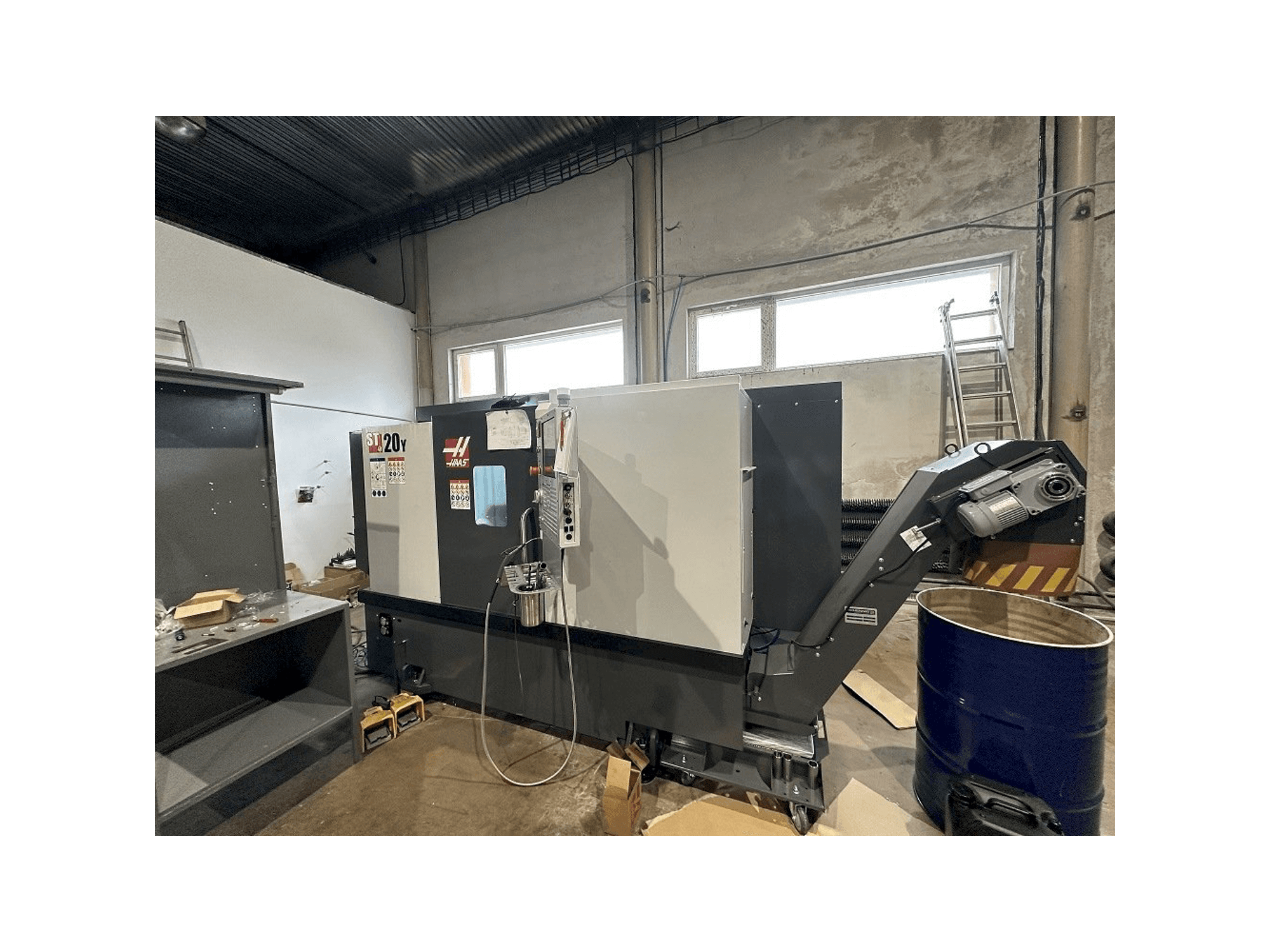

This HAAS ST-20Y Lathe was manufactured in the year 2023 in the United States and has 226 production hours, of which 29 are spindle hours. It is equipped with a HAAS control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: HAAS
year: 2023
MODEL: ST-20Y
production hours: 226
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-20Y

General Data

Measurements width: 3640 mm
Measurements depth: 2290 mm
Measurements height: 2340 mm
Machine weight: 4750 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 213 mm
Y-AXIS Movement: +-51 MM
Z-AXIS Movement: 572 mm1

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional equipment

- Set of BMT45 tool holdesr incl. 2 driven

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning dieameter 533 mm
- - Max. Cutting dia. 298 mm
- - Chuck size 210 mm
- - Bar diameter 63. 5 mm
- - Rapid feedrates x/y/z 12/12/24 m/min
- - Spindle motor power 14. 9 kw
- - Spindle through hole dia. 88. 9 mm
- - Spindle milling power (c axis) 3. 7 kw, speed 60 rpm, indexing 0. 01 deg.
- - Coolant tank 208 litres
- - Y axis, tool probe, hydraulic programmable tailstock
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
