HAAS ST-35L

Photo Gallery

HAAS - ST-35LBE-TUR-HAA-2021-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

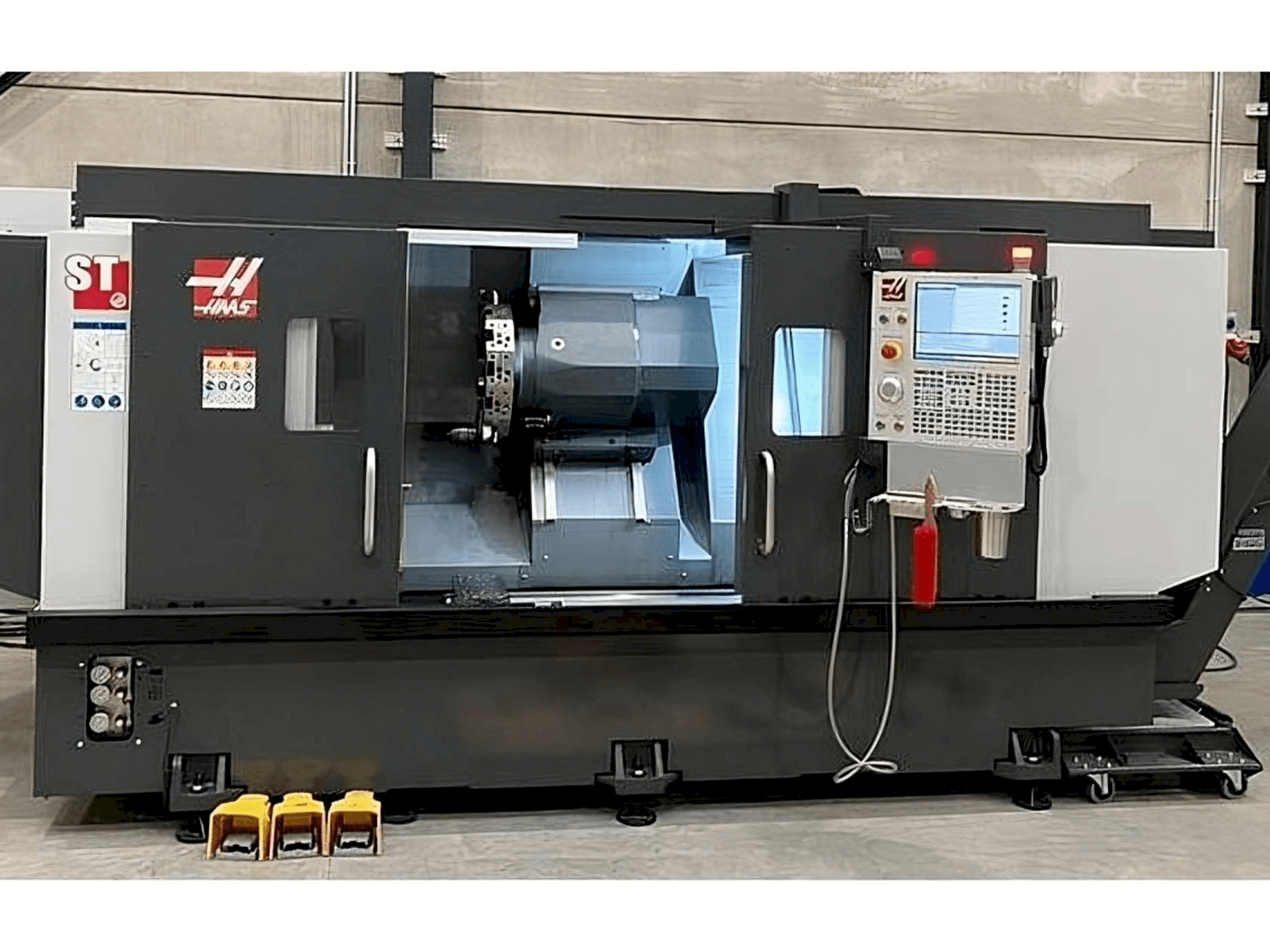

HAAS ST-35L Lathe

Show in original language

This HAAS ST-35L Lathe was built in 2021 in the United States and has low hours. It is equipped with a Haas control unit. The machine has a spindle speed of 3200 rpm.

Overview

brand: HAAS
year: 2021
MODEL: ST-35L
application type: Turning
Location: Belgium
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-35L

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3200 1/MIN
Spindle motor power: 29,8 kw

Movement

X-AXIS Movement: 239 mm
X-AXIS Rapid traverse: 24,0 m/min
Z-AXIS Movement: 1588 mm
Z-AXIS Rapid traverse: 24,0 m/min

Tools

Number of stations: 12

Additional equipment

- Comes with a nice set of tooling

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 305 mm
- - Max part swing: 533 mm
- - Max cutting diameter (with bot turret): 406 mm
- - Max cutting diameter (with bmt65 turret): 349 mm
- - Max cutting length (varies with workholding): 1588 mm
- - Bar capacity: 102 mm
- - Between centers: 1588 mm
- - Axis motors: max thrust x 18238 n, max thrust z 22686 n
- - Spindle nose: a2-8
- - Max torque: 576,0 nm @ 325 rpm
Qualitative Machine Benefits:
- - Max torque w/opt gearbox: 1898 nm @ 150 rpm
- - Boring bar rear clearance (from back of turret ): 102 mm
- - Coolant capacity: 208l
- - Can be inspected under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
