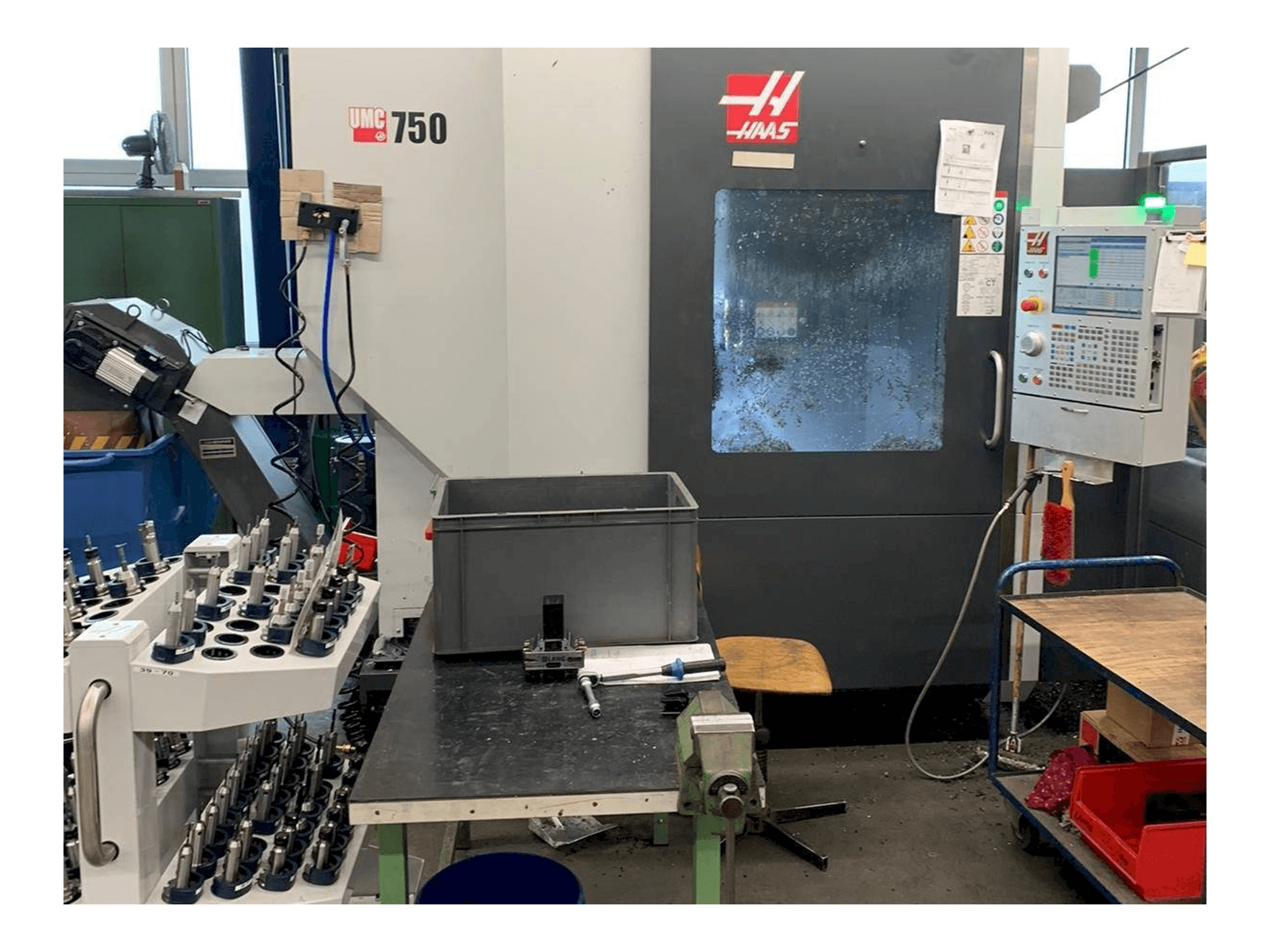

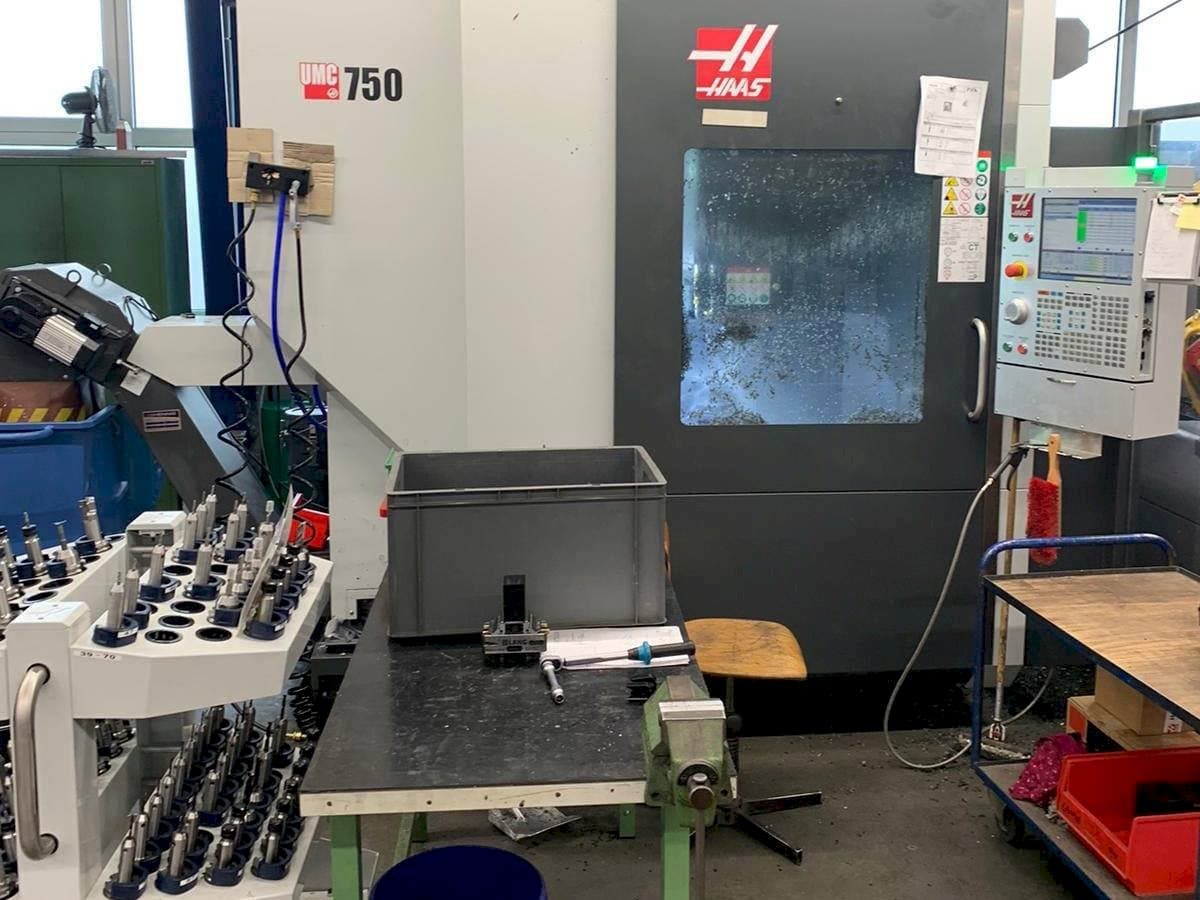

HAAS UMC - 750 Vertical Machining Center

Show in original language

This HAAS UMC - 750 Vertical Machining Center was manufactured in 2018 in the United States. This perfectly good machine can work with a spindle speed up to 12000 rpm.

Overview

brand: HAAS
year: 2018
MODEL: UMC - 750
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC - 750

General Data

Measurements width: 3978 mm
Measurements depth: 2387 mm
Measurements height: 2565 mm
Machine weight: 8700 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Interlocked guards
Remote hand wheel
Hard disk 1gb
Usb port

Technical Machine Benefits

Feedrate 16. 5 m/min
Rapid feedrate 30. 5 m/min
Through spindle coolant
B axis: +110°/-35°
C axis: 360°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
