Used Vertical machining centre HAAS UMC750SS (2019) for sale | GINDUMAC.COM

Show in original language

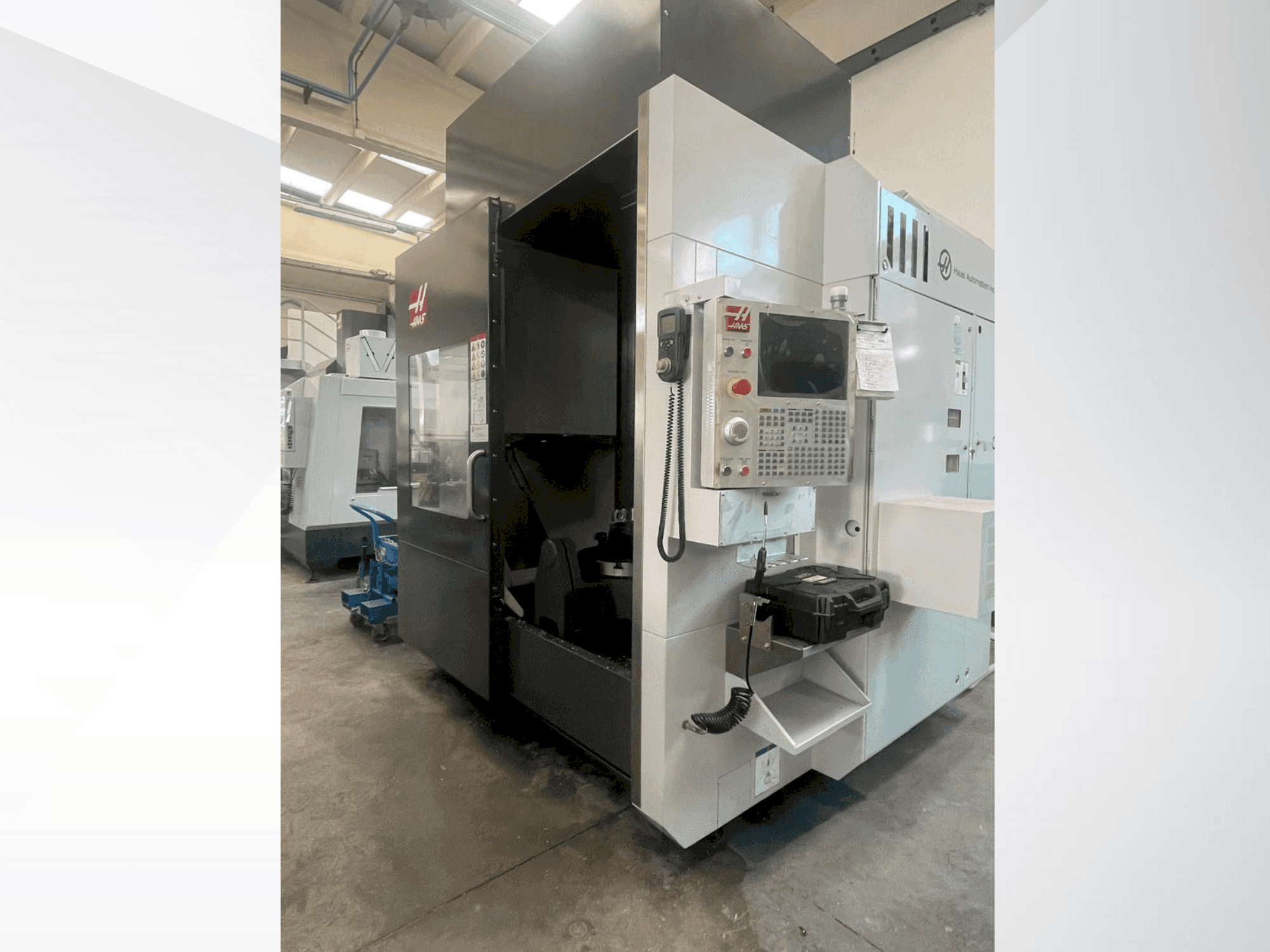

This HAAS UMC750SS Vertical machining centre was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit with Ethernet interface. The machine disposes of a 1 GB of memory for programs, a 15” COLOR LCD monitor, a USB port with memory lock key and a power failure detection module. There are a lot of options fitted on the machine that can be included.

Overview

brand: HAAS
year: 2019
MODEL: UMC750SS
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC750SS

Control Unit

Interface: Ethernet
Brand: HAAS

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 762mm
Y-AXIS Movement: 508mm
Z-AXIS Movement: 508mm

Additional equipment

- Belt screw conveyor
- Coolant passage through the spindle 21 Bar
- Programmable coolant nozzle
- Cooling unit for CNC control cabinet
- HAAS fairing condensation and smoke exhaust system
- Automatic coolant replenishment system
- Oil skimmer for the liquid tank
- Auxiliary coolant filter system
- Work Table Light

Additional Information

Machine Benefits

Technical Machine Benefits:
- - With integrated high-speed two-axis rotary tilting table diameter 500 mm
- - Cone ct40 din 69871
- - 30 hp (22. 4 kw) vector drive 15,000 rpm.
- - 40 + 1 lateral high speed tool changer
- - Rapid feed 30. 5 m/min.
- - High speed processing
- - 15” color lcd monitor
- - Power failure detection module
- - Rigid tapping and 284 liter cooling system
- - 1 gb of memory for programs // usb port, memory lock key
Qualitative Machine Benefits:
- - Intuitive wireless probe system
- - Touchscreen remote electronic handwheel with color display

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
