HAAS - VF-11/50GB-MIL-HAA-2012-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-11/50 Vertical Machining Center
Show in original language

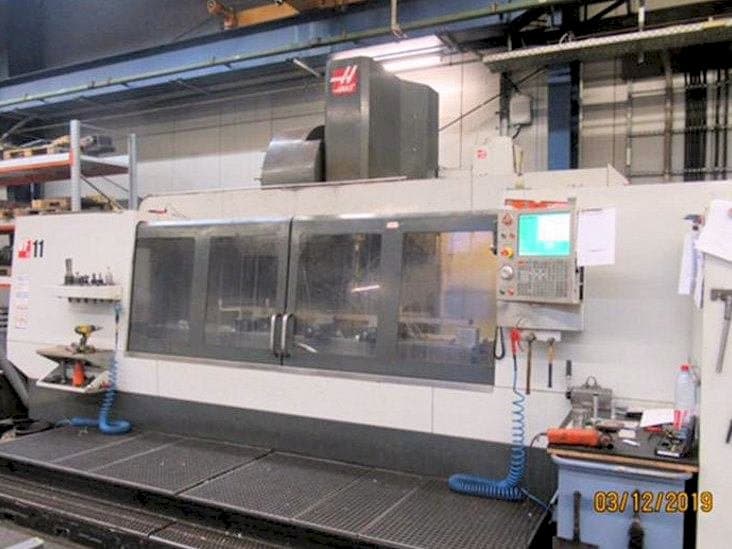

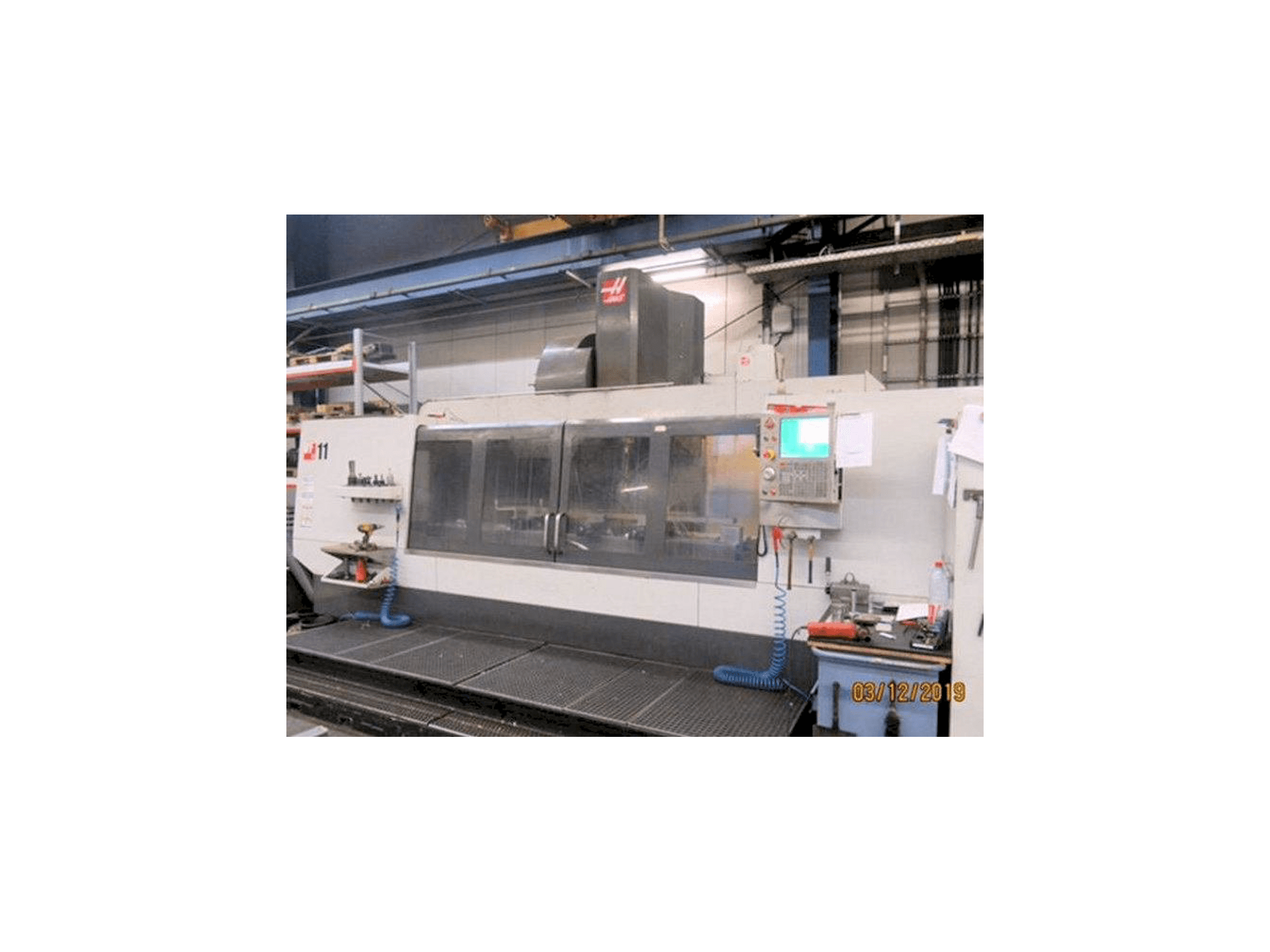

This HAAS VF-11/50 Vertical Machining Center was built in 2012 in the United States. It is equipped with a control unit of the same brand. This machine can operate with a spindle speed up to 7500 rpm. It is in very good conditions.
Overview
- brand: HAAS
- year: 2012
- MODEL: VF-11/50
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-11/50
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 3531 mm
- Machine Height: 3150 mm
- Machine Weight: 13336 kg
- Table Length: 3048 mm
- Table Width: 711 mm
Movement
- X-axis Travel: 3048 mm
- Y-axis Travel: 1016 mm
- Z-axis Travel: 762 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 7500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
Technical Machine Benefits
- Spindle motor power 29. 4 kw
- Through spindle coolant
- Wireless intuitive probing system
- Remote hand wheel
- Min. -max. Height under spindle 102-864 mm
- Coolant
- Tool setter + spindle probe
- High speed machining
- Memory 750 mb
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
