HAAS - VF-2BHEPL-MIL-HAA-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

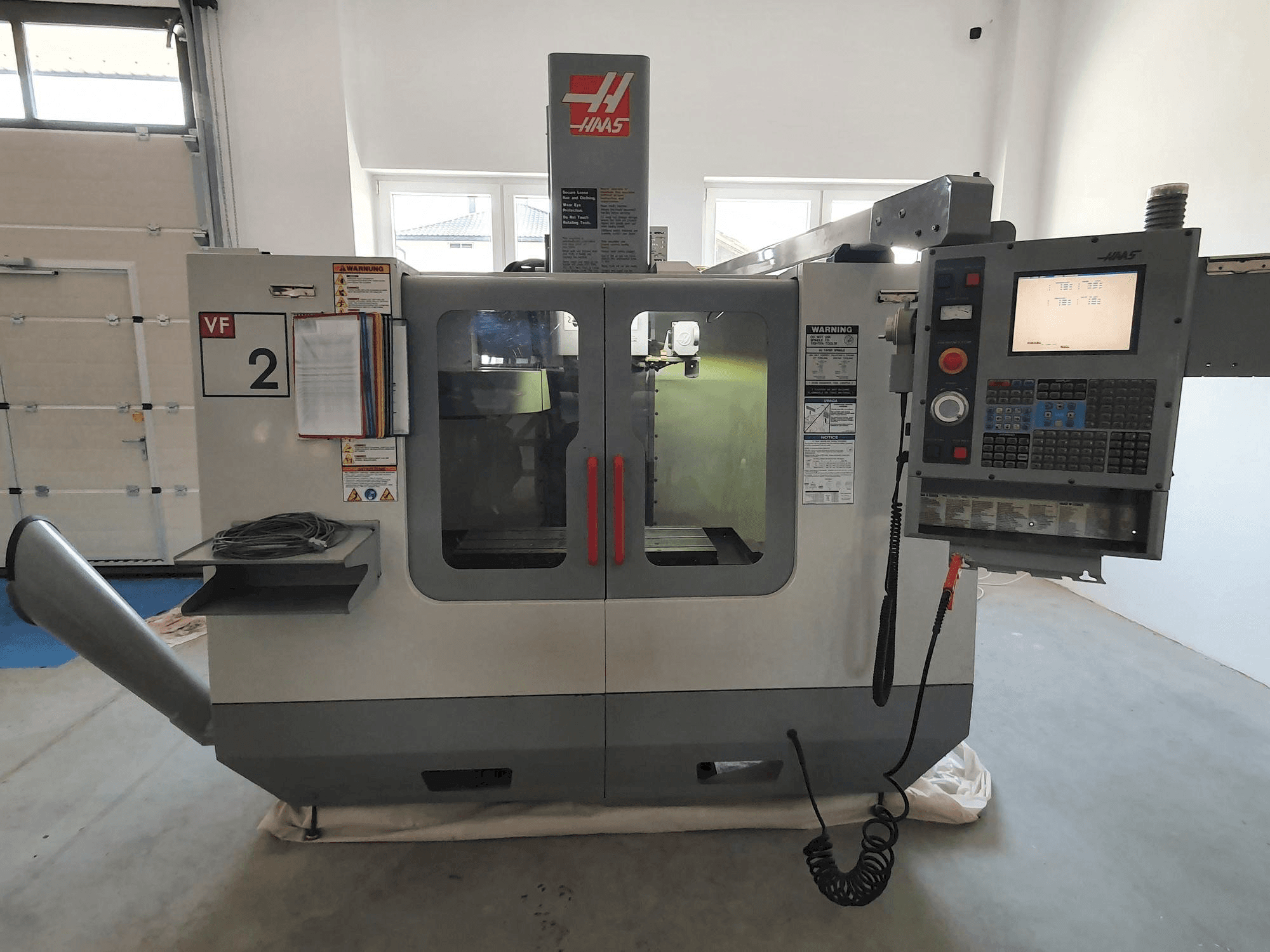

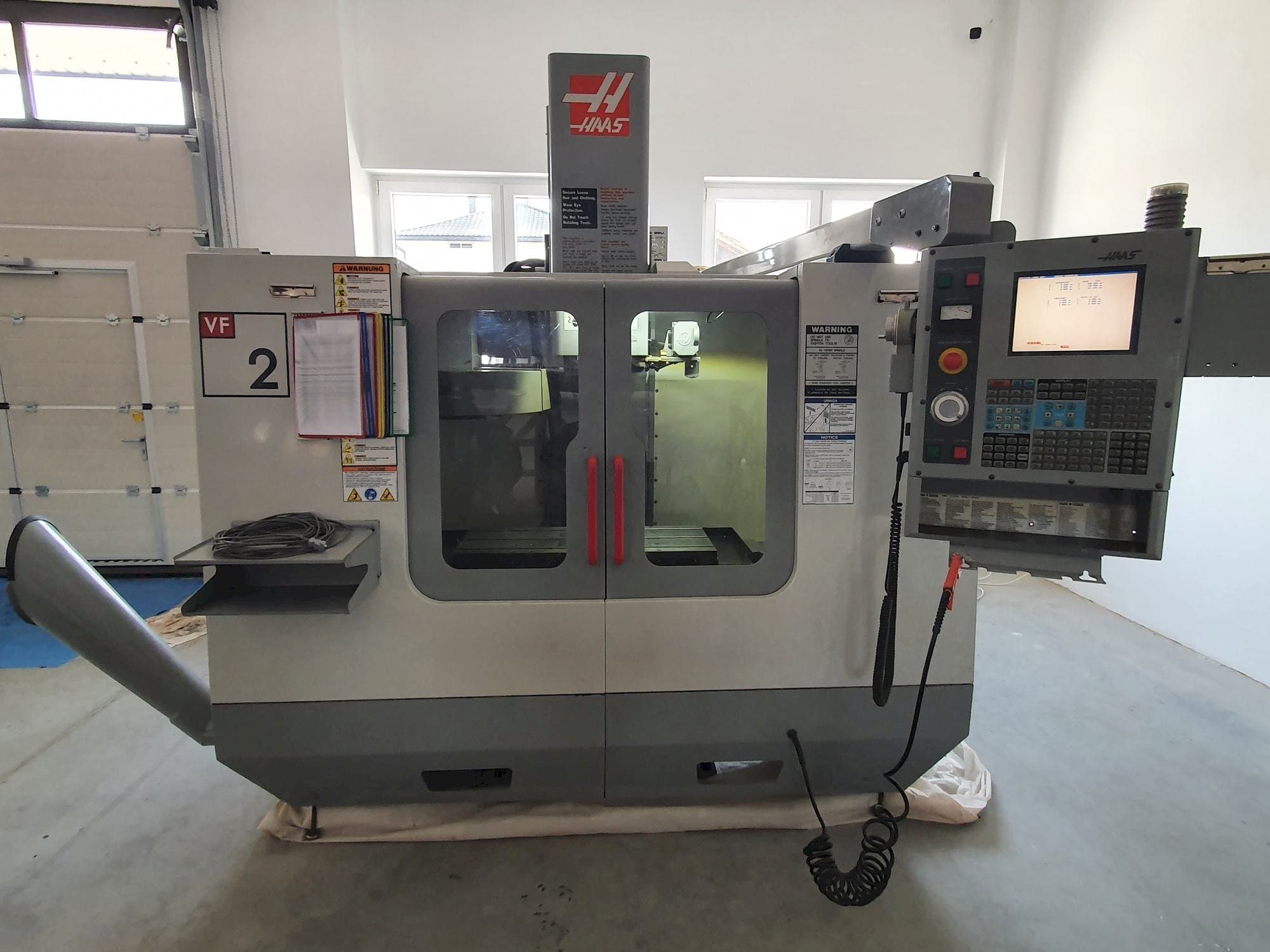

This HAAS VF-2BHE vertical machining machine was built in 2004 in the United States. This 3 axis machine is operated through a control unit of the same brand. It has a production record of 6696 working hours. This machine has a spindle speed up to 7500 rpm. It is fully operational, in good conditions and ready for tests.

Overview

brand: HAAS
year: 2004
MODEL: VF-2BHE
production hours: 6696
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-2BHE

General Data

Measurements width: 2362 mm
Measurements depth: 2235 mm
Measurements height: 2692 mm
Machine weight: 3860 Kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 7500 1/MIN
Tool taper: CT40
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 914 MM
Outer width: 356 mm

Turret

Number of tool slots: 20 pcs

Media

Main electronic connection: 306 - 460 V

Additional equipment

- Two-stage spindle gear transmission
- PCOOL (Programmable Coolant Nozzle)
- Spiral chip ejector
- Remote-fishing rod

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic lubrication system
- - Preparation for 4th axes
- - Macro functions
- - G68 rotation and scaling option
- - Tapping option
- - Hsm option
- - 16 mb internal memory
- - Lighting
- - The floppy disk drive has been replaced with a usb port
- - Power connection
Qualitative Machine Benefits:
- - The machine is fully operational, in very good condition.
- - No tooling included
- - Ready for tests
- - Manual in english
- - It is out of the production now

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
