Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
HAAS - VF-3 SSYTCZ-MIL-HAA-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-3 SSYT vertical machining center

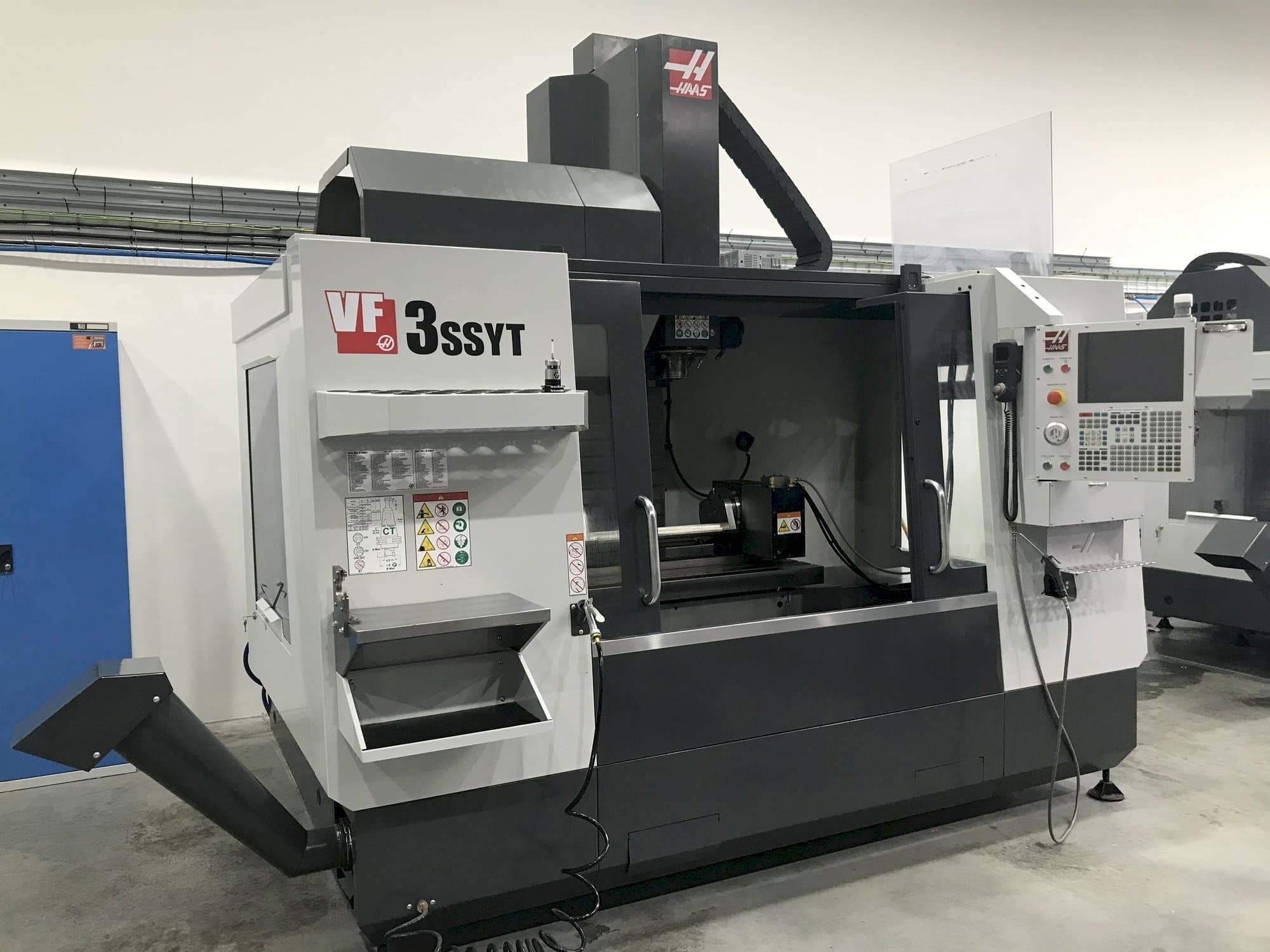

This HAAS VF-3 SSYT vertical machining center was manufactured in the United States in the year 2019. It has only 2001 production hours, of which 431 are cutting hours. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 12000 rpm. It is in excellent conditions.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF-3 SSYT
- production hours: 2001
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-3 SSYT
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Weight: 7150 kg
- Table Length: 1372 mm
- Table Width: 610 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 635 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Excellent condition
Technical Machine Benefits
- Spindle motor power 22. 4 kw
- Max. Motor torque 122 nm
- Distance spindel nose-table 107-742 mm
- Max. Working feedrate 21. 2 m/min
- Rapid feedrate 35. 6 m/min
- 4th axis table (hrt 210)
- Renishaw probes set (wips-r)
- Cooling through spindle
- High-speed machining, auxiliary coolant filter (acf), remote handle control lcd and wheel
- Programmable cooling nozzle (p-cool)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
