HAAS - VF-3ES-MIL-HAA-2014-00005

Name: HAAS VF-3
Brand: HAAS
SKU: ES-MIL-HAA-2014-00005
Price: 6568650 INR
Availability: InStock

Rs. 6,568,650

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-3 - Vertical Centre For sale | gindumac.com

Show in original language

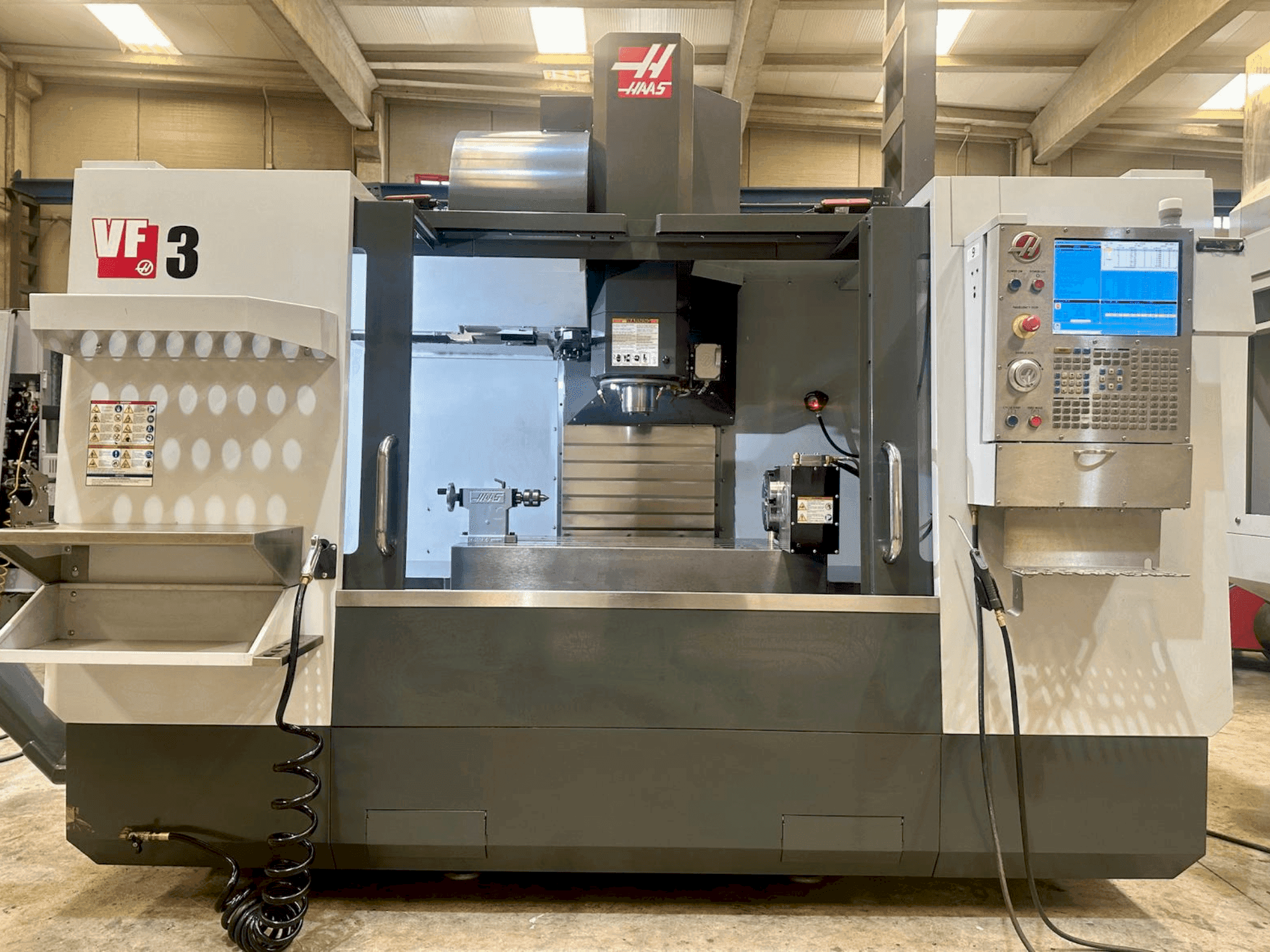

This 4-axis HAAS VF-3 vertical machining centre was manufactured in 2014. It features a robust 1016 mm X-axis travel, 508 mm Y-axis, and 635 mm Z-axis, ensuring versatile machining capabilities. The spindle delivers a maximum power of 22.4 kW and speeds up to 8100 rpm. Equipped with a 24-slot tool changer and additional 4th axis for complex operations. A great opportunity to buy this HAAS VF-3 vertical machining centre. Contact us for further details regarding this vertical machining center.

Overview

brand: HAAS
year: 2014
MODEL: VF-3
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - HAAS VF-3

Main drive

Number of spindles: 1
Spindle speed range: 8100 rpm 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 4

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1219 mm
Outer width: 457 mm
Number of tslots: 5
Distance between: 80 mm
Table load: 1588 kg

Tools

Max weight: 5.4 kg
Max tool diameter: 89 mm

Additional equipment

- Tool Changer Type: Random
- Tool Changer Capacity: 24
- Probing
- Coolant and Chip Treatment
- Tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slot width: 15. 90 mm to 16. 00 mm
- - High spindle power and speed, extensive tool capacity, and advanced table specifications for handling heavy loads.
Qualitative Machine Benefits:
- - Enhanced precision with probing and 4th axis capabilities, efficient chip and coolant management.

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
