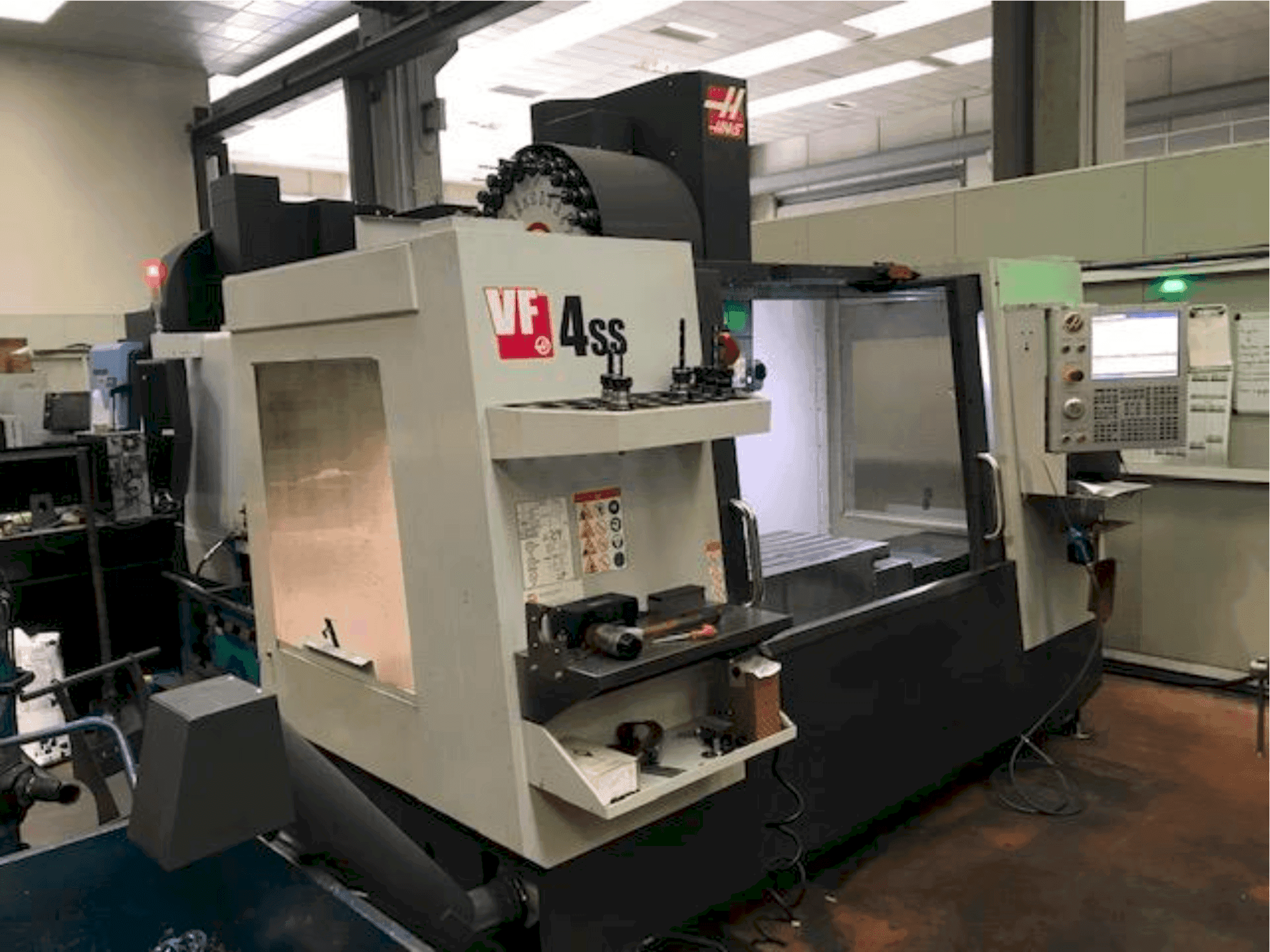

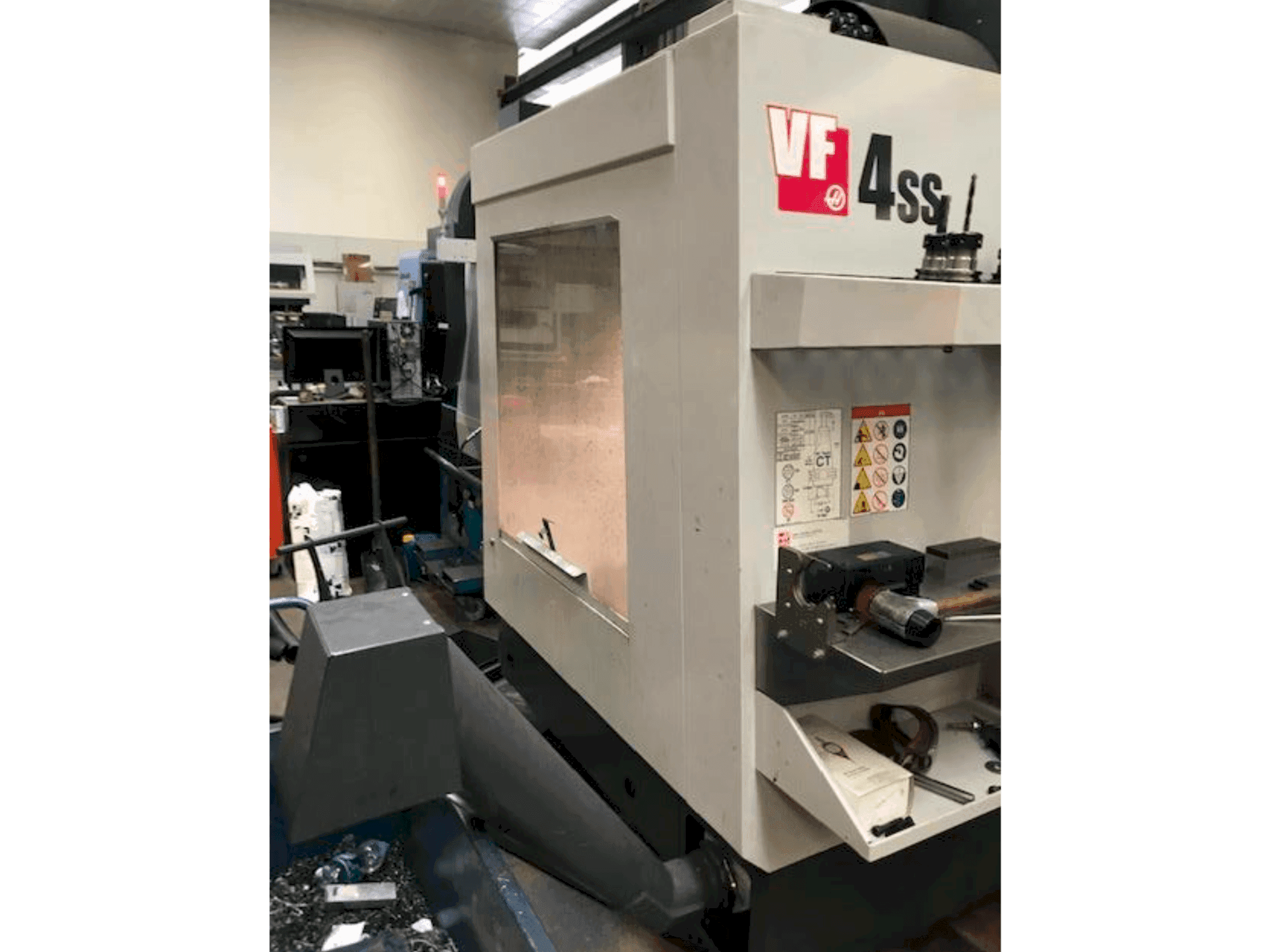

HAAS VF 4 SS Vertical Machine Center

Show in original language

This HAAS VF 4 SS Vertical Machine Center was made in the year 2018 in the United States. It is equipped with a Haas control unit. The machine has a spindle speed of 12000 rpm.

Overview

brand: HAAS
year: 2018
MODEL: VF 4 SS
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF 4 SS

General Data

Machine weight: 6278 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kw
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1321 mm
Outer width: 495 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance table to spindle nose 742 mm
- - Iso 40
- - Tool changer 24 + 1 positions with exchange arm
- - Chip conveyor
- - High pressure refrigeration through spindle 20 bar
- - P cool
- - 4th axis preparation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
