- HAAS VF-6 vertical machining machine

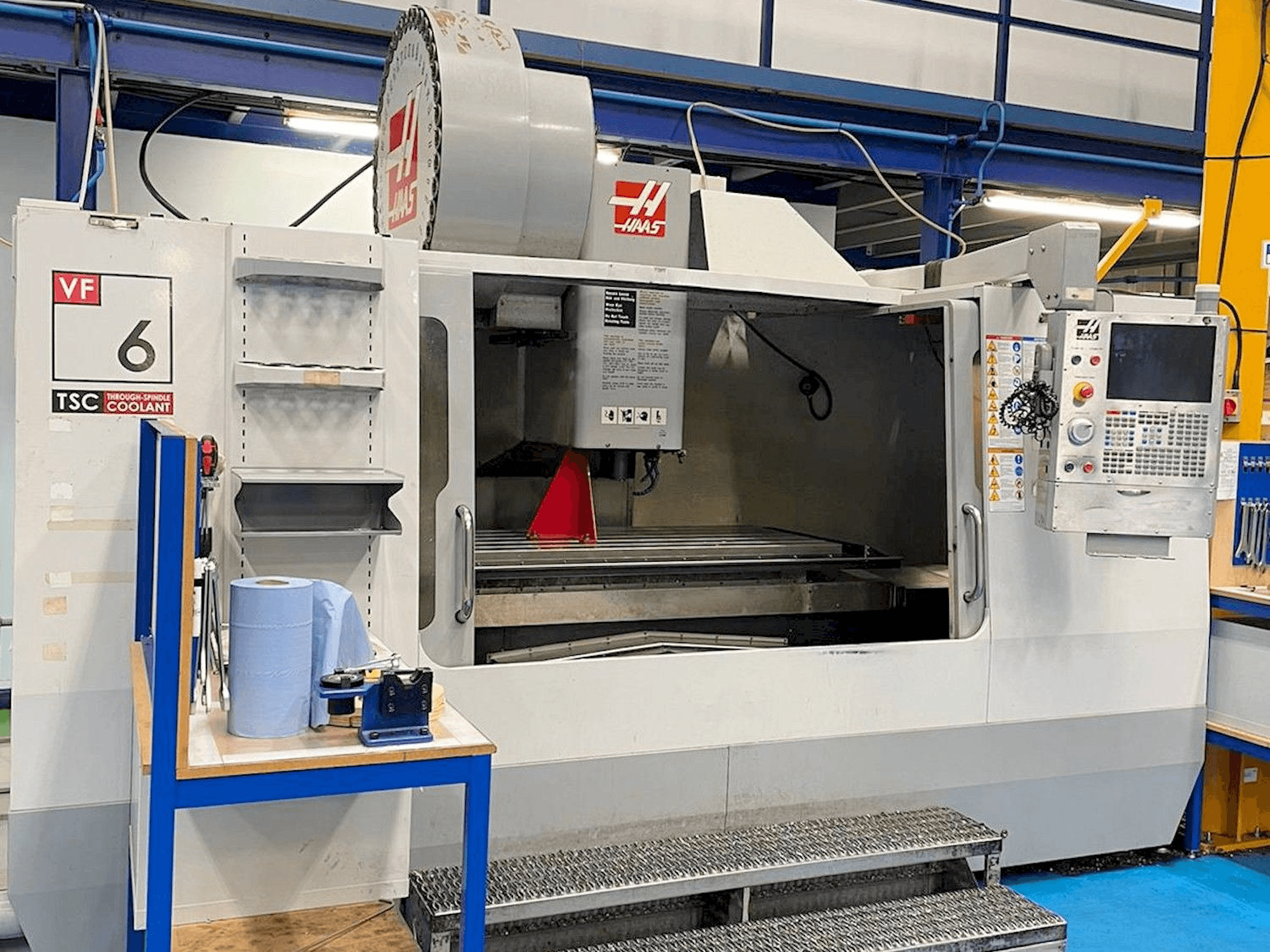

This HAAS VF-6 vertical machining machine was built in 2009 in the United States. This 3 axis machine is operated through a control unit of the same brand. This machine has a spindle speed up to 7500 rpm. It is in very good conditions.
Overview
- brand: HAAS
- year: 2009
- MODEL: VF-6
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-6
General Data
- Measurements width: 2480 mm
- Measurements depth: 4000 mm
- Measurements height: 3100 mm
- Machine weight: 9526 kg
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 7500 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1626 mm
- Y-AXIS Movement: 813 mm
- Z-AXIS Movement: 762 mm
Workpiece
- Workpiece weight: 1814 kg
Table
- Outer length: 1626 mm
- Outer width: 711 mm
- TSlots size: 5
Tools
- Slots in storage: 40
- Type of tool holder: BT 40
Additional Information
- Technical Machine Benefits:
- - Spindle nose to table 102-864 mm
- - Through spindle coolant
- - Spindle motor power 20 hp
- - Swarf auger
- - Programmable coolant nozzle
- - 4th axis interface
- - Spindle probe
- Qualitative Machine Benefits:
- - Very good conditions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
