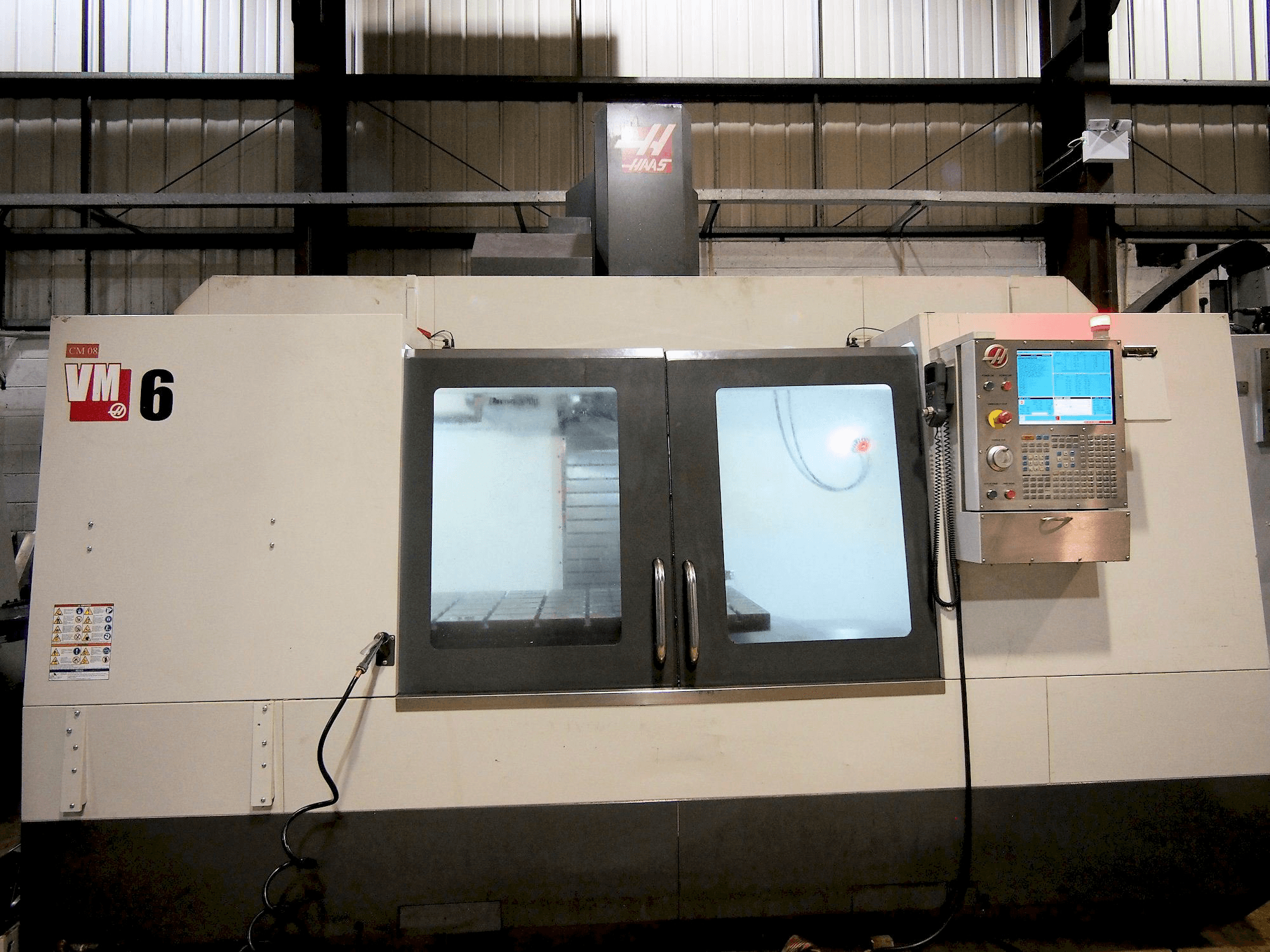

This HAAS VM-6 Vertical Machining Center was manufactured in the United States in the year 2015. It has only worked 6784 production hours since then. It is equipped with a HAAS control unit. This machine can work with a spindle speed up to 12000 rpm. It includes an Hard Disk of 1GB, a spindle probe, and a tool setter. It presents very good conditions.
Overview
- brand: HAAS
- year: 2015
- MODEL: VM-6
- production hours: 6784
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VM-6
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2921 mm
- Machine Height: 3277 mm
- Machine Weight: 10900 kg
- Table Length: 1626 mm
- Table Width: 711 mm
Movement
- X-axis Travel: 1626 mm
- Y-axis Travel: 813 mm
- Z-axis Travel: 762 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Number of Tools: 30
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Low hours
- Very good condition
Technical Machine Benefits
- Spindle motor power 22 kw
- Rapid feedrates 15. 2 m/min.
- Min. -max. Height under spindle 102-864 mm
- Remote hand wheel
- Hd capacity 1 gb
- Coolant
- Wips system (wireless intuitive probing system)
- Programmable coolant nozzle
- High speed machining function
- Spindle probe + tool setter
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
