HAITIAN - HTF 450xPL-INJ-HAI-2006-00001

Name: HAITIAN HTF 450x
Brand: HAITIAN
SKU: PL-INJ-HAI-2006-00001
Price: 2590450 INR
Availability: InStock

Rs. 2,590,450

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Used Haitian HTF 450x For sale | gindumac.com

Show in original language

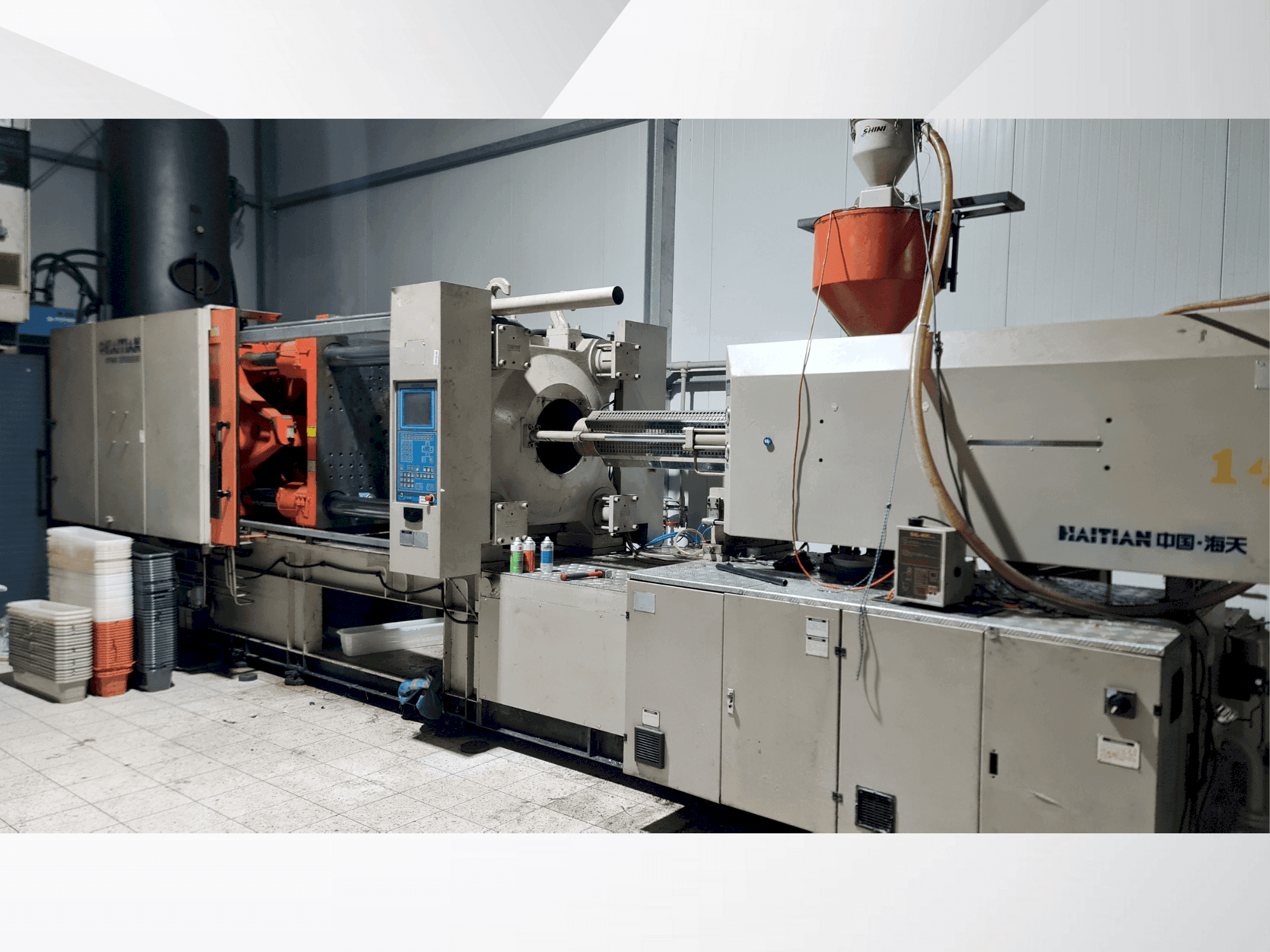

This Haitian HTF 450x was manufactured in 2006. It features a robust clamping force of 4500 kN and a screw diameter of 80 mm, capable of an injectable volume of 1860 cm³. The machine offers a mold opening stroke of 740 mm and operates with a pump motor power of 45 kW, ensuring efficient production cycles. Ideal for precision injection moulding, the Haitian HTF 450x machine we have for sale is designed for high performance. Contact us for more information.

Overview

brand: HAITIAN
year: 2006
MODEL: HTF 450x
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - HAITIAN HTF 450x

General Data

Measurements width: 2300 cm MM
Measurements depth: 8200 cm MM
Measurements height: 3200 cm MM
Machine weight: 19000 kg

Injection Unit

Screw diameter: 80 mm
Shot weight: 1693 g
Stroke volume: 1860 cm³
Injection pressure: 156 MPa BAR
Screw speed: 0-160 r/min
Heating capacity: 23.85 kW

Clamping unit

Clamping force: 4500 kN
Opening stroke: Mold Opening Stroke: 740 mm
Max open daylight: 1520 mm
Distance between bars: 780 x 780 mm
Mould height min: 330 mm
Mould height max: 780 mm
Ejector stroke: 200 mm
Ejector force for / back: 110 kN

Media

Pump drive power: 45 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Technical machine benefits: high injection pressure and screw speed, robust clamping force.
- - Qualitative machine benefits: adjustable die-height, substantial mold opening stroke.

Extra information

- machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
