HAITIAN - MA 7000/6800HR-INJ-HAI-2011-00002

Name: HAITIAN MA 7000/6800
Brand: HAITIAN
SKU: HR-INJ-HAI-2011-00002
Price: 6846200 INR
Availability: InStock

Rs. 6,846,200

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Used HAITIAN MA 7000/6800 - 2011 - Injection Moulding Machine For sale | gindumac.com

Show in original language

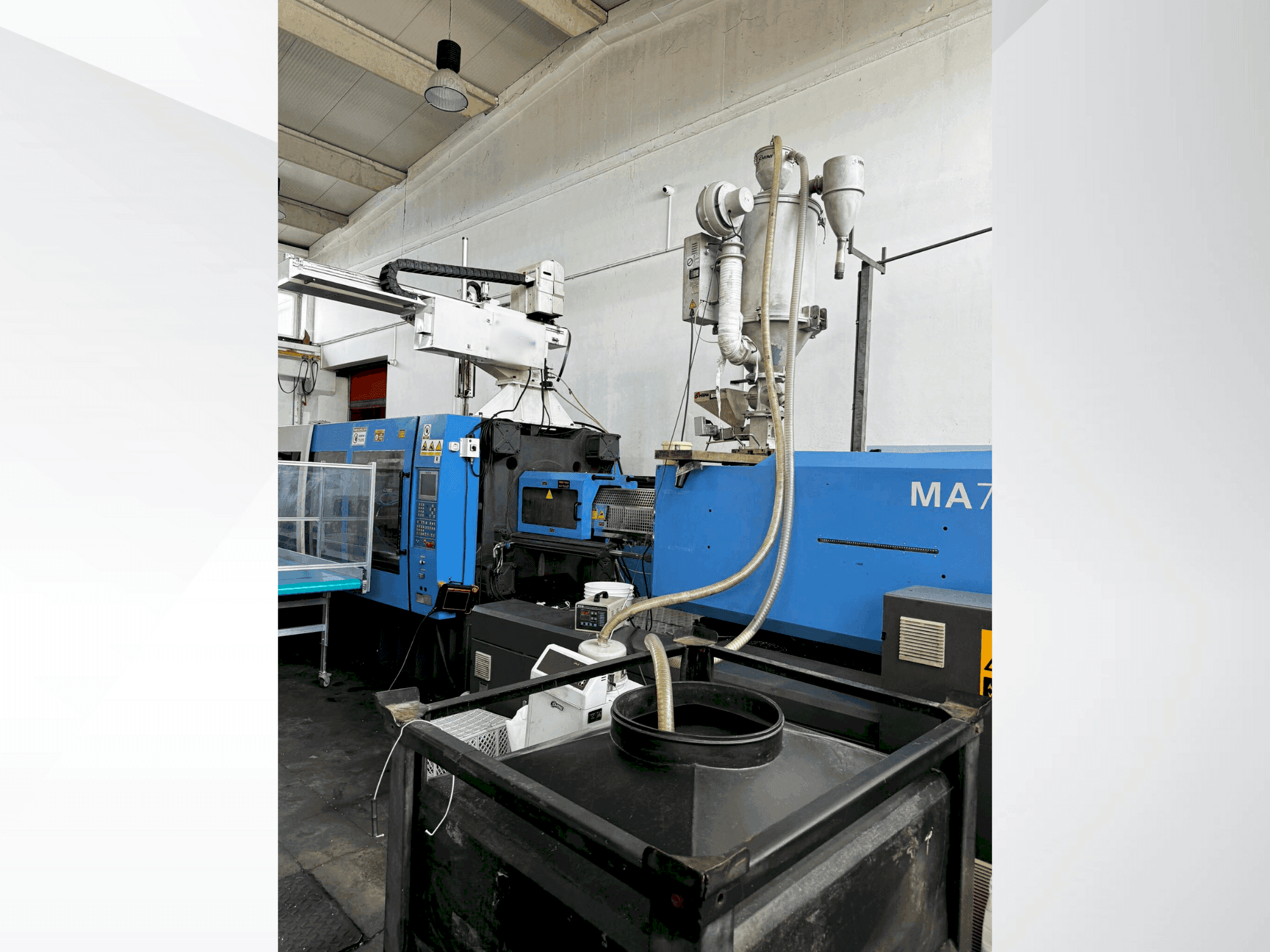

This HAITIAN MA 7000/6800 injection moulding machine was manufactured in 2011. It features a robust injection capacity of 3228 grams and an impressive maximum injection pressure of 1860 Bar. The machine's mold clamping force reaches up to 700 tons, supporting mold thicknesses from 400 mm to 940 mm. The spacing between tie bars is a generous 1840 mm. Consider the HAITIAN MA 7000/6800 machine we have for sale. For more information about this injection moulding machine, please reach out to us.

Overview

brand: HAITIAN
year: 2011
MODEL: MA 7000/6800
application type: Injection Moulding
Location: Croatia
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - HAITIAN MA 7000/6800

Main drive

Main motor power: 138.15 kw

Injection Unit

Screw diameter: 100 mm
Injection pressure: 3228 g BAR

Clamping unit

Clamping force: Maximum: 700 tons KN
Distance between bars: 1840 mm
Mould height min: 400 mm
Mould height max: 940 mm

Additional equipment

- Brand new injection cylinder
- New oil cooler
- ALFA ROBOT
- Without conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection capacity: 3228 g
- - Diameter of central ring: 220 mm
- - Distance between guide rails: 960x940 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
