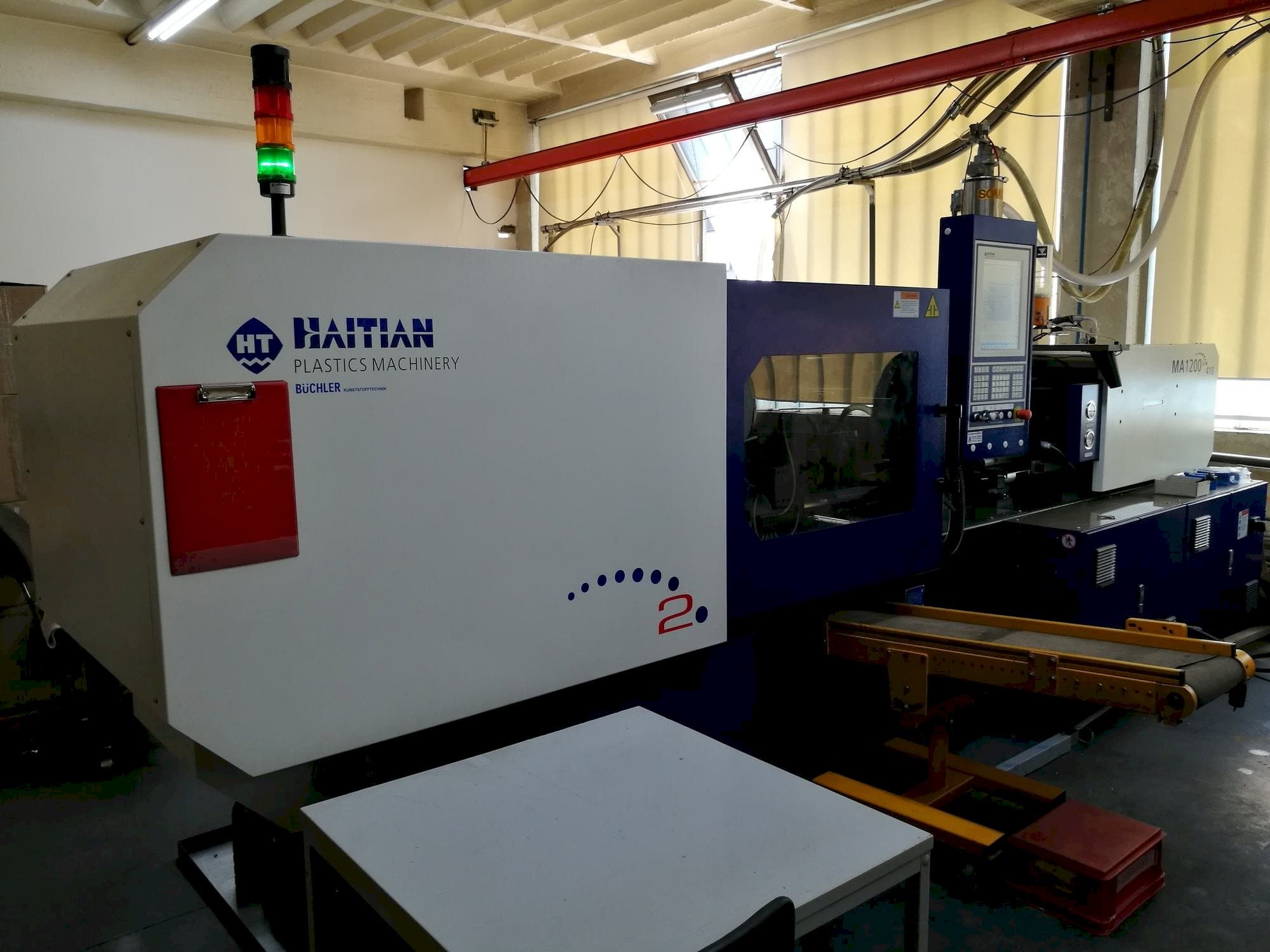

Front view of HAITIAN Mars 2 - 1200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAITIAN Mars 2 - 1200

Photo Gallery

HAITIAN - Mars 2 - 1200AT-INJ-HAI-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
HAITIAN Mars 2 - 1200 Injection Moulding Machine

Show in original language

This HAITIAN Mars 2 - 1200 Injection Moulding Machine was made in the year 2016 in China. It counts with approximately 500 hours. It is operated through a control unit of the same brand. This machine incorporates a clamping force of 1200 kN, and an injection pressure of 1920 bar.

Overview

brand: HAITIAN
year: 2016
MODEL: Mars 2 - 1200
production hours: 500
application type: Injection Moulding
Location: Austria
machine type: Electrical Injection Moulding Machine
control unit brand: HAITIAN

Technical Information - HAITIAN Mars 2 - 1200

General Data

Measurements width: 5030 mm
Measurements depth: 1310 mm
Measurements height: 2030 mm
Machine weight: 4350 kg

Control Unit

Model: HT
CNC main language: German
CNC language customizable: Yes
Brand: HAITIAN

Injection Unit

Screw diameter: 40 mm
Shot weight: 195 g/PS
Stroke volume: 214 CM³
Injection pressure: 1920 bar
Plasticizing rate max.: 139 g/s PS
Screw speed: 0-270 rpm
Heating capacity: 11,45 kW

Clamping unit

Clamping force: 1200 kN
Opening stroke: 360 mm
Distance between bars: 410x410
Mould height min: 150 mm
Mould height max: 450 mm
Size of mold platens: 615x615 mm
Ejector stroke: 120 mm
Ejector force for / back: 33 kN

Media

Main electronic connection: 400 V
Power consumption: 25 kVA

Additional Information

Additional equipment

Spare parts

Machine History

End product

Plastics parts

Material type

Plastics

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
