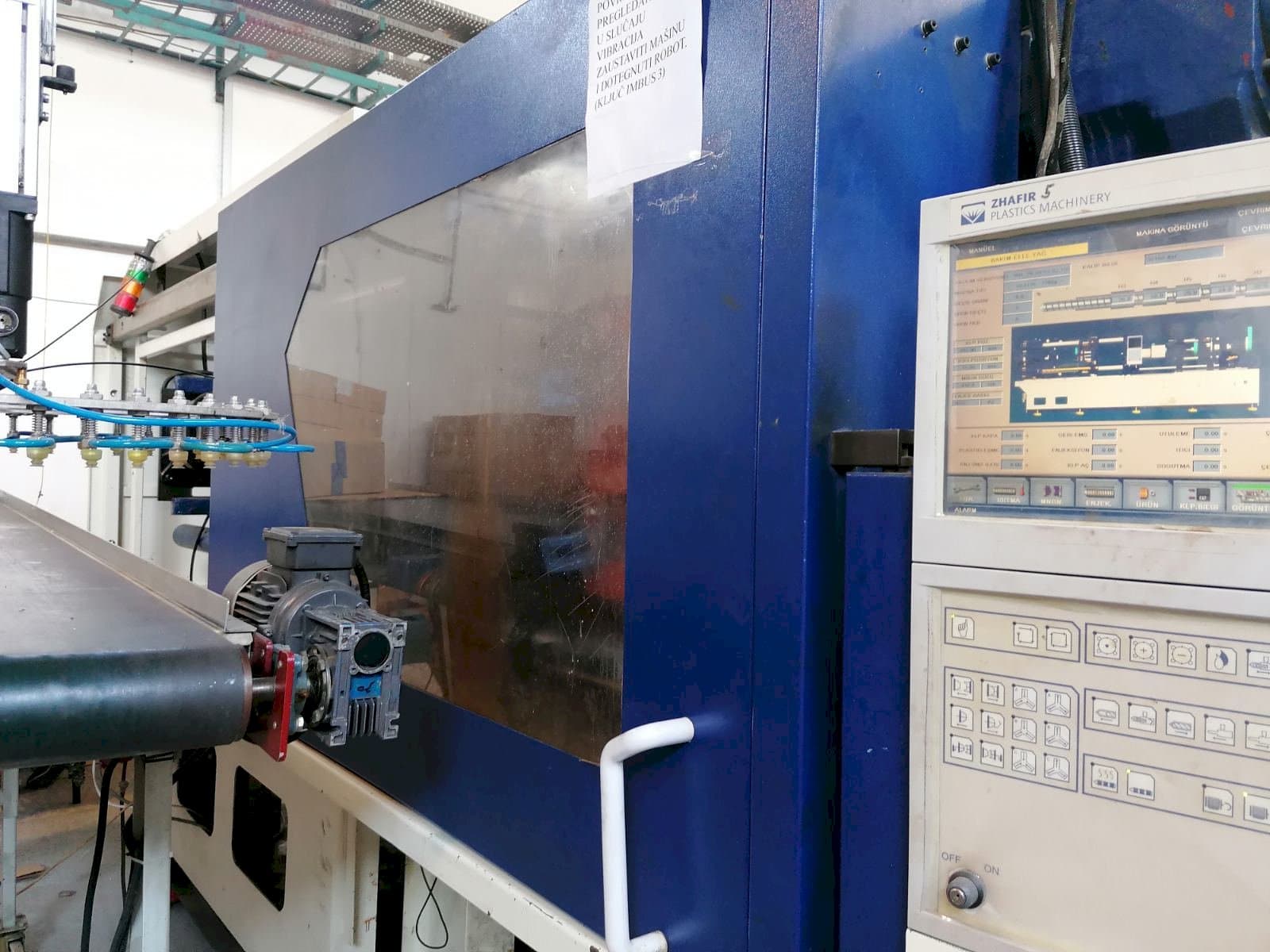

Front view of HAITIAN Zhafir 410 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAITIAN Zhafir 410

Photo Gallery

HAITIAN - Zhafir 410RS-INJ-HAI-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
HAITAIN Zhafir 410 Injection Moulding Machine

Show in original language

This HAITAIN Zhafir 410 Injection Moulding Machine was manufactured in the year 2013. This reliable machine can perform with a clamping force of 4100 kN and a screw diameter of 60 mm. It includes a Wittman robot, and a conveyor.

Overview

brand: HAITIAN
year: 2013
MODEL: Zhafir 410
application type: Injection Moulding
Location: Serbia
machine type: Electrical Injection Moulding Machine

Technical Information - HAITIAN Zhafir 410

General Data

Measurements width: 7660 mm
Measurements depth: 2150 mm
Measurements height: 2670 mm

Injection Unit

Screw diameter: 60 mm
Shot weight: 792 g (PS)
Stroke volume: 792 CM³
Injection pressure: 230 Mpa BAR
Screw speed: 2250 rpm
Nozzle pressure: 54 kN

Clamping unit

Clamping force: 4100 kN
Opening stroke: 660 mm
Distance between bars: 740 x 740 mm
Mould height min: 250 mm
Mould height max: 710 mm
Ejector stroke: 160 mm
Ejector force for / back: 58 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Compact five point toggle system
- - 6 stage speed and pressure adjustment
- - Central lubrication system
- - Parallel mould opening and ejector function
- - 3 modes of injection unit retraction
- - Advanced heating
Qualitative Machine Benefits:
- - Adjustable machine pads
- - Bearing support to hopper movement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
