HAMMERLE AP CNC 200 SID Bending Machine

Show in original language

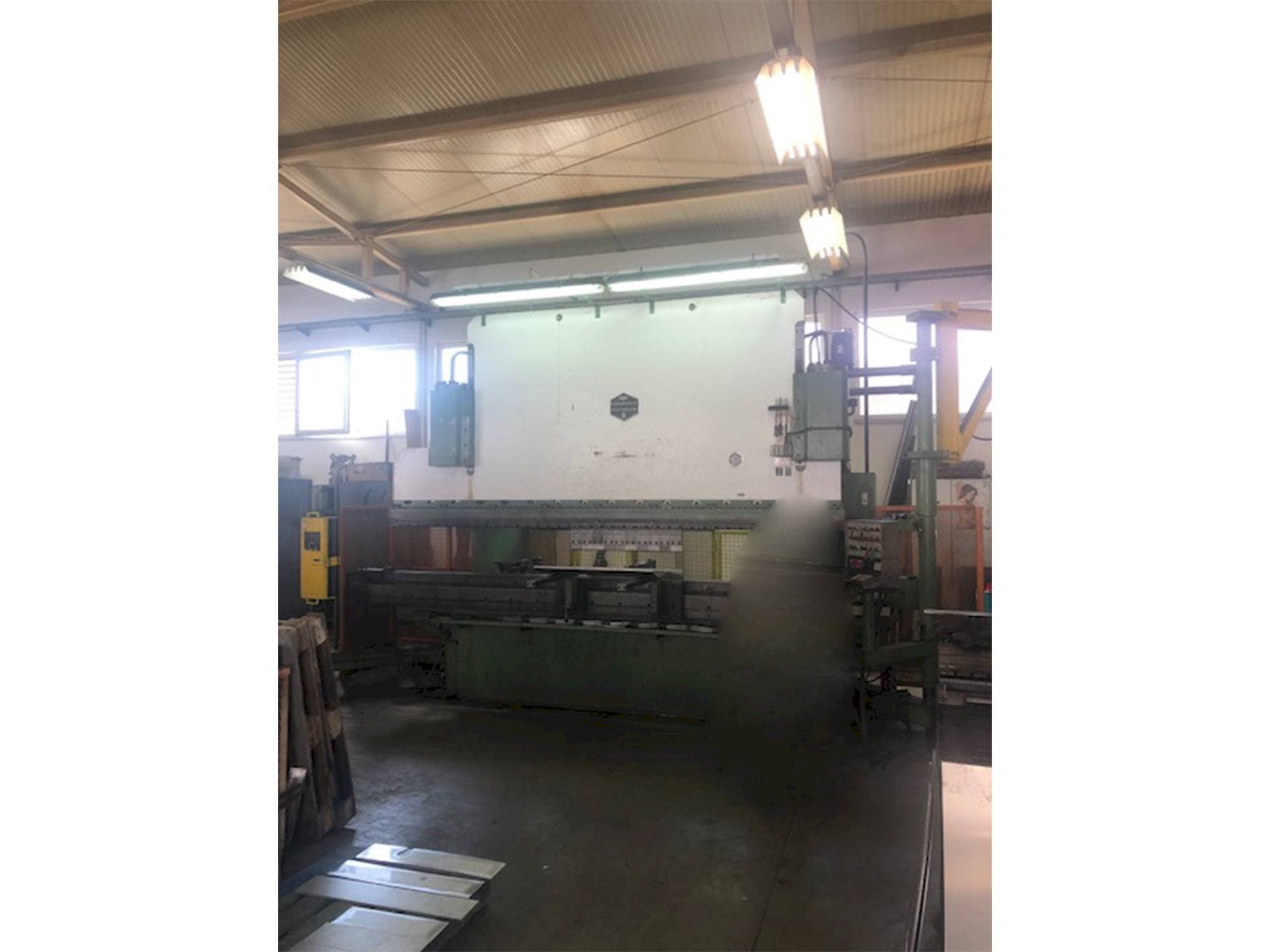

This HAMMERLE AP CNC 200 SID Bending Machine was manufactured in 1981. This machine works with a pressing force of 200 t and a bending width of 4000 mm. Includes a set of 20 pairs of upper and down tools total length 2000 mm.

Overview

brand: HAMMERLE
year: 1981
MODEL: AP CNC 200 SID
application type: Bending
Location: Serbia
machine type: Press Brake
availability: Sold

Technical Information - HAMMERLE AP CNC 200 SID

General Data

Measurements width: 5530 mm
Measurements depth: 3020 mm 3400mm
Measurements height: 3400 mm
Machine weight: 13608 kg

Main drive

Main motor power: 18,5 kW

Media

Main electronic connection: 3x380 V
Oil tank: 750 lit.

Additional Information

Machine history

Material thickness: 0,8 - 15mm

Machine Benefits

Technical Machine Benefits:
- - Max. Bending width 4000 mm
- - Max. Bending force 200t
- - Stroke (y - axis) 195mm, speeds 100/72 mm/ sec.
- - Nc - backgauge (x - axis) width 0 - 400mm, 400-800 mm, 800-1200 mm
Qualitative Machine Benefits:
- - Hydraulic cushion on the pusher
- - Hydraulic clamping of upper and lower tools
- - Mobile front consoles
- - Supporting rear consoles with lifting aid
- - Operation: hand/ fus
- - Nc programming by rapiset control
- - Extensive machine booker: assembly drawings, hydraulic, pneumatic, and electric schemes

Extra information

- Optional Set of 20 pairs of upper and down tools - total length 2000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
