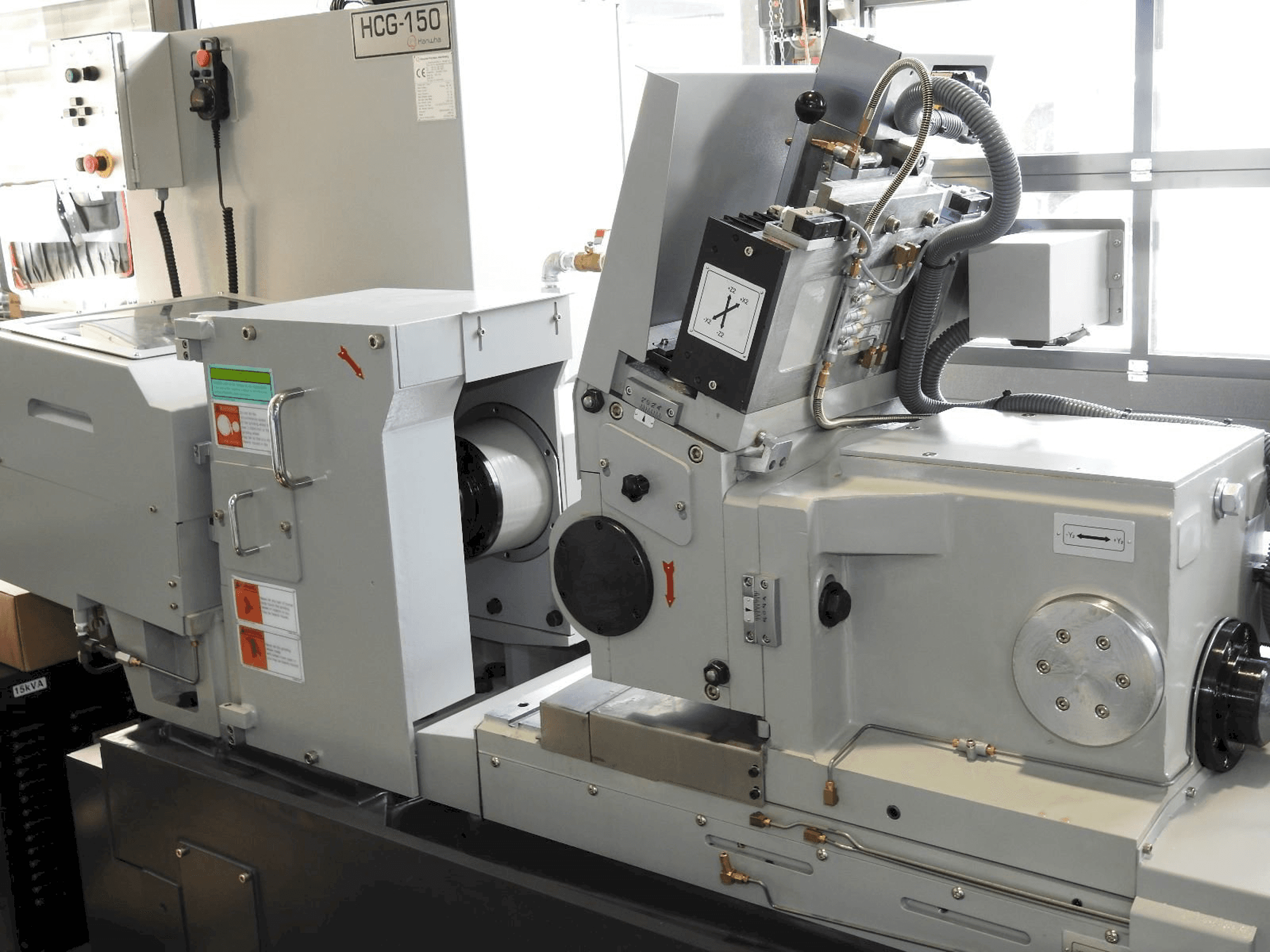

Hanwha HCG 150 Grinding machine

Show in original language

This Hanwha HCG 150 Grinding machine was manufactured in the year 2019. It is equipped with a Fanuc control unit. The machine has a grinding wheel of 2600 min/m.

Overview

brand: Hanwha
year: 2019
MODEL: HCG 150
application type: Grinding
Location: Germany
machine type: Centerless Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - Hanwha HCG 150

General Data

Measurements width: 1450 mm
Measurements depth: 2750 mm
Machine weight: 4000 kg

Control Unit

Brand: FANUC

Main drive

Spindle motor power: 11 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hanwha centerless grinding machine hcg-150cnc
- - Optimized clamping for easy grinding wheel change
- - Double clamping of the regulating wheel for high precision
- - Grinding wheel bearing selectable, hydrodynamic or roller bearing
- - Roller bearing is standard
- - Grinding wheel with roller bearing
- - Grinding wheel dxwxid: [Ø 455 x 150mm x 228. 6mm] grinding wheel: [2600 m/min].
- - Control wheel drive 1. 4 kw (servo motor)
- - Control wheel: [10-300 rpm]
- - Workpiece grinding diameter: [Ø 1. 0mm - Ø 50mm]
Qualitative Machine Benefits:
- - Control wheel: dxbxid: [Ø 305 x 150mm x 177. 8mm]
- - Tool box
- - Disk changing unit
- - Magnetic separator
- - Grinding wheel dressing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
