Hanwha XD 20 N Lathe

Show in original language

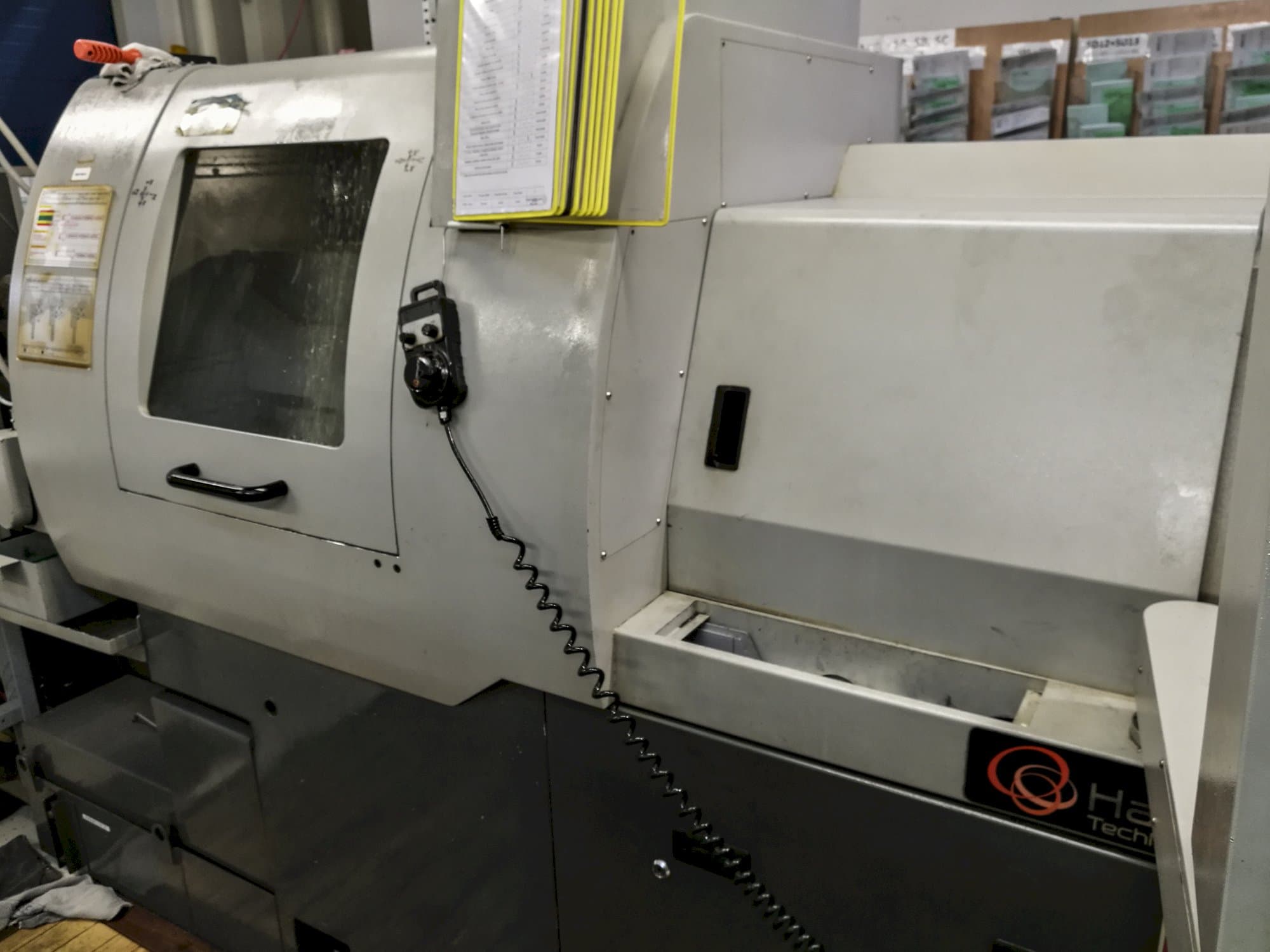

This Hanwha XD 20 N Lathe, which was manufactured in South Korea, has an overall production time of approximately 30000 working hours. This model is operated through a FANUC Series 18i-TB Control unit and allows simultaneous axis operation. With a counter spindle, 5 axis, a cross-driven and back tool unit as well as up to 4000 mm of bar length, this highly flexible machine has mainly worked with steel producing bearings during the past. Furthermore this machine was regularly serviced and works with 0.05 mm accuracy.

Overview

brand: Hanwha
year: 2008
MODEL: XD 20 N
production hours: 30000
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Hanwha XD 20 N

General Data

Measurements width: 2258 mm
Measurements depth: 1490 mm
Measurements height: 1758 mm
Machine weight: 3250 kg

Control Unit

Model: Series 18i-TB
CNC main language: Czech
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 8000 1/min

Workpiece

Workpiece drm: 20 mm

Turret

Number of turrets: 2

Media

Chip conveyor: Yes

Additional equipment

- Bar feeder (SMART 316 40 LL)
- 50 Collets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
