HARTFORD PRO1000A

Photo Gallery

HARTFORD - PRO1000ATR-MIL-HAR-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

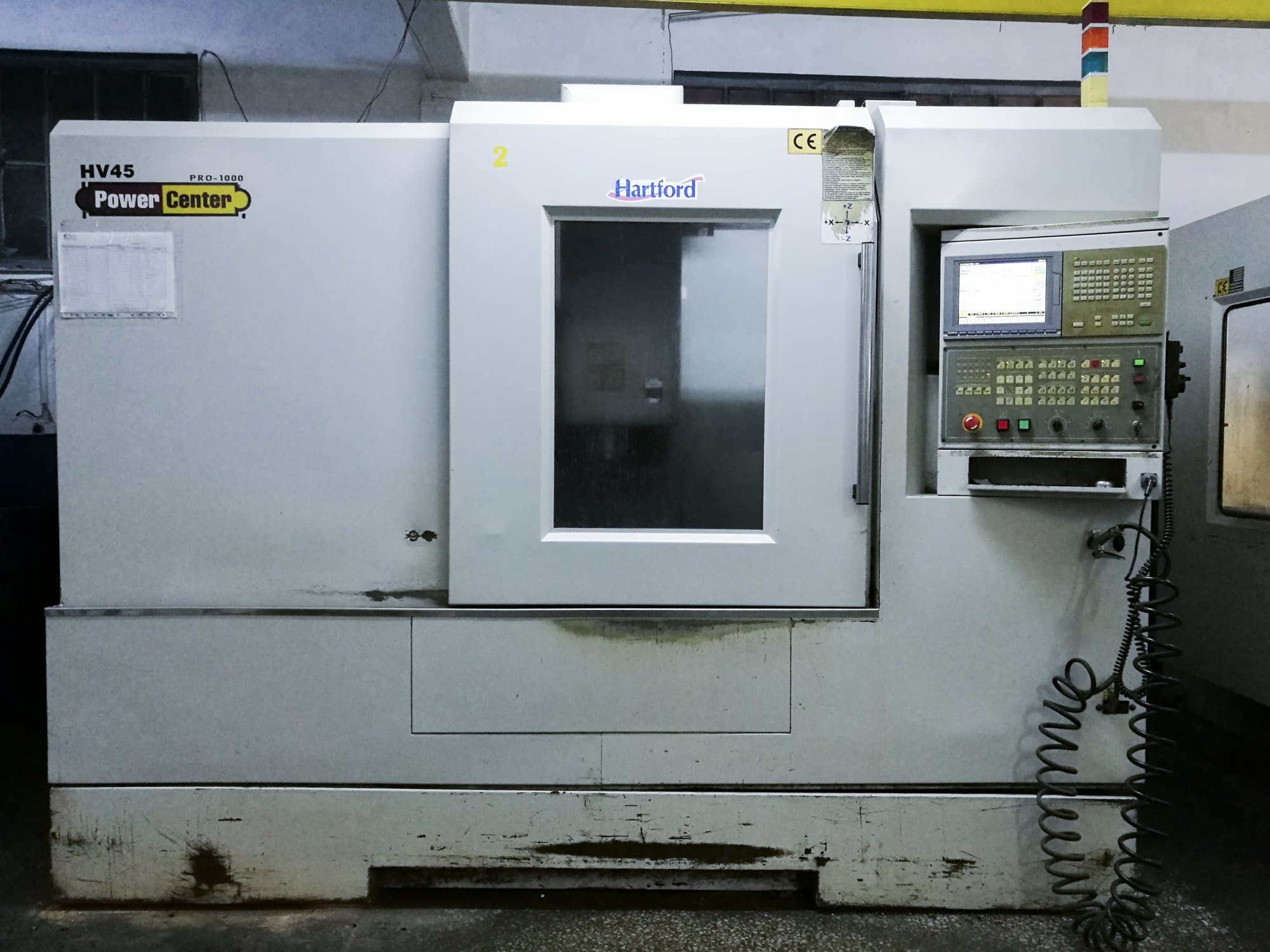

Hartford PRO1000A Machining Center

Show in original language

This Hartford PRO1000A Machining Center from 2006 is especially fit for tool production. Standing in a perfect condition, the equipment is operated through a Mitsubishi Hartrol-M500 Control unit (with RJ45 / RS232 interface) and has a range of movements of 1000, 600 and 600 millimeters (X-Axis, Y-Axis and Z-Axis respectively).

Overview

brand: HARTFORD
year: 2006
MODEL: PRO1000A
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
control unit brand: MITSUBISHI

Technical Information - HARTFORD PRO1000A

General Data

Measurements width: 3065 mm
Measurements depth: 2500 mm
Measurements height: 2500 mm
Machine weight: 5800 kg

Control Unit

Model: Hartol-M500
Interface: RJ45, RS232
Remote control: Yes
Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 0-8000 1/min
Tool taper: BT-40

Movement

X-AXIS Movement: 1000 mm
X-AXIS Working Feed: 0-12000 mm/min
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 0-12000 mm/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Working Feed: 0-12000 mm/min
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 1150 mm
Outer width: 600 mm
TSlots size: 18 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Max weight: 6 kg
Max tool diameter: 90 mm
Max tool length: 250 mm

Media

Main electronic connection: 200-220 V / 3 P / 50-60 Hz
Power consumption: 19 kVA
Air pressure: 6,5 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
