HEIAN NC 151

Photo Gallery

HEIAN - NC 151FI-MIL-HEI-1994-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

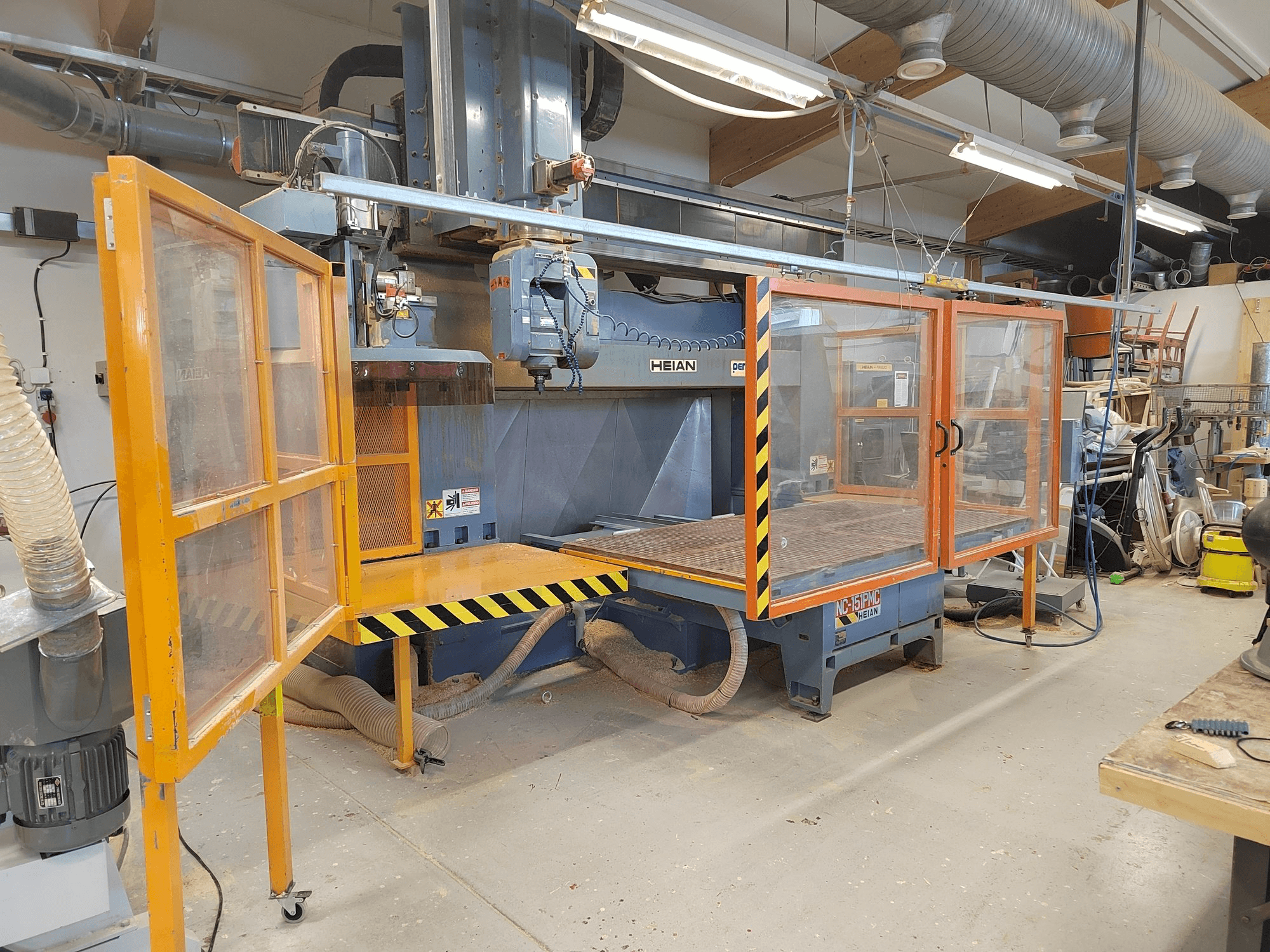

HEIAN NC 151 Vertical machining center

Show in original language

This HEIAN NC 151 Vertical machining center was manufactured in the Japan in the year 1994. This 5 axis machine is operated through a Fanuc Series 15-M control unit . It has a spindle speed range 0 - 18000 rpm. It has a 2500 x 1300 mm table. Machine in very good condition, ready for testing.

Overview

brand: HEIAN
year: 1994
MODEL: NC 151
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - HEIAN NC 151

General Data

Measurements width: 5800 mm
Measurements depth: 2725 mm
Measurements height: 3936 mm
Machine weight: 9000 kg

Control Unit

Model: Series 15-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 0 - 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2750 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 2500 mm
Outer width: 1300 mm

Tools

Slots in storage: 16
Max weight: 4 kg
Max tool diameter: 120 mm
Max tool length: 150 mm
Type of tool holder: MAS BT35

Media

Main electronic connection: 400 V
Power consumption: 50 KVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

In very good condition
Ready for testing

Machine History

End product

Moulds for furniture manufacturing

Material type

Wood

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
