HELLER H 2000

Photo Gallery

HELLER - H 2000IE-MIL-HEL-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

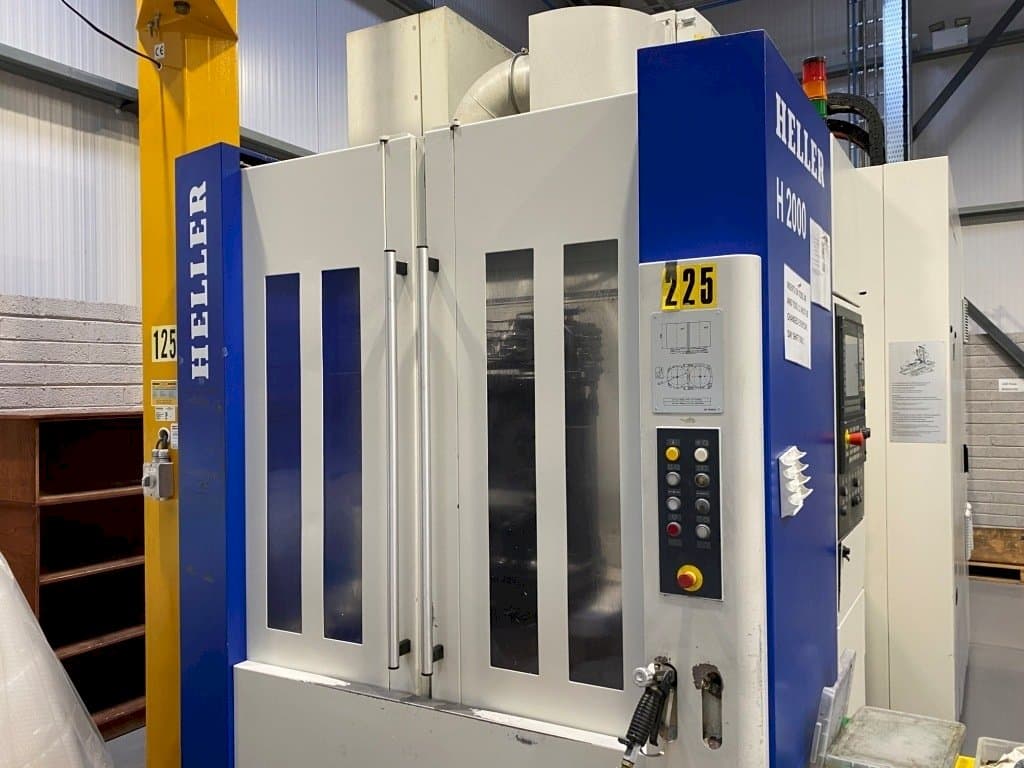

HELLER H 2000 Horizontal machining center

Show in original language

This HELLER H 2000 Horizontal machining center was made in Germany in 2008. It has been on for 60851 hours. It is equipped with a Siemens 840D Solution Line control unit. This 4 axis machine operates with a spindle speed up to 16000 rpm. It comes with 4 pallets, a selection of tool holders and 5 point hydraulic work piece clamping. Very good condition machine.

Overview

brand: HELLER
year: 2008
MODEL: H 2000
production hours: 60851
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER H 2000

General Data

Measurements width: 5800 mm
Measurements depth: 2500 mm
Measurements height: 3100 mm
Machine weight: 10000 KG

Control Unit

Model: 840D Solution Line
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 16000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 630 mm
B-AXIS Movement: 360 Deg 0.001 Deg Rotation

Workpiece

Workpiece drm: 720 mm
Workpiece x: 400 mm
Workpiece y: 500 mm
Workpiece z: 850 mm
Workpiece weight: 800 KG

Table

Outer length: 400 mm
Outer width: 500 mm

Tools

Slots in storage: 80
Max weight: 12 KG
Max tool diameter: 260 mm
Max tool length: 350 mm
Type of tool holder: HSK 63A

Media

Main electronic connection: 3 x 415V / 50Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Selection of Tool Holders
4 Pallets
Mist Extraction Unit
High prerssure coolant unit
Coolant Filtration System
5 Point Hydraulic Work Piece Clamping

Machine Benefits

Qualitative Machine Benefits

Machine manual

Technical Machine Benefits

Hp coolant
Hydraulic workpiece clamping

Machine History

Industries

Medical device industry

End product

Medical device parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
