HERMLE - C 600 UGB-MIL-HER-1999-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

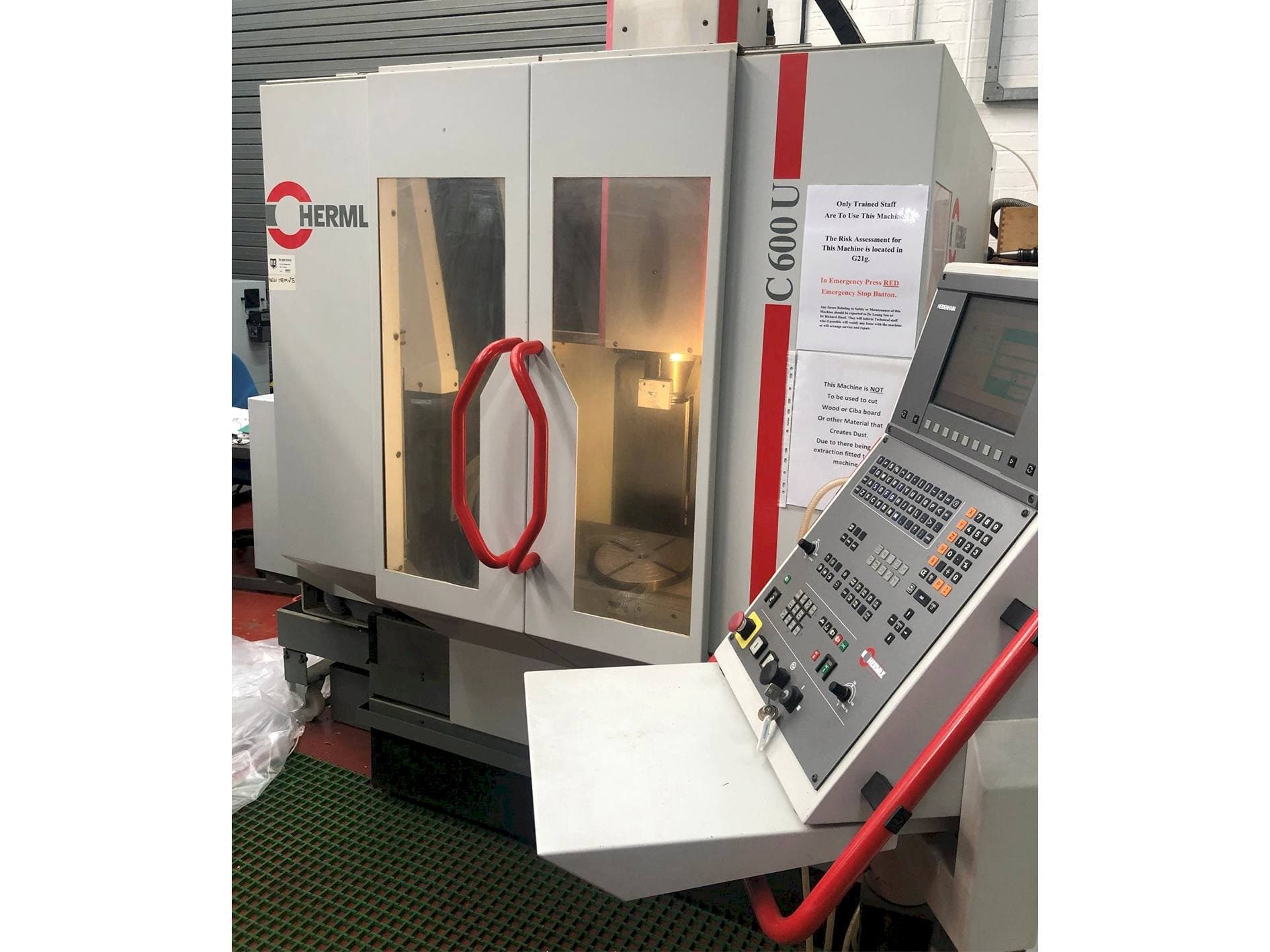

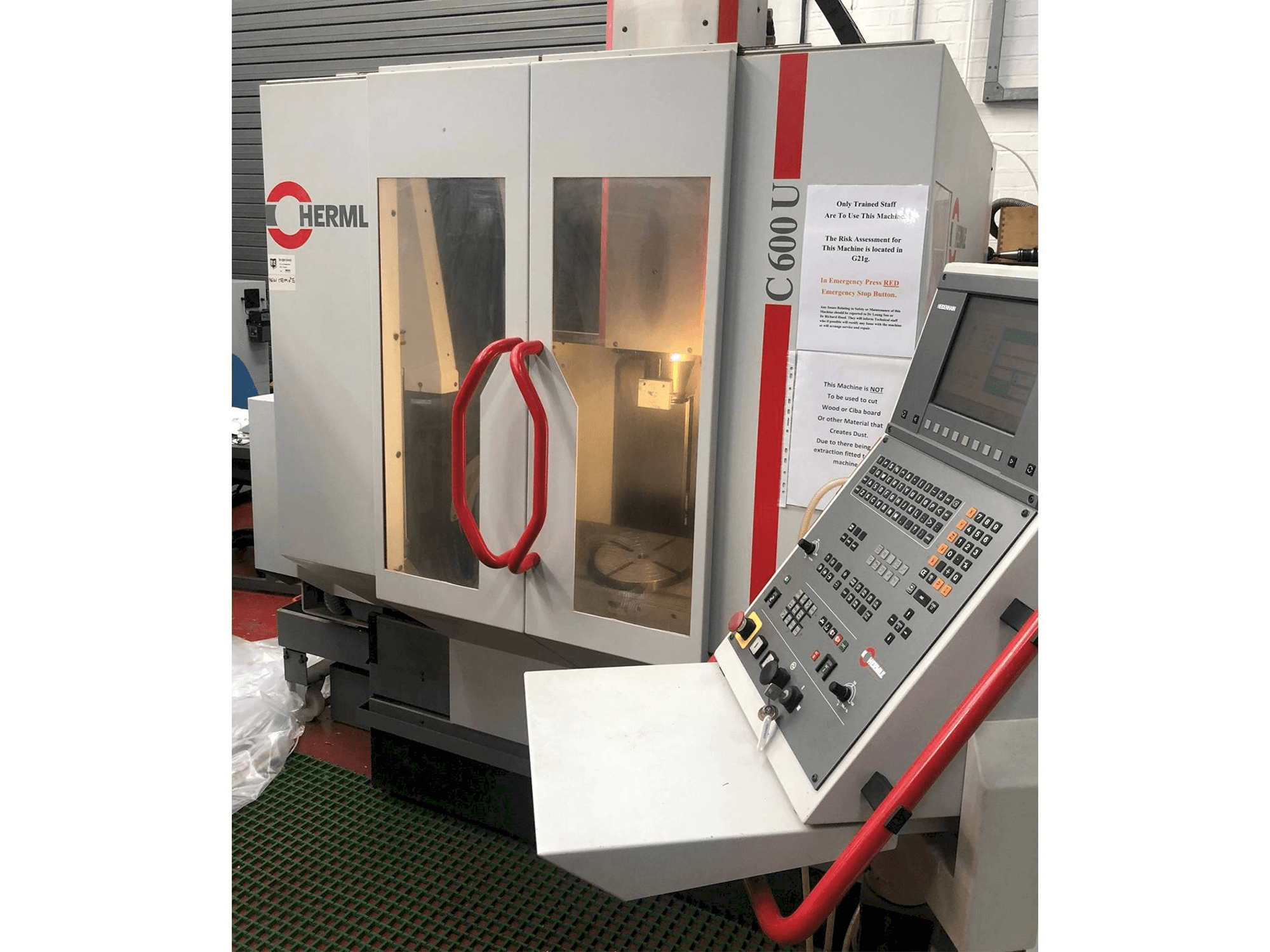

- HERMLE C 600 U Vertical Machining Center.
This HERMLE C 600 U Vertical Machining Center was manufactured in 1999 in Germany. This 5 axis machine has 16483 production hours of which 1525 are spindle hours. It is equipped with a Heidenhain iTNC 426 control unit and can work with a spindle speed up to 12000 rpm. Machine in very good condition with low hours.
Overview
- brand: HERMLE
- year: 1999
- MODEL: C 600 U
- production hours: 16483
- application type: Milling
- Location: United Kingdom
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C 600 U
General Data
- Measurements width: 2594 mm
- Measurements depth: 2490 mm
- Measurements height: 2750 mm
- Machine weight: 6700 kg
Control Unit
- Model: iTNC 426
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 450 mm
Workpiece
- Workpiece weight: 100 kg
Tools
- Slots in storage: 30
- Max tool diameter: 80/125 mm
- Max tool length: 250 mm
- Type of tool holder: DIN 40
Media
- Chip conveyor: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition with low hours
- Machine from a university, never worked in a factory
Technical Machine Benefits
- C axis 0. 001 degrees (360 degree full rotation)
- A axis -/+ 110 degrees
- Table diameter 280 mm
- Rapid feedrate 30 m/min.
- Max & min distance from table to spindle 40 - 450mm
- Spindle motor power 7kw
- Coolant
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
