HERMLE - RS1 Robot SystemDE-MIL-HER-2009-00004
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- System by 2 Hermle C40 U vertical machine center

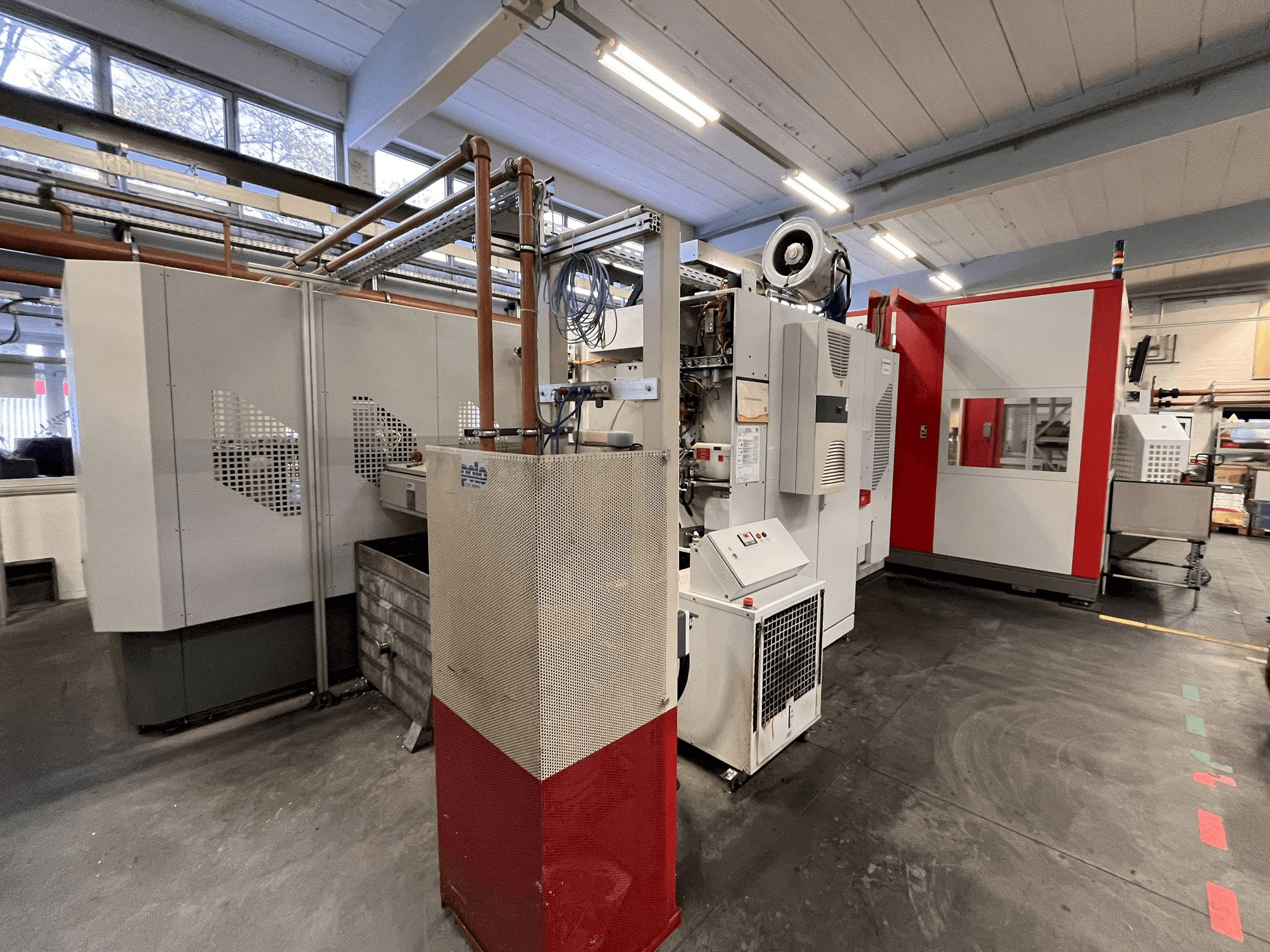

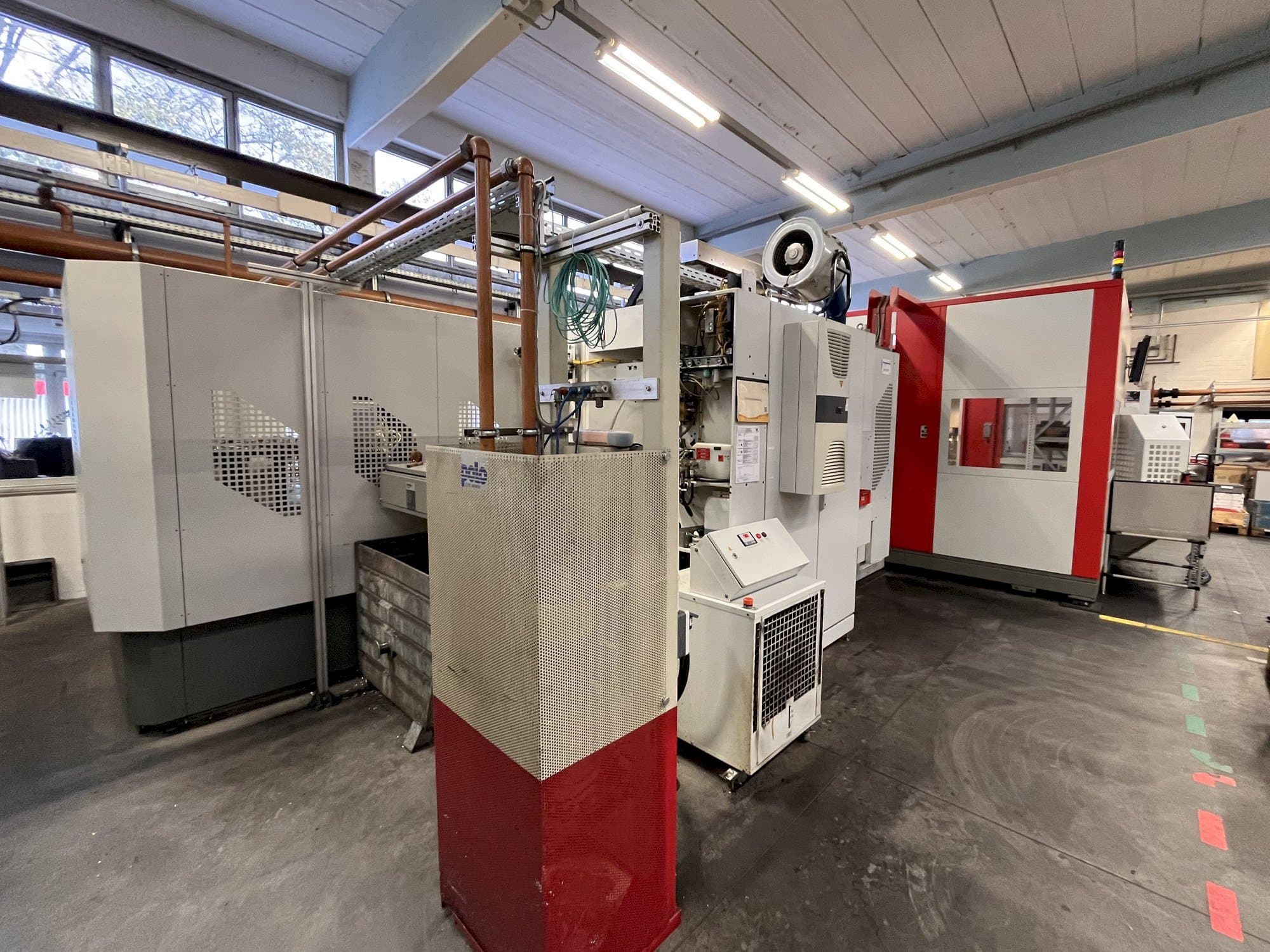

This HERMLE RS1 Robot System consists of 2 Hermle C40 U vertical machine center made in the year 2009 are equipped with a HERMLE C40 U control unit and has a spindle speed of 18000 rpm. The system comes with an Automation KUKA KR 150-2 2000 Robot built in 2008 that has 6 axes with a maximum pallet weight of 140 kg.
Overview
- brand: HERMLE
- year: 2009
- MODEL: RS1 Robot System
- production hours: 22400
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE RS1 Robot System
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: ITNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 850 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 38
- Spindle Speed: 18000 RPM
Additional Information
Additional equipment
- The cell comes with 10 pallets without vise, 1 pallet on each machine and 8 on the automation
Machine Benefits
Qualitative Machine Benefits
- Raw material storage locations, 2x raw material storage areas for cubic parts, 60 spaces available per storage area. Raw material with the dimensions 50x15 can be loaded, 2x raw material trays for cylindrical parts, 56 places available per tray. Parts with a 6mm spigot can be loaded
- 2x additional gripper: 1x for cylindrical, 1x for cubic parts
- Kuka with 6 axes with a maximum pallet weight of 140 kg
- Kuka manual control unit raw material loading via external set-up station
- Pallet rack 300x300 with 24 places - 22 of which are pallets in the rack, 3 of which are power clamping blocks for clamping automatic clamps, 2 cubic, 1x cylindrical
- Master computer runs on windows 10, soflex pcs runs on windows xp
- Soflex order management version 4. 27
Technical Machine Benefits
- Feed rate: 45000 mm/min, chip conveyor
- Scraper conveyor without ikz
- Blow-off device, blowing outlet through the center of the spindle
- Manual cabin roof, automatic cabin door
- Polycarbonate safety windows, bed flushing, air purge for scales, status light
- Electr. Heat compensation itnc, electric manual control module itnc, blum roll breakage/measurement a3
- Commissioning/magazine, measuring probe: renishaw omp 40-2l
- Robot kuka kr 150-2 2000 (2008):
- Machine weight: 1267 kg, control unit brand: kuka model: kcp2, number of axis: 6
- 1x manual clamping block, pallet rack 400x400 with 18 spaces - of which 17 pallets are in the rack
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
