HITACHI SEIKI HG 630 Horizontal Machining Center

Show in original language

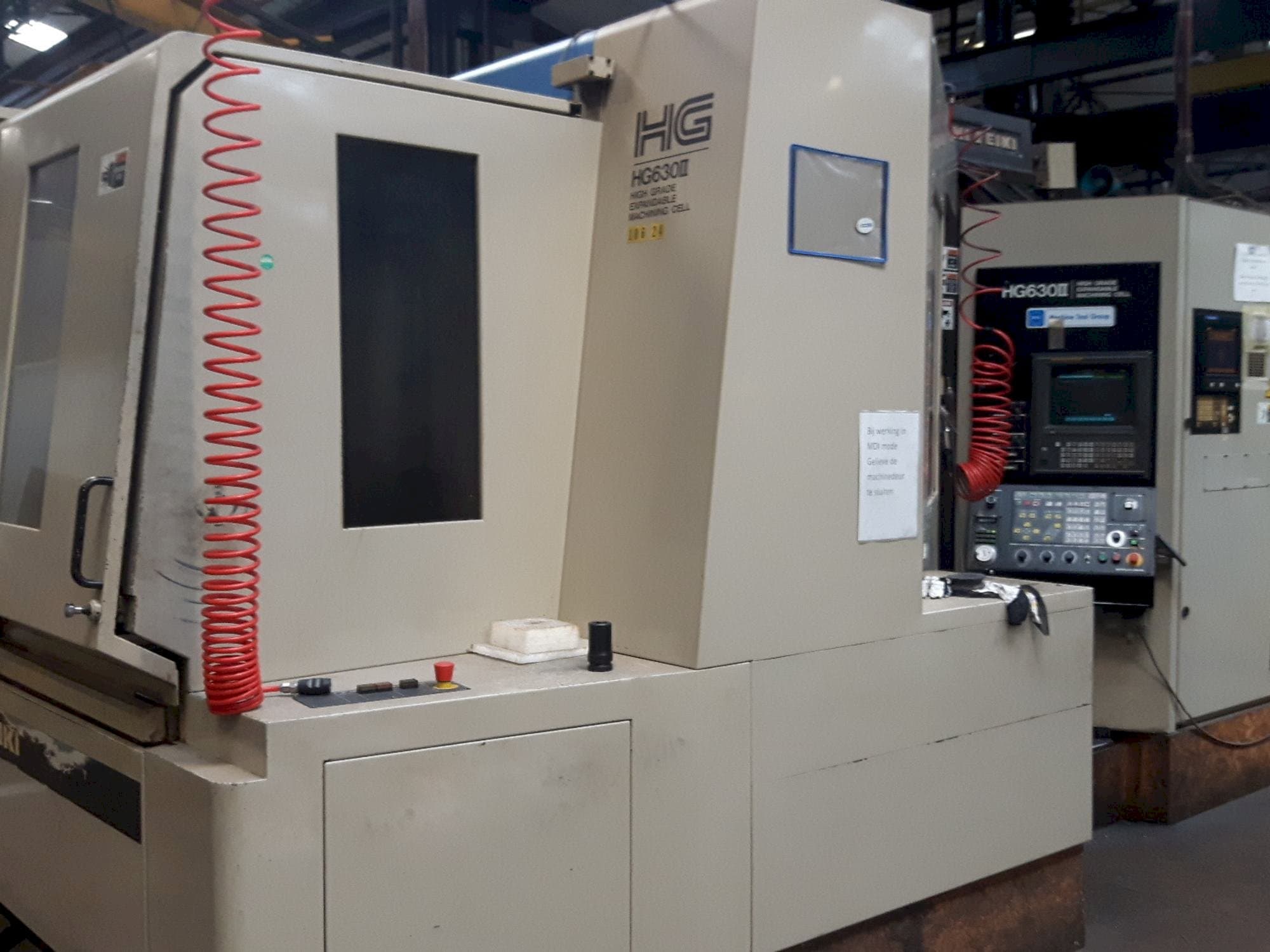

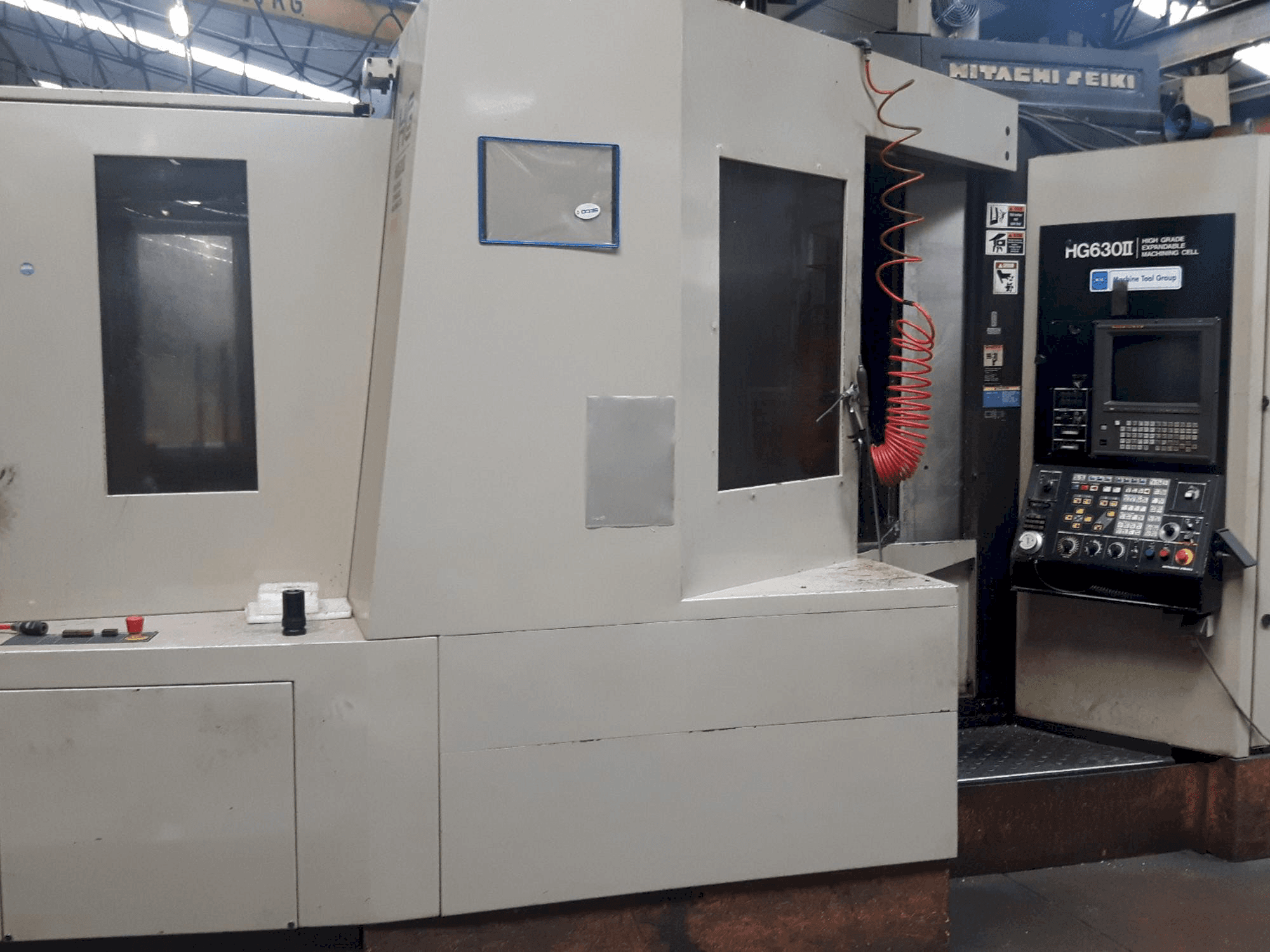

This HITACHI SEIKI HG 630 Horizontal Machining Center, made in Japan in 1998, is operated through a FANUC 15MB control unit. This model counts with a spindle speed of 16000 rpm, it has 120 slots in storage as well. It presents very good conditions, as it has been regularly serviced.

Overview

brand: HITACHI SEIKI
year: 1998
MODEL: HG 630
production hours: 40000
application type: Milling
Location: Belgium
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HITACHI SEIKI HG 630

General Data

Machine weight: 14000 kg

Control Unit

Model: 15MB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 16000 rpm 1/MIN

Movement

X-AXIS Movement: 950 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 760 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 630 mm
Outer width: 630 mm

Tools

Slots in storage: 120
Max weight: 20 kg
Max tool diameter: 110/245 mm
Max tool length: 400 mm
Type of tool holder: ISO 50

Media

Main electronic connection: 380 V

Additional Information

Machine history

End product: Machinery parts
Industries: Machinery building

Machine Benefits

Technical Machine Benefits:
- - External and internal through spindle 15bar
- - Chip to chip time : 7 sec
- - Feeds: rapid x - y - z: 24m/min
- - Pallet index positions: 360* 1degree
- - Spindel: speeds – power- torque : 80-2930 rpm - 15/11kw – 391 nm
- - 2 pallets
Qualitative Machine Benefits:
- - Regularly maintained machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
