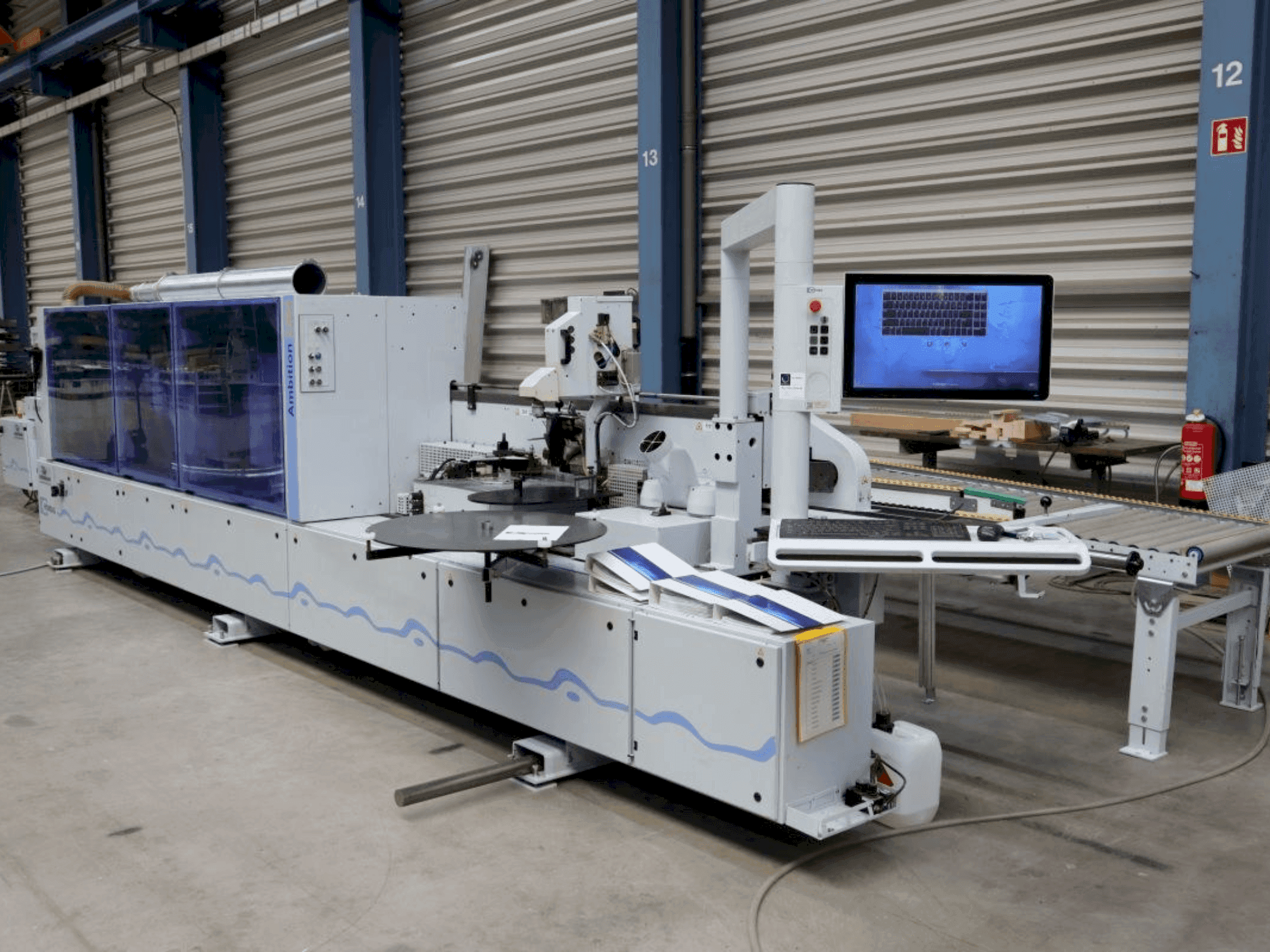

HOMAG - KAL 210DE-WOO-HOM-2014-00001

Additional equipment

• - Comprehensive edge banding and finishing units
• - Workpiece returning system by LIGMATECH
• - Separating agent spray unit top/bottom
• - Joining milling unit 2 motors each 3 kW, 150 Hz, 9000 rpm
• - Gluing unit A20 with 2 rollers consisting of: - Workpiece preheating - hot-melt adhesive unit
• - Melting unit with Basic granulate container
• - Melting capacity 6 - 12 kg/h, depending on the adhesive used
• - Order unit QA65
• - Application unit PU65 (exchangeable)
• - Remote control for setup mode

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Feed speed: 18 - 25 m/min
  • - Pneumatic connection 6 bar
  • - Workpiece thickness 8 - 60 mm
  • - Edge height max. = workpiece thickness + 4 mm
  • - Edge material roll 0. 3 - 3 mm
  • - Edge material strips 0. 4 - 20 mm
• Qualitative Machine Benefits:
  • - Designed for efficient and precise edge banding operations with extensive automation features.

Extra information

• - Machine still under power
