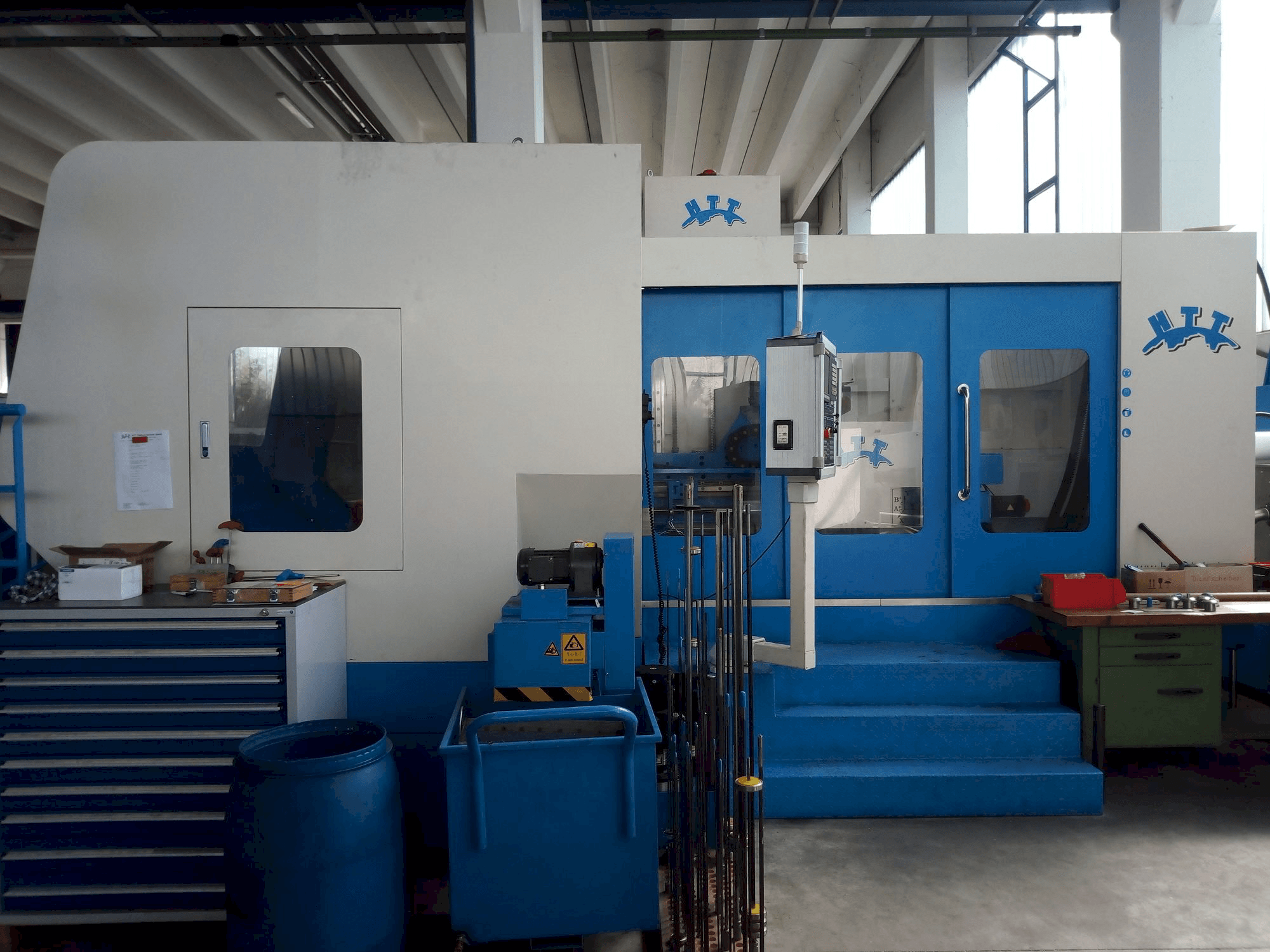

This HTT KBR6-1008 Milling Machine was built in 2017. It is equipped with a Fanuc Oi-MD control unit. This machine works with a spindle speed up to 6000 rpm, a drilling depth of 1000 mm in one stoke, and has a table dimension of 1000 x 1000 mm.
Overview
- brand: HTT
- year: 2017
- MODEL: KBR6-1008
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- control unit brand: FANUC
Technical Information - HTT KBR6-1008
Control Unit
- Control Brand: FANUC
- Control Model: Oi-MD
Dimensions
- Machine Depth: 5500 mm
- Machine Height: 3000 mm
- Machine Weight: 9000 kg
- Table Length: 1000 mm
- Table Load: 5000 kg
- Table Width: 1000 mm
Movement
- X-axis Travel: 1000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Additional coolant oil at external device for tools refrigeration
Machine Benefits
Qualitative Machine Benefits
- Completely closed safeguard with sliding doors and removable back cover, easy for machine maintenance
Technical Machine Benefits
- Complete protection safeguard
- Cooling capacity: oil tank 800l, max pressure 100 bar, max flow 85l/min
- Chip conveyor: split the coolant oil of the metal chips, chip trolley
- Tilting column and rotating work table (5 axis)
- 4 liner axis x,y,z,w
- Telescopic covers
- Table controlled with servo system
- External device for tools refrigeration
- 1 piece adapter for gun drilling
- 2 pieces travelling whip guides
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
