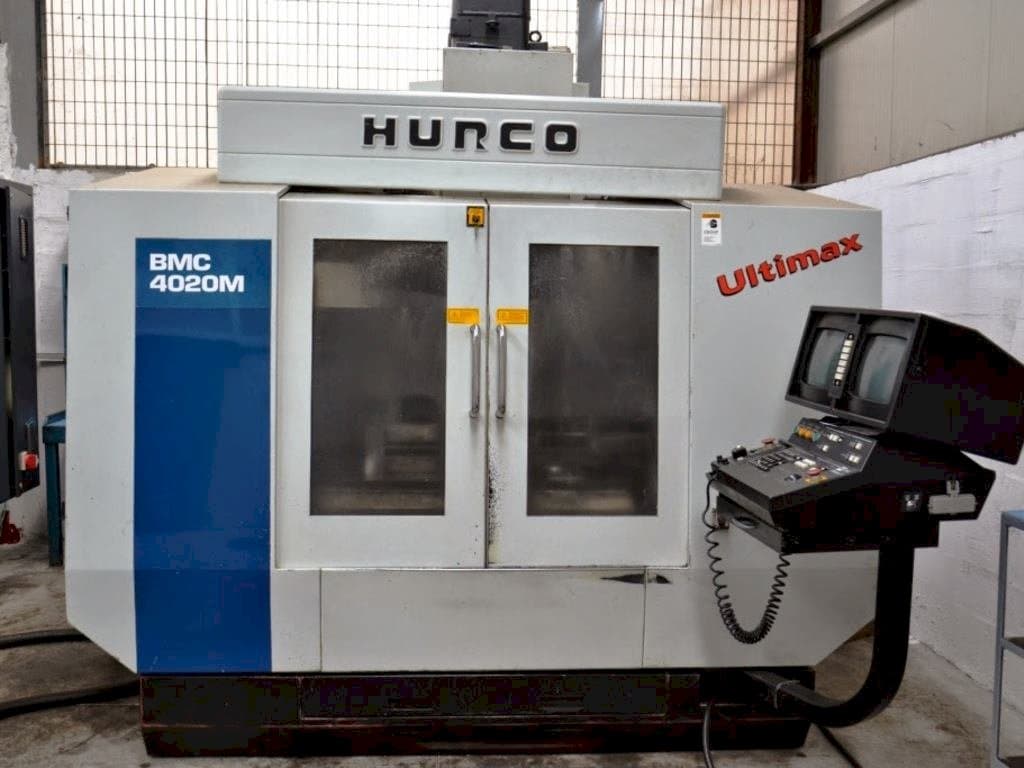

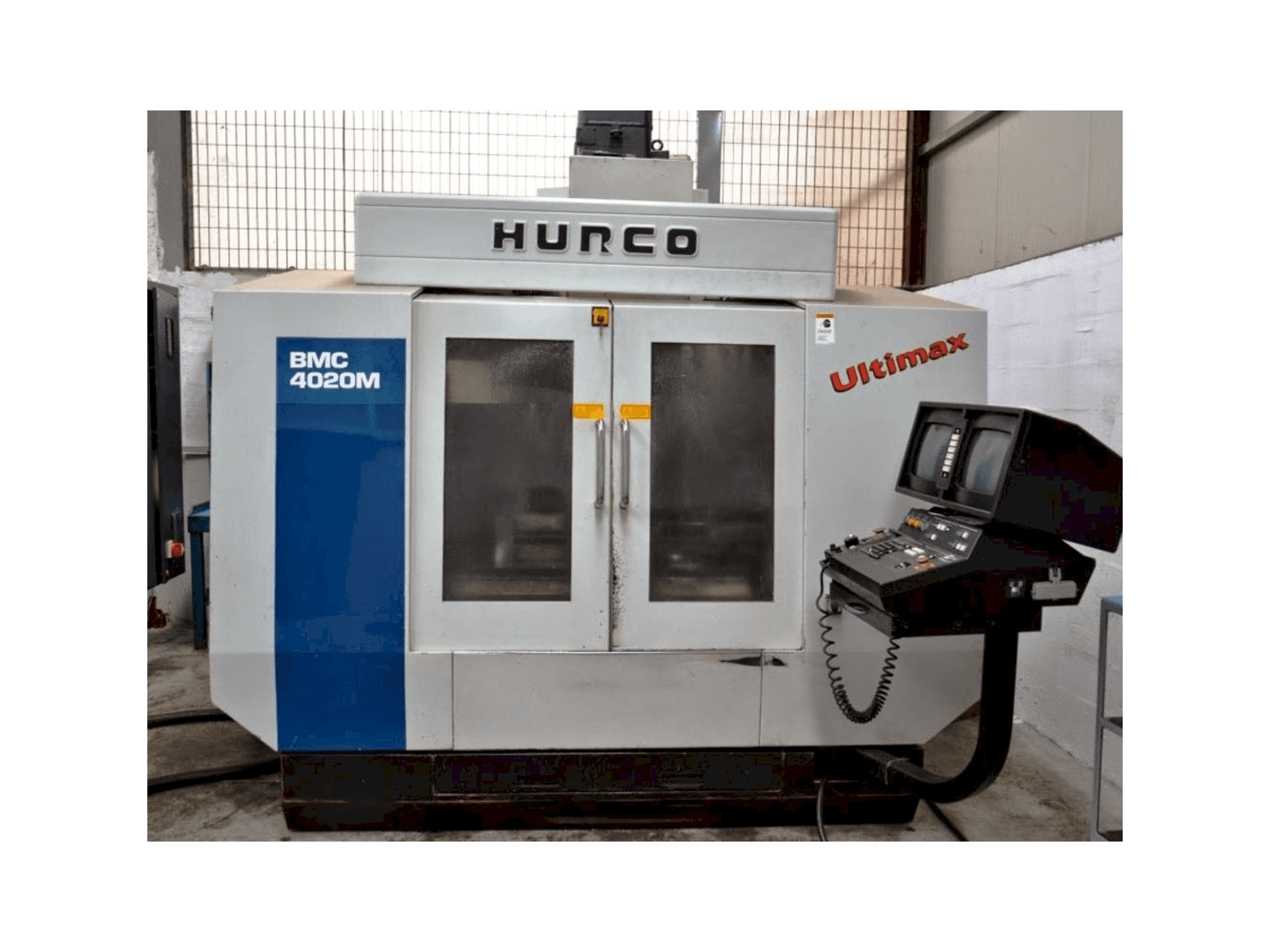

Hurco BMC4020M Vertical Machining Center

Show in original language

This Hurco BMC4020M Vertical Machining Center was made in the year 1998. This machine can work with a spindle speed up to 8000 rpm. It is equipped with a ULTIMAX 4 control unit.

Overview

brand: Hurco
year: 1998
MODEL: BMC4020M
production hours: 0
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Hurco BMC4020M

Control Unit

Model: 4

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 15 kW

Table

Outer length: 1220 mm
Outer width: 510 mm
Table load: 682 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X axis stroke: 1020 mm
- - Y-axis stroke: 510 mm
- - Z axis stroke: 610 mm
- - Number of tools: 24
- - Spindle cone: sk 40
- - Spindle torque 222 nm at 600 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
