Hurco DCX32-5Si

Photo Gallery

Hurco - DCX32-5SiPL-MIL-HUR-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

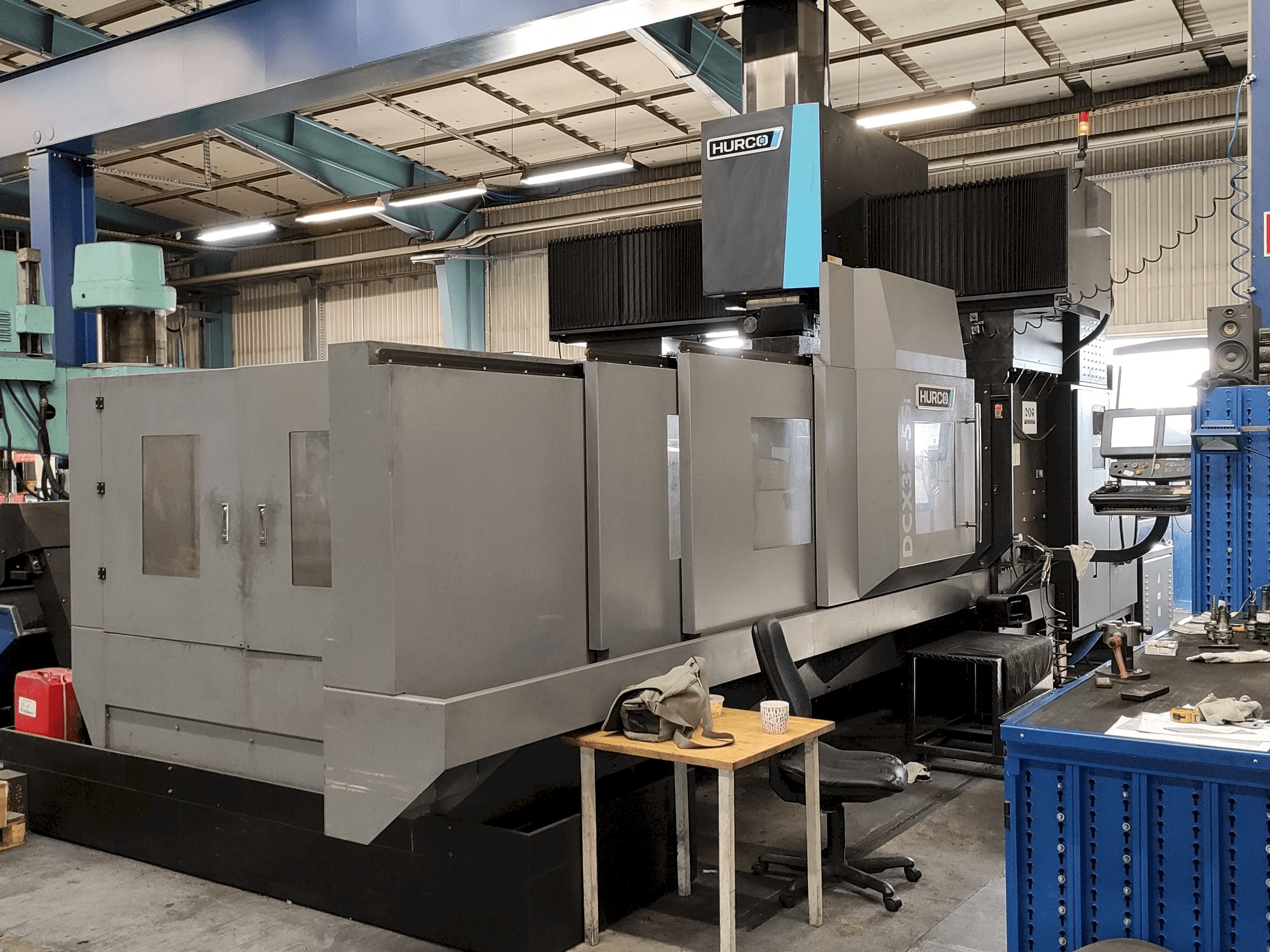

This Hurco DCX32-5Si Dual Column 5 Axis Universal Machining Center was manufactured in 2015 in Taiwan. It has 20554 working hours. This machine is equipped with a control unit of the same brand. It operates with a spindle speed of 18000 rpm. This machine includes a part tool probing. It is in very good working condition and ready for tests. This machine is still in production and comes with its full documentation.

Overview

brand: Hurco
year: 2015
MODEL: DCX32-5Si
production hours: 20554
application type: Milling
Location: Poland
machine type: Universal Machining Centre
control unit brand: HURCO

Technical Information - Hurco DCX32-5Si

General Data

Measurements width: 8229 MM
Measurements depth: 4410 MM
Measurements height: 6364 mm
Machine weight: 37000 KG

Control Unit

Brand: HURCO

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 54 KW
Tool taper: HSK 63 A
Number of axis: 5

Movement

X-AXIS Movement: 3200 MM
Y-AXIS Movement: 2000 MM
Z-AXIS Movement: 900 mm

Table

Min distance between vertical spindle and table: 65 MM
Max distance between vertical spindle and table: 965 mm
Table load: 11000 kg

Tools

Number of stations: 40 pcs
Max weight: 7 kg
Max tool diameter: 75-120 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 138 kVA

Additional Information

Additional equipment

part tool probing

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition and ready for tests.
It is still at the production.
Full documentation available.

Technical Machine Benefits

Travels axis (b/c) : ±105 deg / ±185 deg
Working surface / rotary diameter : 3000 x 1700 mm
Spindle torque 85 nm
Automatic tool changer (atc); atc time (tool to tool ): 5 sek
Working feed: 15000 mm/min
