Hurco TM8i

Photo Gallery

Hurco - TM8iSI-TUR-HUR-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

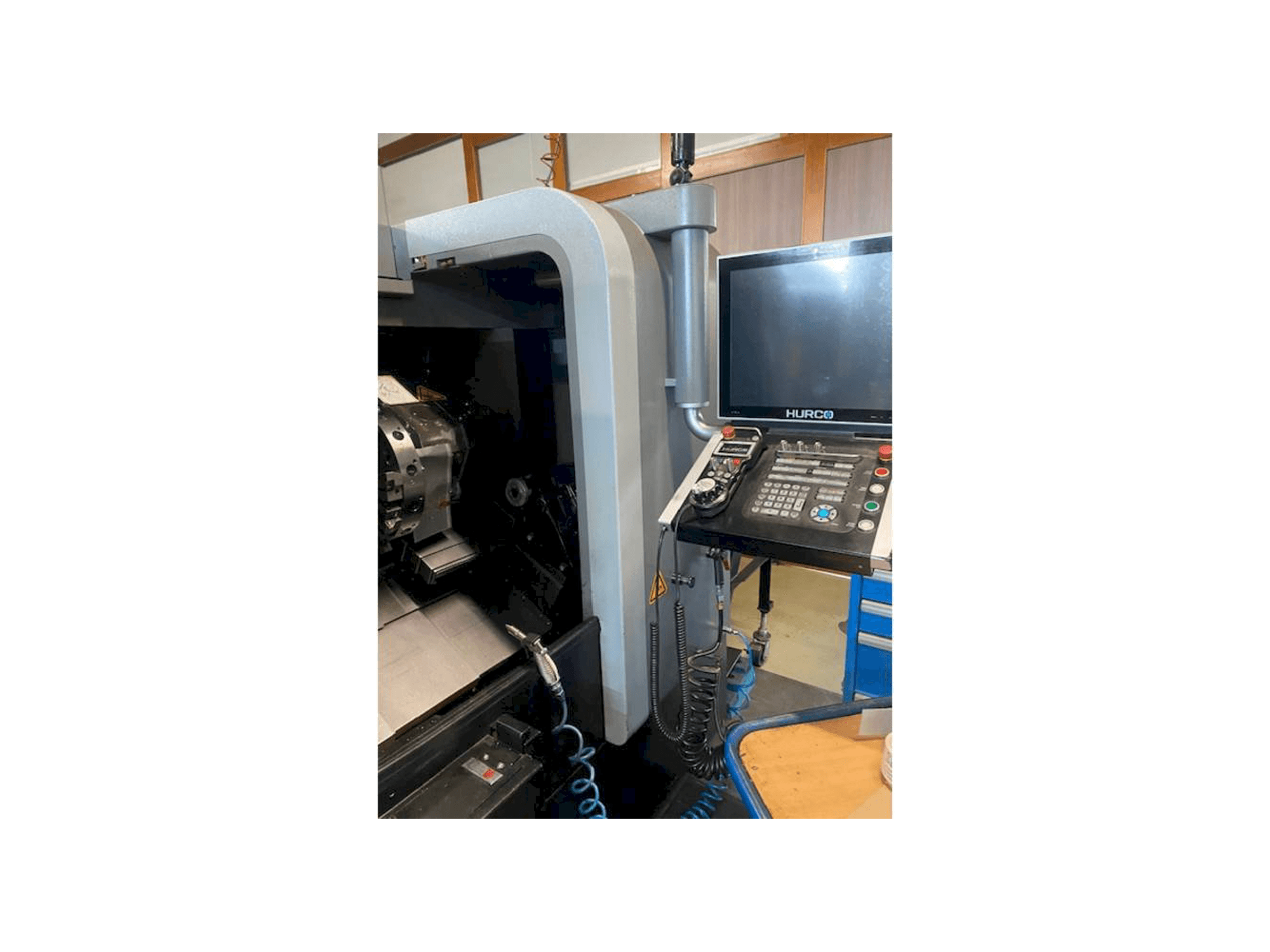

This Hurco TM8i Lathe was manufactured in the year 2018 and has 7006 production hours, of which 1696 spindle hours. It is equipped with a HURCO control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: Hurco
year: 2018
MODEL: TM8i
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: HURCO

Technical Information - Hurco TM8i

General Data

Measurements width: 4489 mm
Measurements depth: 2729 mm
Measurements height: 2193 mm
Machine weight: 4050 kg

Control Unit

Brand: HURCO

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 23 kW

Movement

X-AXIS Movement: 203 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 30 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter max. (mm): 256
- - Swing over bed diameter (mm): 525
- - Swing over cross slide diameter (mm): 300
- - Spindle torque max: 221 nm
- - Chuck diameter: 210 mm
- - Draw tube diameter : 64. 5 mm
- - Type: vdi 30
- - Stations: 12
- - Boring bar diameter max. : 32 mm
- - Tool shank width : 19 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
