HURCO VM1 VMC Vertical Machining Center

Show in original language

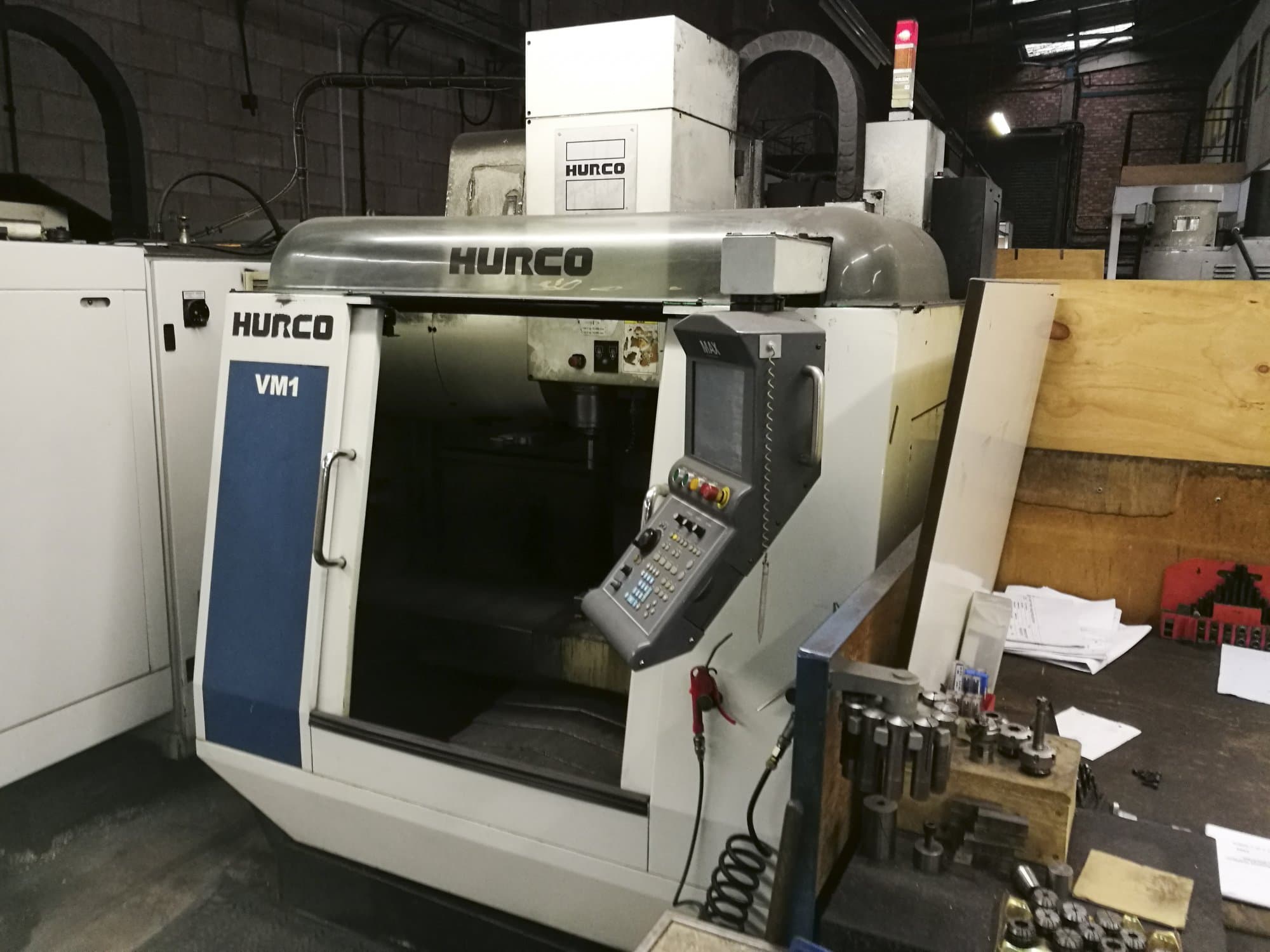

This HURCO VM1 VMC Vertical Machining Center from 2004 is operated through a "Max Control" Control unit. This compact equipment comes with an incorporated chip conveyer and stands out for its 16x tool changer.

Overview

brand: Hurco
year: 2004
MODEL: VM1 VMC
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Hurco VM1 VMC

General Data

Measurements width: 1800 mm
Measurements depth: 1900 mm
Measurements height: 2600 mm
Machine weight: 2700 kg

Control Unit

Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 40-8000 1/min
Spindle motor power: 11 kW
Tool taper: 40

Movement

X-AXIS Movement: 660 mm
X-AXIS Working Feed: 8 m
X-AXIS Rapid traverse: 20 m
X-AXIS Accuracy: 0.005
Y-AXIS Movement: 350 mm
Y-AXIS Working Feed: 8 m
Y-AXIS Rapid traverse: 20 m
Y-AXIS Accuracy: 0.005
Z-AXIS Movement: 450 mm
Z-AXIS Working Feed: 8 m
Z-AXIS Rapid traverse: 20 m
Z-AXIS Accuracy: 0.005

Workpiece

Workpiece weight: 350 kg

Table

Outer length: 762 mm
Outer width: 356 mm

Tools

Slots in storage: 16

Media

Main electronic connection: 240 V / 60 Hz
Power consumption: 13 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
