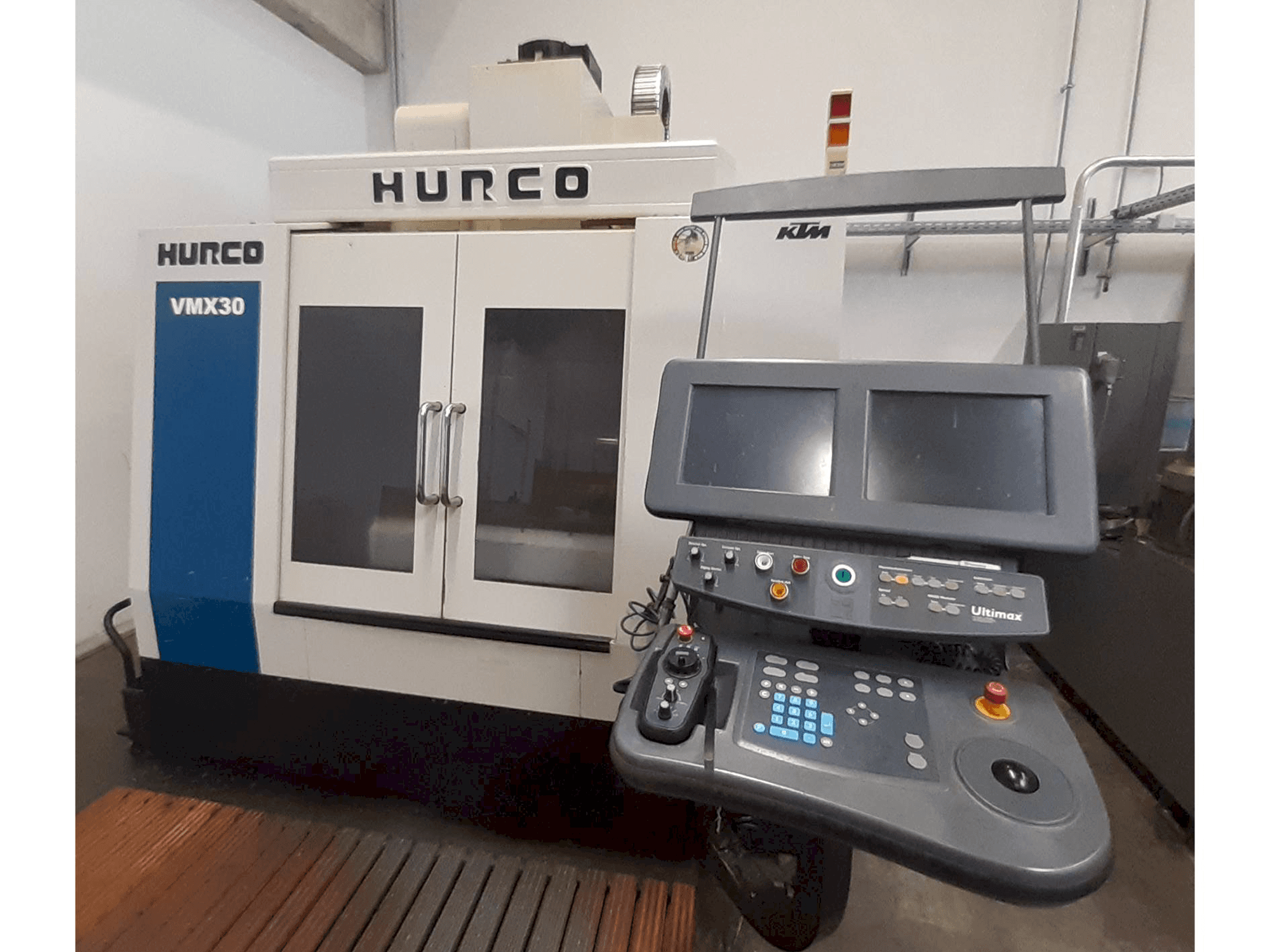

Hurco VMX 30 Vertical Machining Center was manufactured in Taiwan in 2003.

Show in original language

This Hurco VMX 30 Vertical Machining Center was manufactured in Taiwan in 2003. It has been working for 1648 hours. This 3 axis machine is operated through an Ultimaxx control unit. It works with a spindle speed up to 10000 rpm.

Overview

brand: Hurco
year: 2003
MODEL: VMX 30
production hours: 1648
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Hurco VMX 30

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 30 m/Min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 30 m/Min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 30 m/Min

Table

Outer length: 1020 mm
Outer width: 510 mm
Table load: 750 kg

Tools

Number of stations: 24
Slots in storage: 6
Type of tool holder: DIN 650

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Central processor working memory (ram) data carrier: pentium
- - Floppy disks: 64 mb, optional 128 mb
- - Hard disk: 3,5“ disketten mit 1,44 mb, dos-kompatibel 1,6 gb
- - Programming format: hurco dialog format und nc
- - Transmission rate (baud rate): 115. 200 bei nc
- - Screens: 2 x 12“
- - Interfaces: 2 x serielle (rs-232)
- - Number of nc axes: 3 (x,y,z) – option 4 (a) + 5 (b) **
- - System resolution x,- y-, z-axis: 0,0005 mm
- - System resolution a and b axis: 0. 0001°
Qualitative Machine Benefits:
- - Program resolution x, y, z axis: 0,001 mm
- - Program resolution a and b axis: 0. 002°
- - Programmable in dialog format: 3,0 - 7600 mm/min
- - About potentiometers: 3,0 – 11400 mm/min
- - Spindle nose clamping table: 152 – 762 mm
- - Clamping slots: 18 mm

Extra information

- Additional oil separator

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
